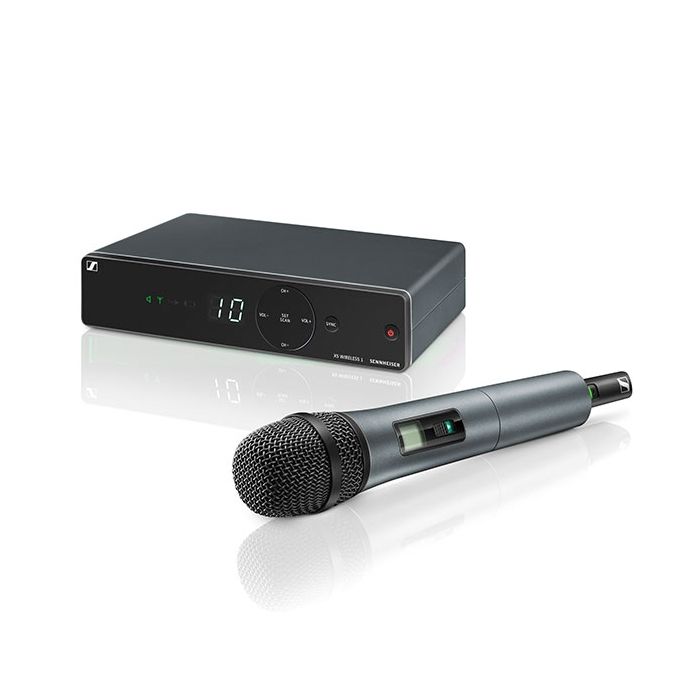

Sennheiser XSW 1-825-GB Wireless Handheld Vocal Set

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules e825
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

• Dimensions: approx. 200 x 42 x 127 mm
• THD, total harmonic distortion: ≤ 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Dynamic range: dynamic
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range: GB: 606-630 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

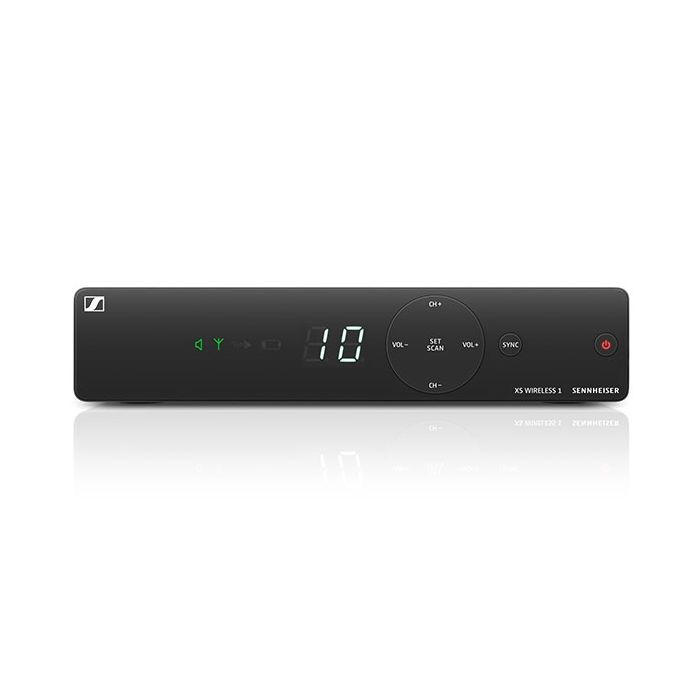

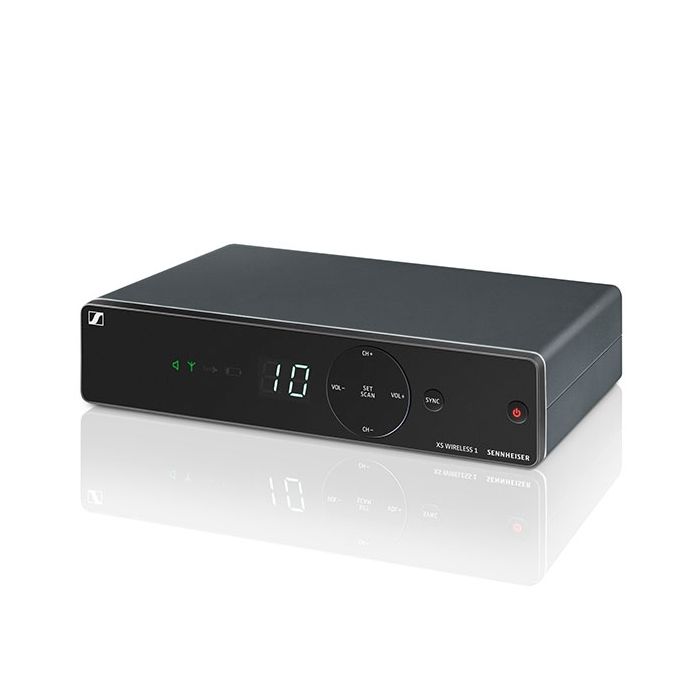

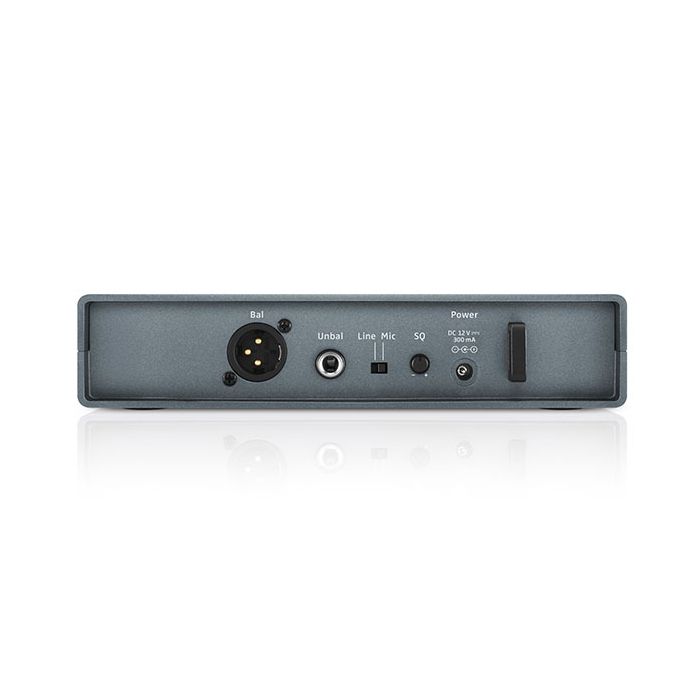

Receivers

• Weight: approx. 340g
• Power supply: Receiver: 12 V DC nom. / 300 mA
• AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)

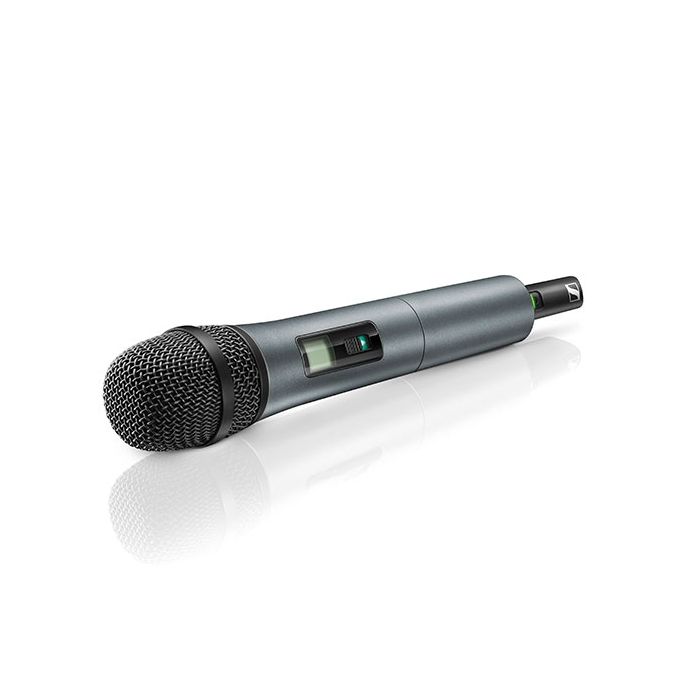

Microphone

• Weight: approx. 245g
• Power supply Microphone: 2 AA size batteries, 1.5 V
• AF frequency response: SKM 825: 80-14,000 Hz

• 1 receiver EM-XSW 1
• 1 handheld transmitter SKM 825-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries
