Sennheiser XSW 1-C|1-GB Wireless Instrument Set

Wireless performance set for guitarists & bassists (GB Range: 606-630 MHz)

MPN: 506999 SKU: 506999

$179.17

Amplify your tunes. Easy to use all-in-one wireless system for instrumentalists.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 5-7 Days

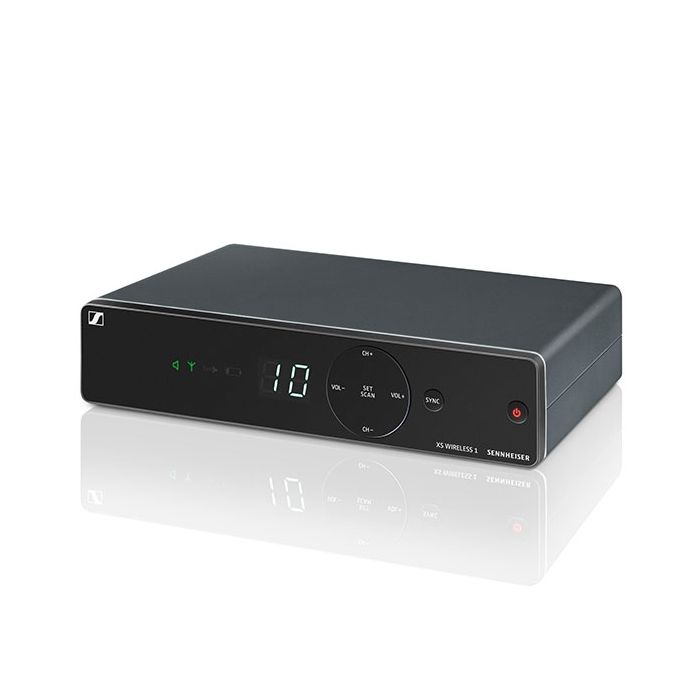

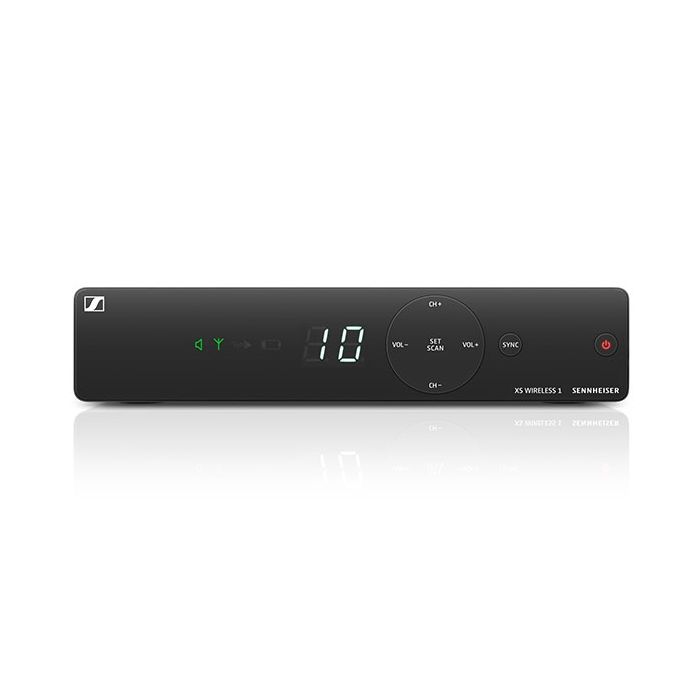

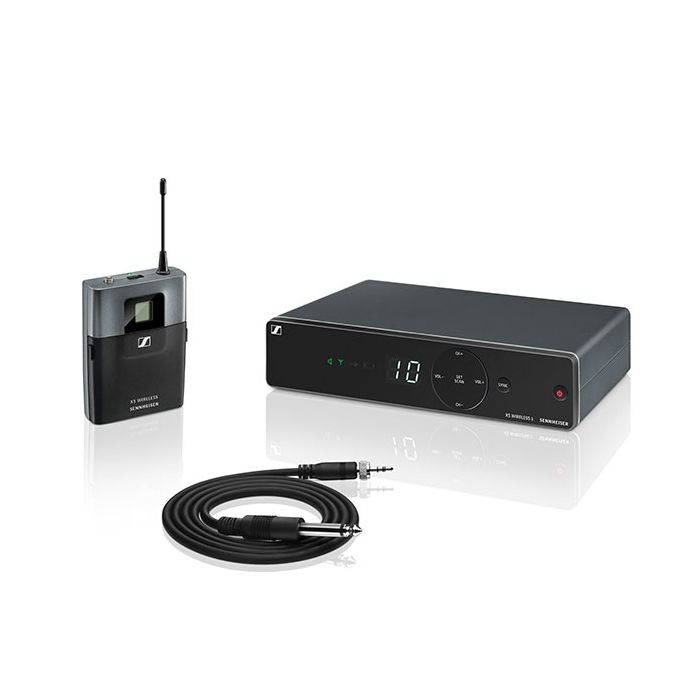

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

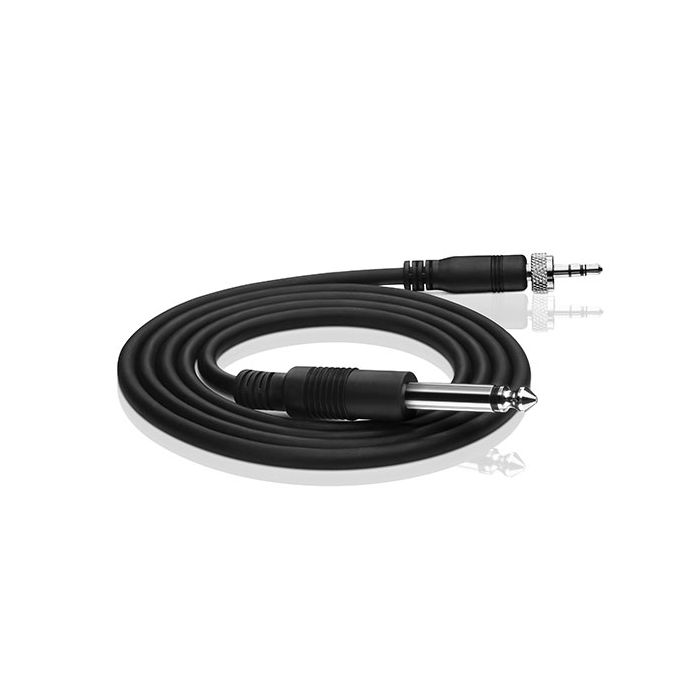

Compact bodypack transmitter, rugged instrument cable
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

Dimensions:

Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mm

THD, total harmonic distortion: ≤ 0.9%
Weight:

approx 340g (receiver)
approx. 95g (transmitter)

Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: Wideband FM
Power supply:
Receiver: 12 V DC nom. / 300 mA
Transmitter: 2 AA size batteries, 1.5 V

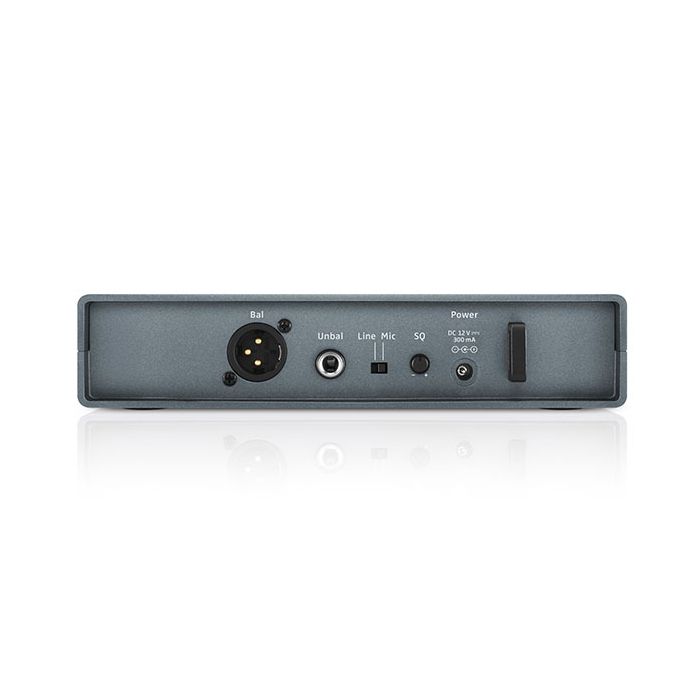

Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: GB: 606-630 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
