Sennheiser XSW 2-C|1-GB Wireless Instrument Set

Wireless performance set for guitarists & bassists (GB Range: 606-630 MHz)

MPN: 507141 SKU: 507141

$270.83

Amplify your tunes. Flexible, rugged, all-in-one wireless system for guitar and bass.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 5-7 Days

Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

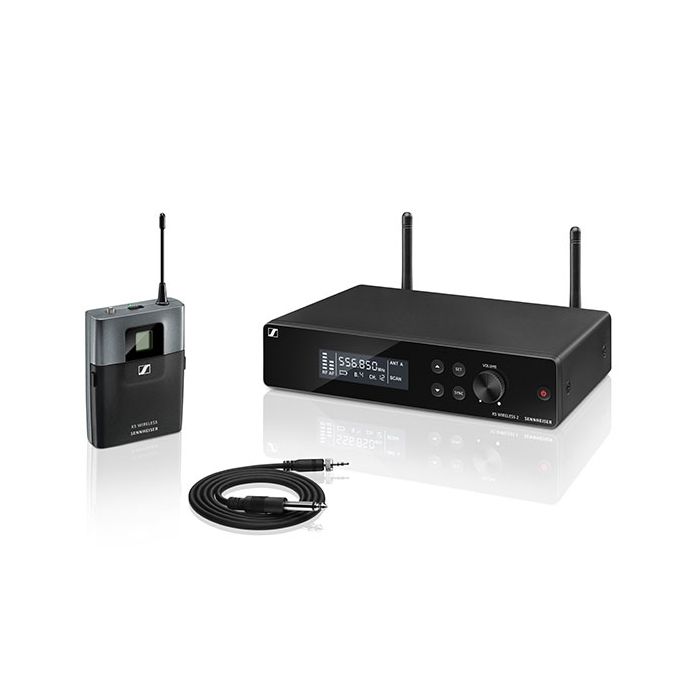

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included.

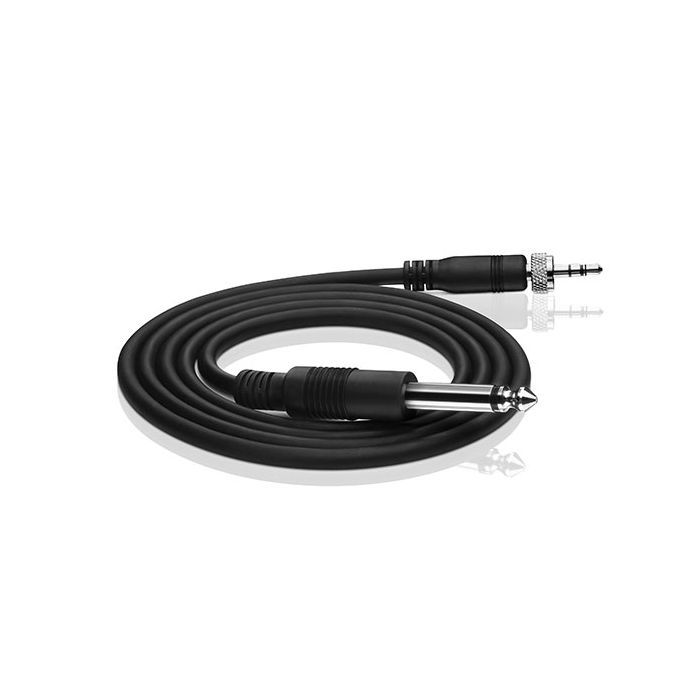

Robust instrument cable and compact bodypack transmitter

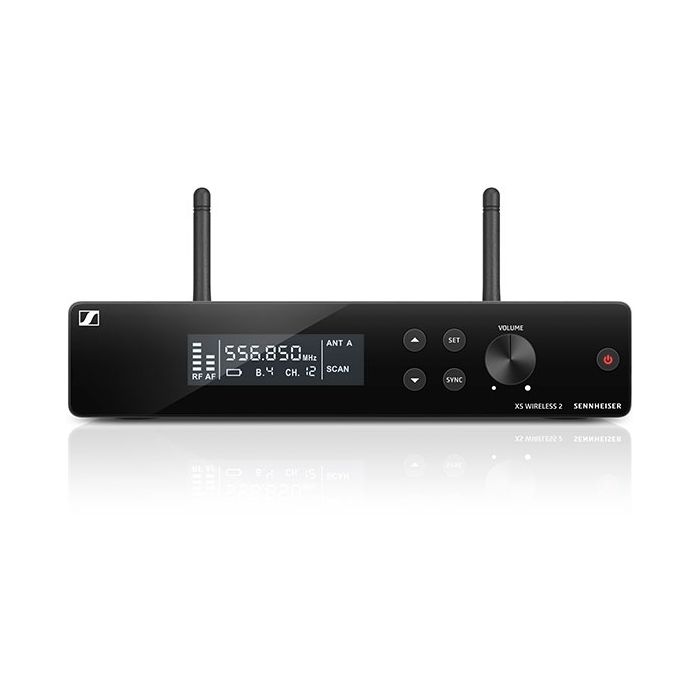

True diversity receiver with metal housing
External antennas
Automatic frequency management and synchronization via remote channel for easy setup
Fully tunable over a wide range of UHF frequencies
Rackmount kit included
Up to 12 compatible channels

Receivers

Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 680g
Power supply: 12 V DC nom. / 300 mA
Housing: metal
AF frequency response: 50 to 16,000 Hz (–3 dB)

Transmitter

Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Housing: robust ABS
AF frequency response: 50-16000Hz

Frequency response: 50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion: ≤ 0.9%
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Modulation: wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception: True Diversity
Frequency: 8 frequency banks, each with up to 12 factory-preset channels
Frequency range: GB: 606-630 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)"
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
