Skaarhoj ETH-B4 Link
Similar to SDI-B4 Link but the data input is via network instead of SDI
SKU: ETH-B4-LINK-V2
Similar to SDI-B4 Link but the data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP (“UDP Camera Control”) and typically served by a SKAARHOJ controller. Has an incredibly light and compact form factor.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-4 days - please contact us for confirmed lead time
Similar to SDI-B4 Link but the data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP (“UDP Camera Control”) and typically served by a SKAARHOJ controller. Has an incredibly light and compact form factor.

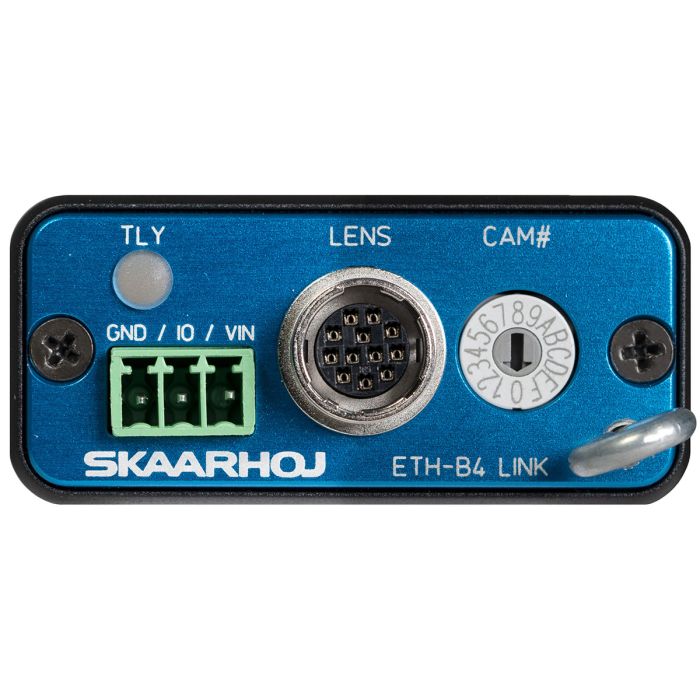

With the SKAARHOJ ETH-B4 Link the iris control data is sent separately from the camera control data over ethernet instead of over SDI. The ETH-B4 Link has a camera selector switch that sets it’s camera ID filter as well as its IP address and the iris data it receives is output on the Hirose-12 connector. It also features a tally lamp (red/green) and a relay output (PGM tally out).
Outstanding differences from previous or similar versions: The ETH B4 Link is a format converter that allows all SKAARHOJ controllers to connect to B4 equipped broadcast lenses
- Hirose 12-pin connector
- Tally on small LED
- Set camera number via selector switch
- Program tally from 3-pin phoenix connector: Ground, IO, 12V (VIN)
- 12V Power Supply
- USB Programming Cable: Type: USB 2.0 A-Micro B, Length: 1m
- Networking Cable: Type: Cat 5e, UTP, Length: 2m
