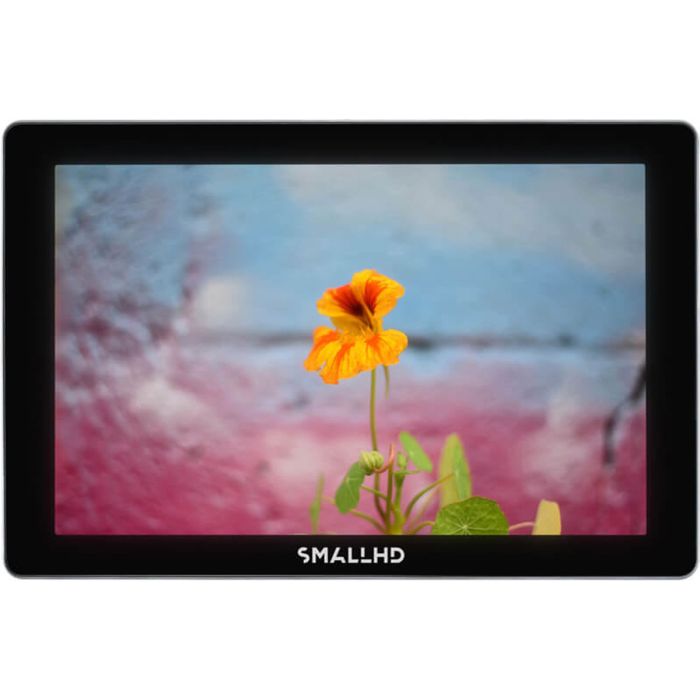

Small HD Indie 7 7-inch Smart Monitor

7-inch Smart Monitor with optional Camera Control for RED DSMC2 & KOMODO

MPN: SHD-MON-INDIE7 SKU: SHD-MON-INDIE-7

$1,345.00

Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. This hyperresponsive touchscreen monitor is powered by the user-customizable PageOS 4 software, with a host of internal imaging assistance tools such as Focus Assist, Exposure Assist, and more. Indie 7 provides a personalized viewing experience designed to improve your workflow. Backed by 1000nits of brightness for daylight visibility. Housed in a lightweight, rugged, and thin aluminum chassis designed for heavy production use.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Call for Lead Time

Upgrade to Camera Control for RED DSMC2 & KOMODO*
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2® & KOMODO™ camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.

*Individual Camera Control software licenses are sold separately.

PageOS 4 Software Toolset
With the power of PageOS 4 software, utilize all of the dependable SmallHD internal toolset features such as customizable frame guides, Focus Assist, Exposure Assist, high-resolution 3D LUT overlays (via Full SD Card slot), histogram, vectorscope, waveform, and Teradek RT Overlays. Learn more about PagesOS 4

Compatible with Bolt RX Monitor Module
Improve your handheld monitoring workflow with this optional hardware addition to your Indie 7 monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m). With 1:1 Pixel Mapping, utilize the added resolution to punch-in and achieve tack-sharp critical focus.

Responsive Touchscreen with Daylight Visibility

Full HD 7-inch IPS LCD with 1920x1200 resolution
10-bit color processing in 100% Rec 709
1000nits of brightness
4K & HDR compatible
160-degree viewing angle

Versatile I/O

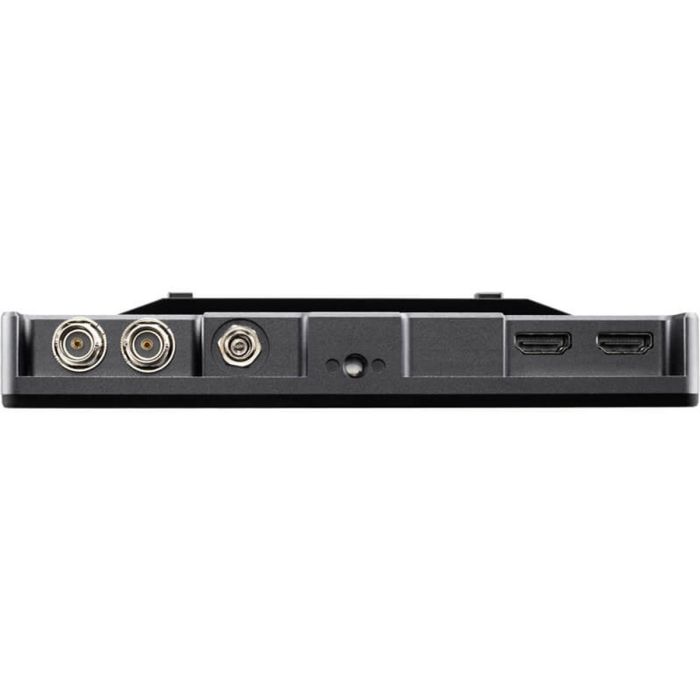

Input: 1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB
Output: 1x 3G-SDI, 1x HDMI 2.0

Power Input Options

2mm barrel connector port

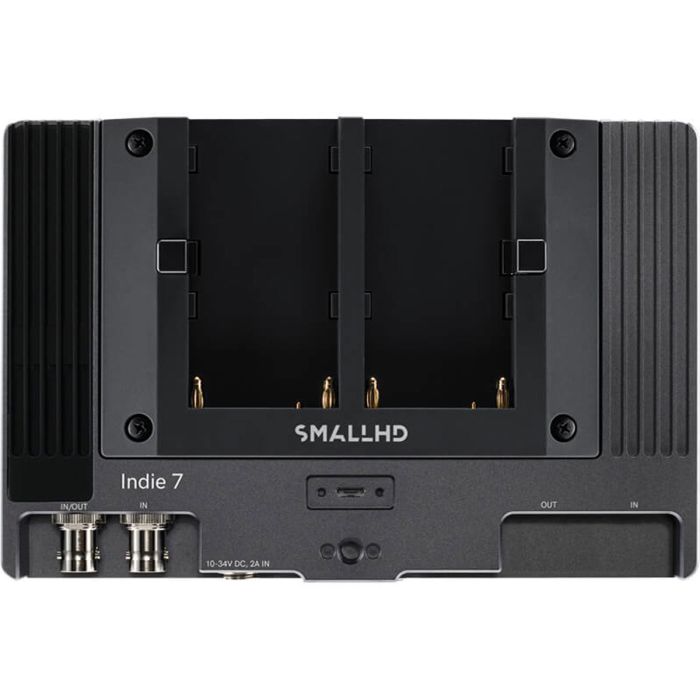

Included Sony L-Series dual battery bracket
Optional Gold Mount & V-Mount battery plate attachments (sold separately)

Rugged Lightweight Housing

Anodized aluminum chassis
Featherlight weight: 1.1lbs (.53kg)
Ultrathin body width: 1.2in (3.35cm)

7-inch Daylight Viewable 1080P Field Monitor
Customizable Frame Guides
Exposure Assist
High Resolution Scopes & Waveform
Image Capture & Overlay
Focus Assist
3D LUTs
Teradek RT Overlay
Camera Control for RED DSMC2 & KOMODO: Optional software upgrades, sold separately
1920 x 1200 resolution
1x 3G SDI In, 1x 3G SDI In/Out
1x 3G/HD-SDI Out
1x HDMI In
1x HDMI Out
Sony L Series battery plate included
1x Barrel Power Input, 2.0mm ID, 5.5mm OD (center pin positive)
Loading/saving Profiles
Size (HxWxL) 4.67in X 1.32in X 7.09in
Weight (Item Only without battery): 536g
4x 1/4-20 Mount Points (Left, Right, Bottom, and Back)

Environmental

Item Weight (oz): 18.9
Package Weight (oz): 26
Height (in): 4.67
Width (in): 1.32
Length/Depth (in): 7.09
Compliance: FCC, IC, CE, RoHS
Operating Temperature: 30F to 100F
Storage Temperature: 0F to 120F
Mount Points: Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized aluminum chassis

Display

Panel Type: IPS LCD Touchscreen
Diagonal Size: 7.02
Resolution: 1920x1200
Pixel Density: 323
Aspect Ratio: 0.6736111111111112
Active Area: 5.95 x 3.72
Brightness: 1000 Nits
Contrast: 1000:1
Gamut: 100% rec709
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes

Input Signal

3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

Connector Type

SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Power In: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB: 1x USB 2.0 Micro-B receptacle

Controls

Primary: Touch Screen
Record Capture: Image Capture Tool

Power

Connector: Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Consumption: 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)
Battery Plate Included: L-Series standard (V Mount or Gold Mount optional accessories)
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: L-Series, V Mount, Gold Mount
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batteries

Software

Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
