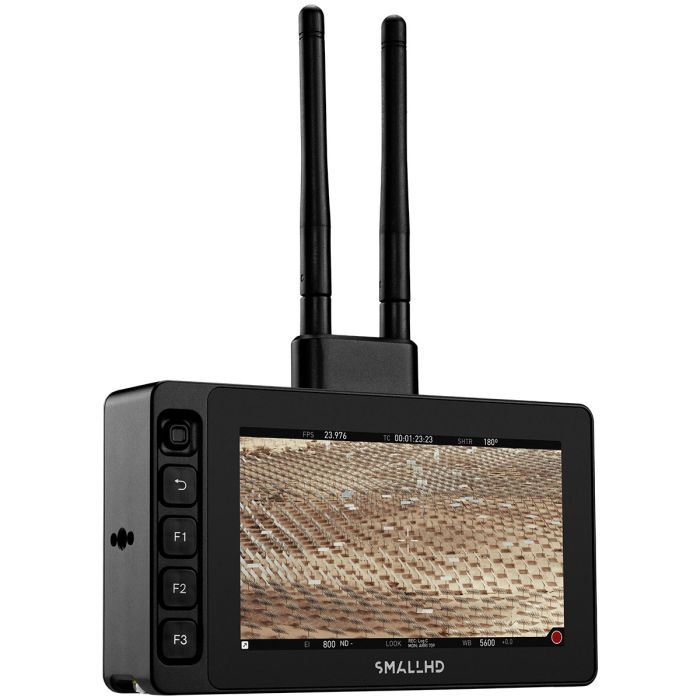

Small HD Ultra 5 Bolt 6 TX 750

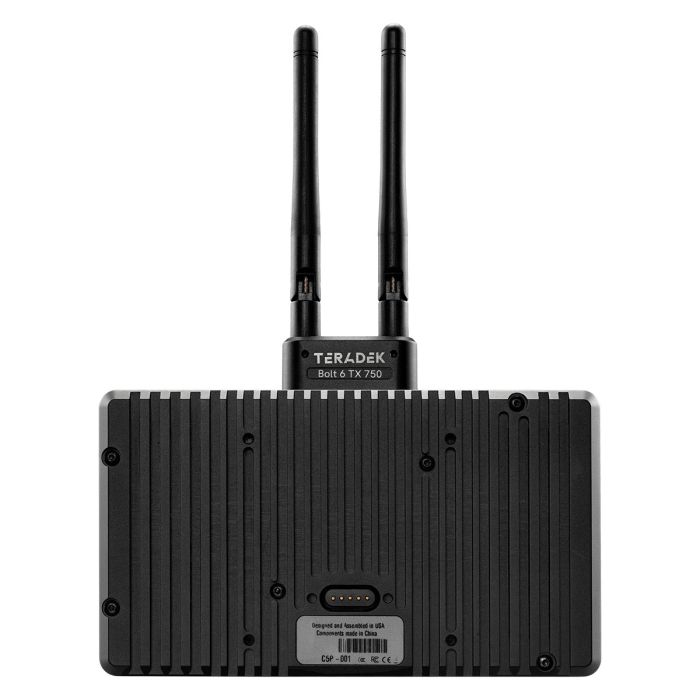

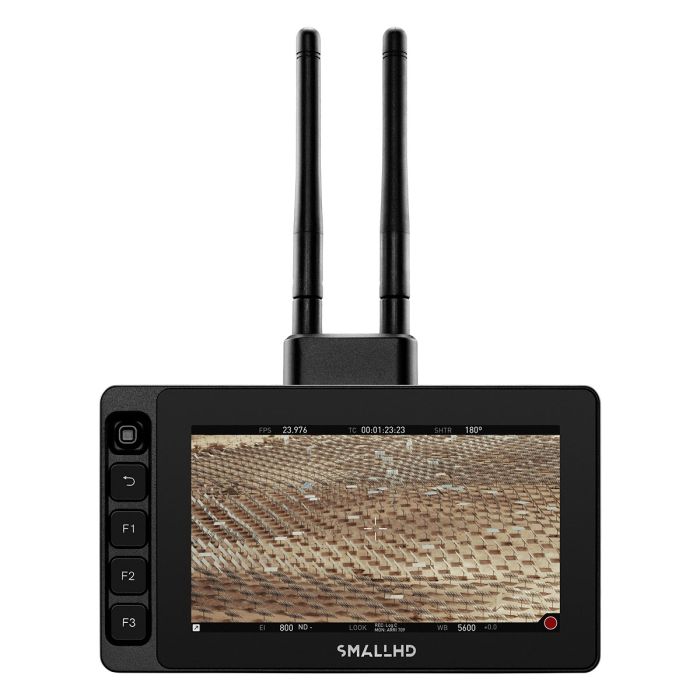

Bringing together SmallHD’s field-ready monitor with Teradek’s wireless transmission technology. Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside an Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750 feet away.

About Ultra 5
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions.. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

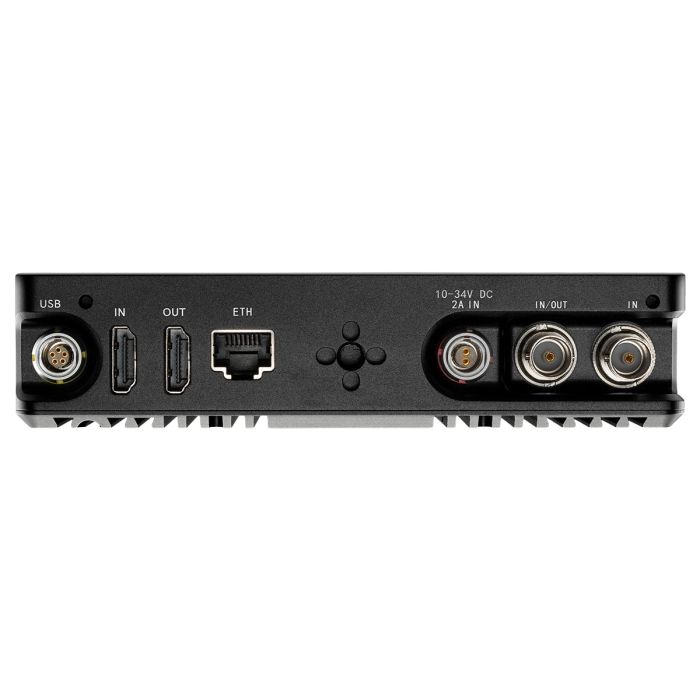

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

About Teradek Bolt 6 750 TX
The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send colour accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.

Camera Control for ARRI, RED®, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Colour Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
