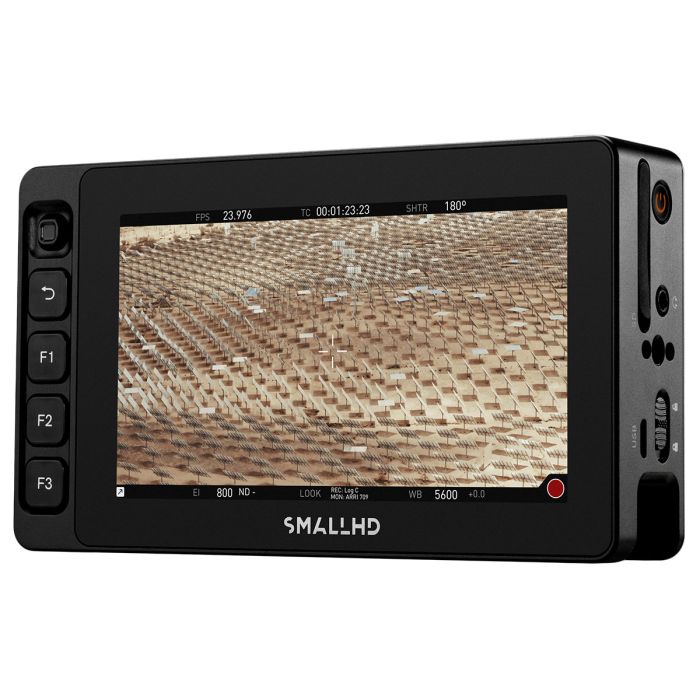

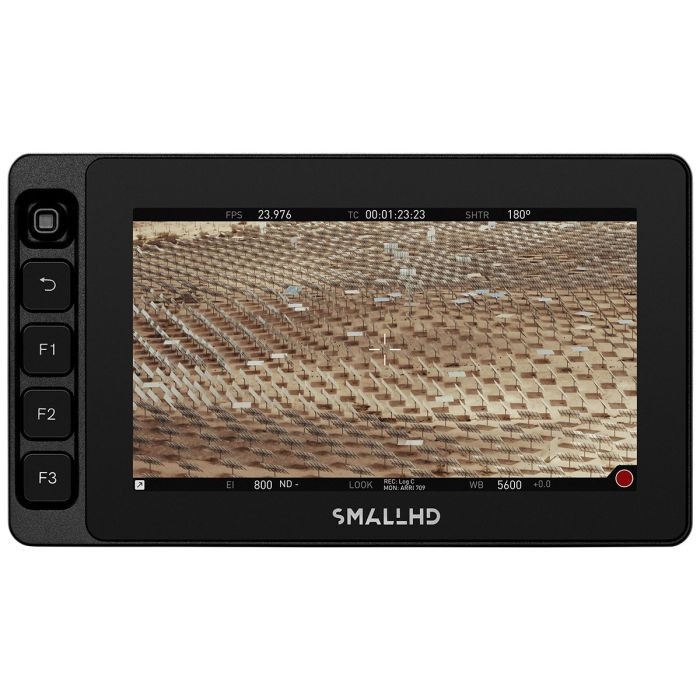

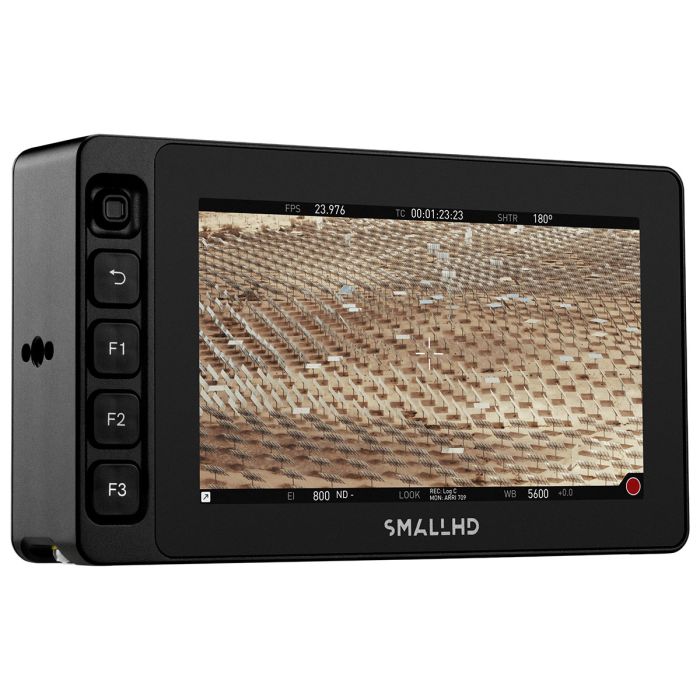

Small HD Ultra 5 Monitor
Daylight-viewable, 5-inch monitor with custom-function buttons designed for high-end production use
SKU: SHD-16-0527
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Coming Soon
Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.
Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).
Camera Control For ARRI, RED and Sony Venice
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.
*Individual Camera Control software licenses are sold separately.
- Daylight-viewable, 5-inch monitor with custom-function buttons designed for high-end production use
- Model: 16-0527
- Display: 5-inch Touchscreen, 1920x1080, 440 PPI

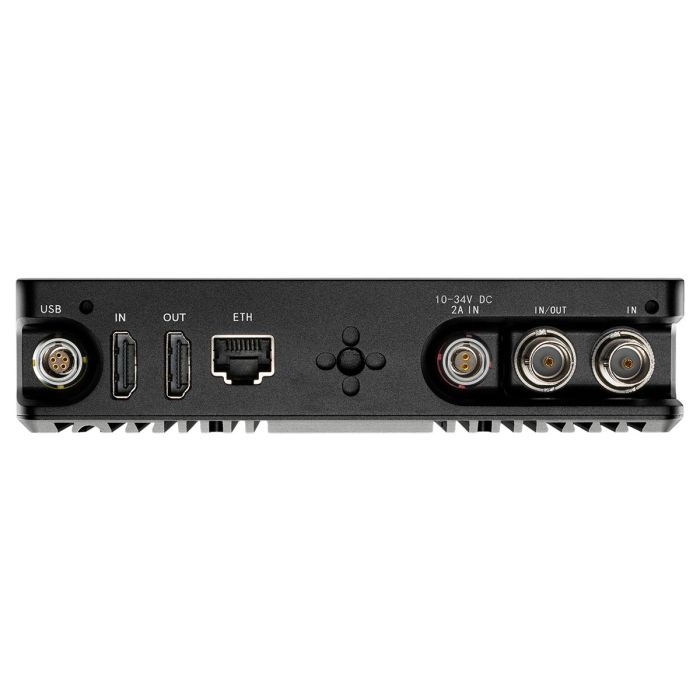

- Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
- Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
- Power Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

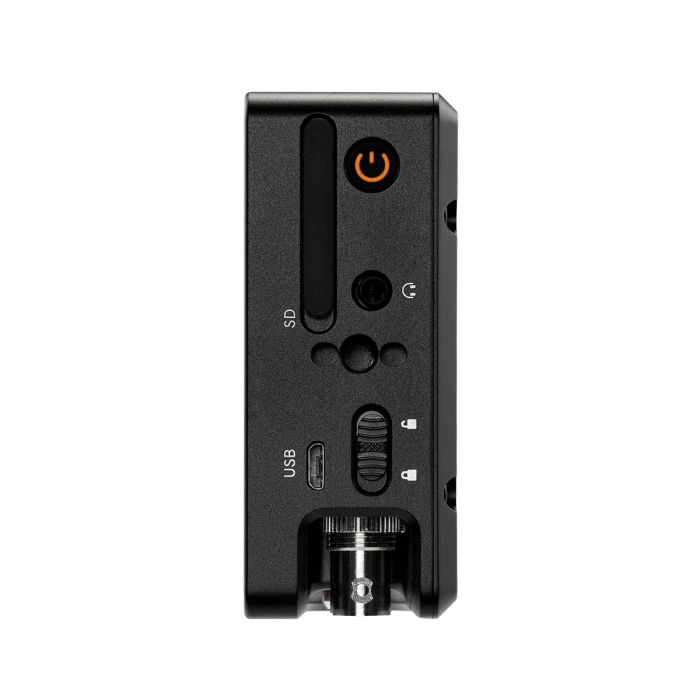

- Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB
Environmental
- Mount Points: 6x 1/4-20 Mounting Points
- User Function Buttons: Joystick Back-Button 3x Custom-Function Buttons
Display
- Panel Type: Touch-Screen
- Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Brightness: 3000nits
- Backlight Type: Edgelit
Input Signal
- 3G-SDI Input Types: 1x 3G-SDI
Output Signal
- HDMI Output Types: 1x HDMI 2.0 (4Kp30)
Connector Type
- SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
- HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
- Audio: 1x 3.5mm Stereo Headphone Jack
Data I/O
- Connector Type: 1x RJ45 Ethernet
- Storage Media: 1x SD Card Slot
- USB: 1x Micro USB 1x Locking USB
Power
- Input: 2-pin Locking Power Input (10-34V DC, 2.1A)
Software
- Pixel Zoom: Yes
- Focus Assist: Yes
- Peaking: Yes
- False Color: Customizable False Color Overlays
- Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
- Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
Camera Control
- Camera Control Compatibility: Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™)
Compare Chart
- Resolution: 1920 x 1080
- Color Depth: 10-Bit Color Intelligence Engine
- Brightness: 3000nits
- SDI (1080p60): 1x 3G-SDI Input 1x 3G-SDI (I/O)
- HDMI (4Kp30): 1x HDMI 2.0 Input 1x HDMI 2.0 Output
- Touchscreen: ✔️
- Joystick Control: Front Joystick
- Physical Buttons: Back-Button 3x Custom-Function
- Power Input: 2-pin Locking Connector
- Locking USB Control Port: ✔️
- Ethernet Port: ✔️
- Camera Control Compatibility*: ARRI, REDⓇ, Sony VENICE
- Battery Support: Gold or V-Mount Micro Plates*
- Touchscreen Lock: ✔️
- Built-in Teradek Bolt 6: Ultra 5 Bolt 6 750 Transmitter + Receiver
- Ultra 5
- D-Tap to 2pin Power Cable 36in
