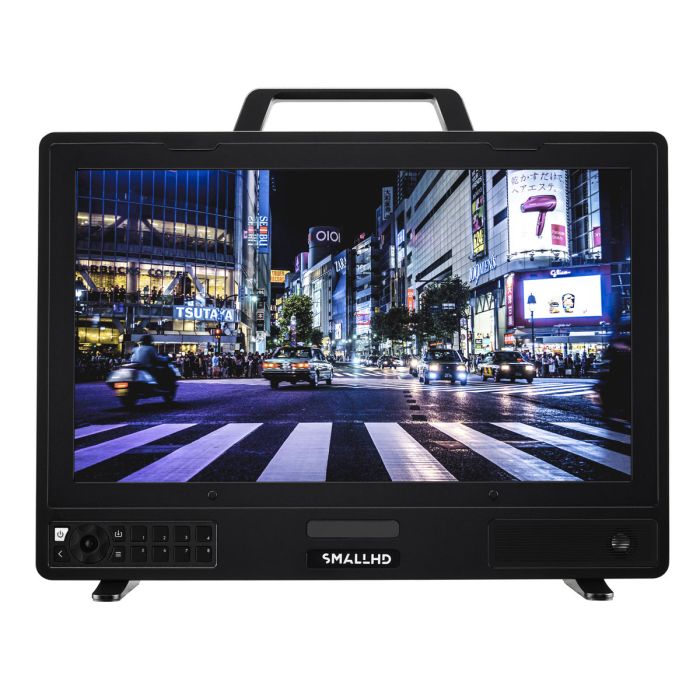

Small HD Vision 17 17" 4K HDR Production Monitor
17" 4K HDR Production Monitor
MPN: SHD-MON-VISION-17 SKU: SHD-MON-VISION-17
Vision 17 is built for the mobile Filmmaker. Employing the same SmallHDR dual-modulation hardware as Vision 24, this 17” FALD counterpart boasts 2403 individual LED zones, with 1000+ nits of brightness to achieve perfect uniformity in contrasts & latitude, with even deeper blacks and greater highlight detail. Compact, durable, and lightweight, Vision 17 is capable of traveling to any on-set environment.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually SHips in 7-10 Days
Vision 17 is built for the mobile Filmmaker. Employing the same SmallHDR dual-modulation hardware as Vision 24, this 17” FALD counterpart boasts 2403 individual LED zones, with 1000+ nits of brightness to achieve perfect uniformity in contrasts & latitude, with even deeper blacks and greater highlight detail. Compact, durable, and lightweight, Vision 17 is capable of traveling to any on-set environment.
Product Highlights
- 17.3in/44cm Full-Array Local Dimming (FALD)
- 1,000,000:1 Contrast Ratio
- 1000nits
- 3840x2160 Resolution
- Weight: 10.7lbs / 4.8kg (with handle & feet)
Key Platform Highlights
- PageOS 4 software platform
- 4K HDR waveform and scopes*
- Dual & Quad-view*
- Color Pipe HDR color rendering
- Monitor Calibration Wizard
- Small4K™ Video Processor Architecture
- Inputs: 4x 12G-SDI , 1x HDMI 2.0
- Outputs: 4x 12G-SDI, 1x HDMI 2.0*
- Unibody Smart Chassis
- Smartrail for battery and accessory mounting
- Interchangeable mounting points
- 2x 2-pin accessory power outputs
- Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)
*Update available Q4 2020
Environmental
- Item Weight (oz): 171.2
Display
- Panel Type: IPS LCD
- Diagonal Size: 17.3
- Resolution: 3840x2160
- Brightness: 1000nits
- Contrast: 1,000,000:1
- Gamut: 115% DCI-P3
- Color Depth: 8-bit
- Backlight Type: Full-Array Local Dimming
- Backlight Zones: 2403
Input Signal
- 12G-SDI Input Types: 4x 12G-SDI
- HDMI Input Types: 1x HDMI 2.0 (4K60)
Output Signal
- 12G-SDI Output Types: 4x 12G-SDI
- HDMI Output Types: Coming Soon
- Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack
Data I/O
- Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Power
- Input: 1x 3-pin XLR (12-34V/12A)
- Output: 2x 2pin (12V / 2A combined) 2x USB (5V / 2.4A) (Front/Rear) 1x USB-C (5V / 1.5A)
- Consumption: 127w (monitor only) 208w (w/max access. power draw)
- Battery Plate Included: No
- Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
- Basic Acrylic Screen Protector
- 3ft 4K HDMI Cable
- 2x 1/4-20 Cheese Stick Mounting Accessory
- 2x Combo Cheese Stick (1/4-20 + 3/8")
- Monitor Feet
- Monitor Handle
- 3-pin XLR Power Supply
- 8GB SD Card
- Microfiber Cleaning Cloth
