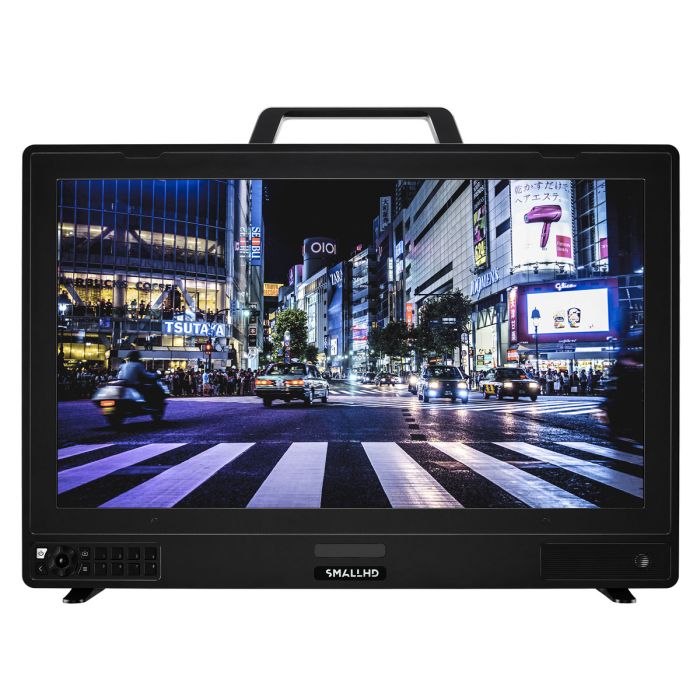

Small HD Vision 24 24" 4K HDR Production Monitor
24" 4K HDR Production Monitor
MPN: SHD-MON-VISION-24 SKU: SHD-MON-VISION-24
Vision 24 allows you to see as your camera sees. Engineered to equal modern sensors’ increased sensitivity to highlight and lowlight image retention. Powered by SmallHDR, a proprietary Full-Array Local Dimming (FALD) hardware that enables nuanced control of over 2100 individual LED zones, rendering hyper-sharp contrasts with deep blacks, crisp highlights, and a stunning 10-bit color depth. Ideal for use in any production environment where HDR monitoring is a necessity, Vision 24 provides the added security that every detail is captured.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Call for Lead Time
Vision 24 allows you to see as your camera sees. Engineered to equal modern sensors’ increased sensitivity to highlight and lowlight image retention. Powered by SmallHDR, a proprietary Full-Array Local Dimming (FALD) hardware that enables nuanced control of over 2100 individual LED zones, rendering hyper-sharp contrasts with deep blacks, crisp highlights, and a stunning 10-bit color depth. Ideal for use in any production environment where HDR monitoring is a necessity, Vision 24 provides the added security that every detail is captured.
Product Highlights
- 24.1in/61cm Full-Array Local Dimming (FALD)
- 1000nits
- 1,000,000:1 Contrast Ratio
- 10-bit Color Depth
- 2176 Zone high-density FALD Backlight
- 4096x2160 Resolution
- Weight: 19.7lbs / 8.9kg (with handle & feet)
Key Platform Highlights
-
- PageOS 4 software platform
- 4K HDR waveform and scopes*
- Dual & Quad-view*
- Color Pipe HDR color rendering
- Monitor Calibration Wizard
- Small4K™ Video Processing Architecture
- Inputs: 4x 12G-SDI , 1x HDMI 2.0
- Outputs: 4x 12G-SDI, 1x HDMI 2.0*
- Unibody Smart Chassis
- Smartrail for battery and accessory mounting
- Interchangeable mounting points
- 2x 2-pin accessory power outputs
- Power: Hot-swappable dual inputs: 1x 3-pin XLR, 1x Dual-GM/VM Battery Plate (sold separately)
- PageOS 4 software platform
*Update available Q4 2020
Environmental
- Item Weight (oz): 315.2
Display
- Panel Type: IPS LCD
- Diagonal Size: 24.1
- Resolution: 4096x2160
- Brightness: 1000nits
- Contrast: 1,000,000:1
- Gamut: 115% DCI-P3
- Color Depth: True 10-bit
- Backlight Type: Full-Array Local Dimming
- Backlight Zones: 2176
Input Signal
- 12G-SDI Input Types: 4x 12G-SDI
- HDMI Input Types: 1x HDMI 2.0 (4K60)
Output Signal
- 12G-SDI Output Types: 4x 12G-SDI
- HDMI Output Types: Coming Soon
- Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack
Data I/O
- Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Power
- Input: 1x 3-pin XLR (12-34V/12A)
- Output: 2x 2pin (12V / 2A combined) 2x USB (5V / 2.4A) (Front/Rear) 1x USB-C (5V / 1.5A)
- Consumption: 225w (monitor only) 306w (w/max access. power draw)
- Battery Plate Included: No
- Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
- Basic Acrylic Screen Protector
- 3ft 4K HDMI Cable
- 2x 1/4-20 Cheese Stick Mounting Accessory
- 2x Combo Cheese Stick (1/4-20 + 3/8")
- Monitor Feet
- Monitor Handle
- 3-pin XLR Power Supply
- 8GB SD Card
- Microfiber Cleaning Cloth
