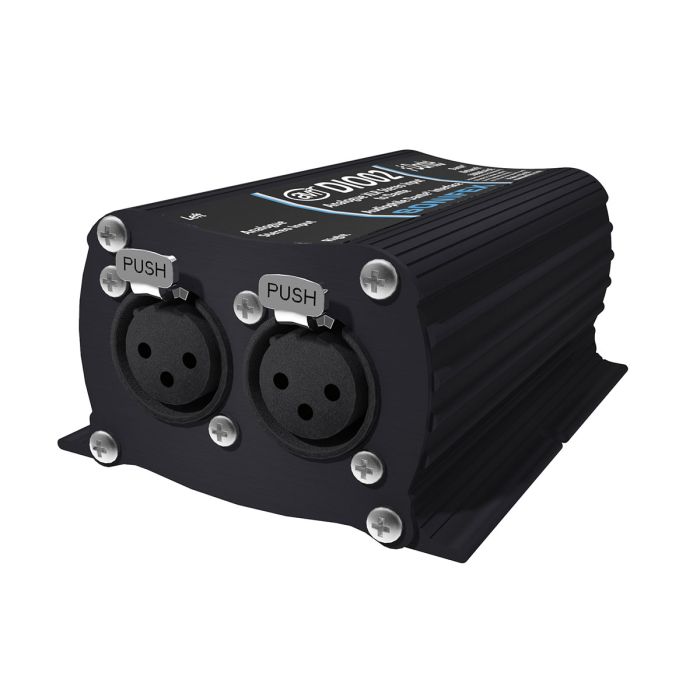

Sonifex AVN-DIO02 Analogue XLR Stereo Input to Dante

XLR Analogue Stereo Input to Dante

MPN: AVN-DIO02 SKU: AVN-DIO02

$359.17

The AVN-DIO02 is an analogue XLR stereo input to Dante AoIP network converter in the Sonifex DIO range of Dante input/output devices. It features two balanced analogue XLR inputs and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 2-3 Days

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.

The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

2 x balanced XLR analogue inputs.

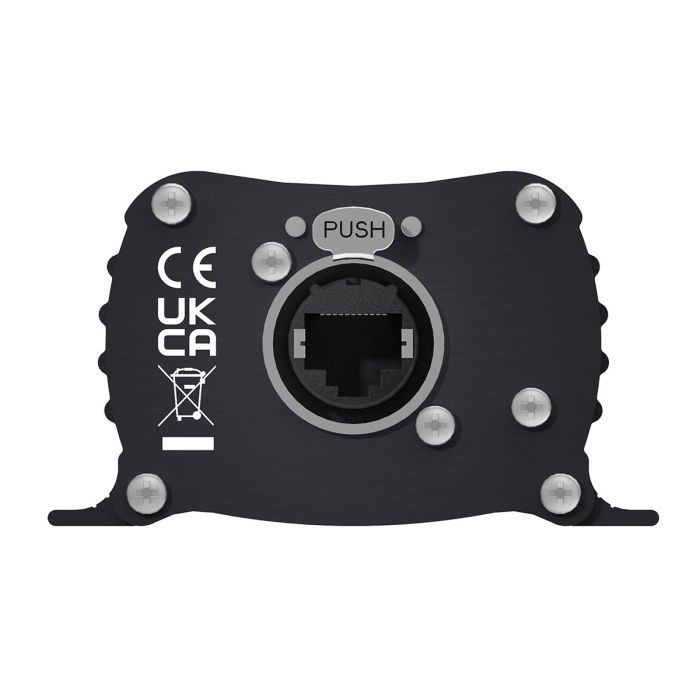

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range A/D conversion.
Powered via PoE (Power over Ethernet).

Analogue XLR Output Pin-out

Pin 1: Chassis Ground
Pin 2: Output Phase
Pin 3: Output Non Phase

Line Output - XLR/Terminal

Input Impedance: >10kΩ balanced
0dBFS Line-Up: +18dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz)
THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW
Crosstalk: <-110dB
Common Mode Rejection: >60dB @ 1kHz

Dante

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32

PoE Power

Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 6 W
Max PSE Power Usage: 15.4 W

Equipment Type

AVN-DIO02: Analogue XLR Stereo Input to Dante®

Physical Specification

Dimensions (Raw): 10.9cm (W) x 7.3cm (D) x 4.3cm (H)
4.3” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs
