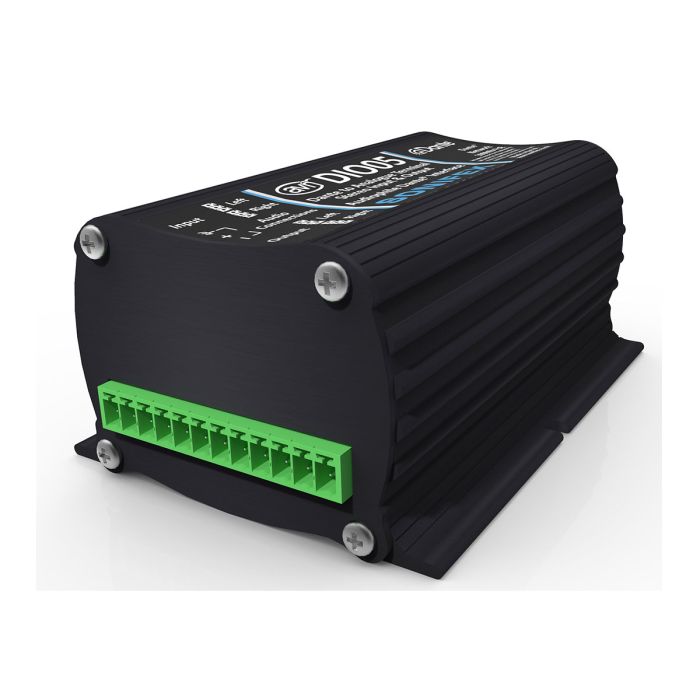

Sonifex AVN-DIO05 Dante® to Analogue Terminal Block Stereo Input & Output

Dante to Terminal Block Analogue Stereo Input & Output

MPN: AVN-DIO05 SKU: AVN-DIO05

$429.17

The AVN-DIO05 is a Dante to analogue terminal block input and output convertor in the Sonifex DIO range of Dante input/output devices. It features balanced stereo analogue inputs and outputs on a terminal block connector and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 2-3 Days

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.

The A/D and D/A circuitry offers 120dB of dynamic range - ten times better than similar competing products. All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

12 x terminal block connections (balanced stereo inputs and outputs).

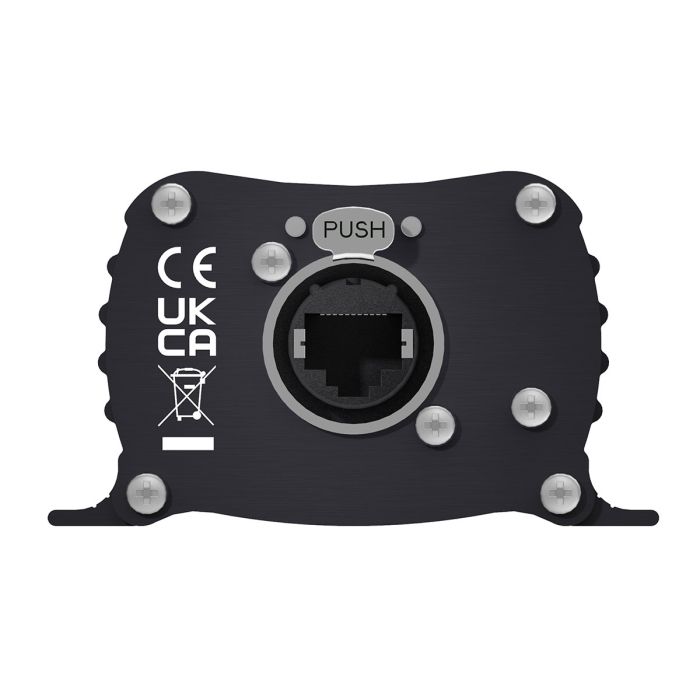

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES 67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range D/A and A/D conversion.
Powered via PoE (Power over Ethernet)

Analogue Terminal Stereo Input & Output Pin-out

Pin 1: Chassis Ground Pin 7: Chassis Ground
Pin 2: Left Input Phase Pin 8: Left Output Phase
Pin 3: Left Input Non Phase Pin 9: Left Output Non Phase
Pin 4: Chassis Ground Pin 10: Chassis Ground
Pin 5: Right Input Phase Pin 11: Right Output Phase
Pin 6: Right Input Non Phase Pin 12: Right Output Non Phase

Line Input – Terminal Block

Input Impedance: >10kΩ unbalanced
0dBFS Line-Up: +18dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <-118dBFS, -12dBu, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW, Rs=200Ω
Crosstalk: <-110dB
Common Mode Rejection: >60dB @ 1kHz

Line Output - RCA Phono

Output Impedance: <200Ω balanced
0dBFS Line-Up: +18dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range: >120dB A-weighted, 20kHz BW
Crosstalk: <-110dB

Dante

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32

PoE Power

Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 6 W
Max PSE Power Usage: 15.4 W

Equipment Type

AVN-DIO05: Dante® to Analogue Terminal Block Stereo Input & Output

Physical Specification

Dimensions (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs
