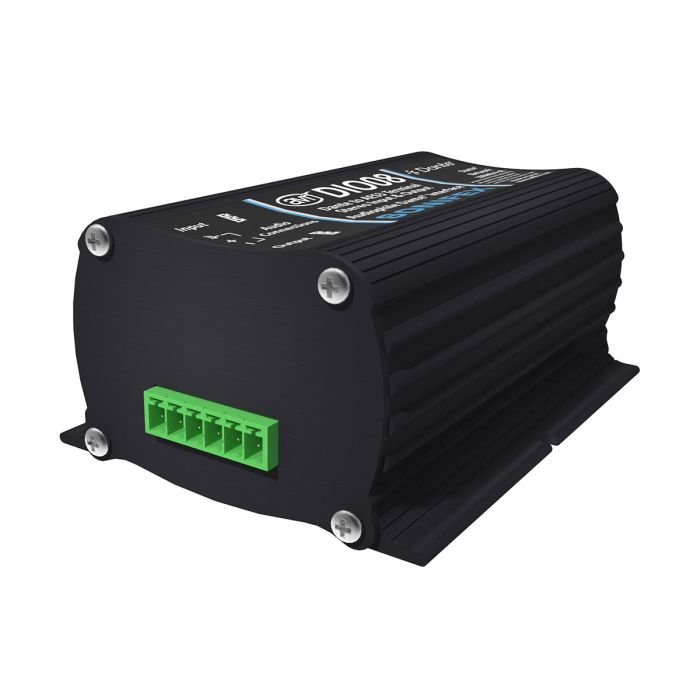

Sonifex AVN-DIO08 Dante to AES3 Terminal Block Stereo Input & Output

Dante to AES3 Terminal Block Stereo Input & Output

MPN: AVN-DIO08 SKU: AVN-DIO08

$329.17

The AVN-DIO08 is a Dante to AES3 digital input and output audio convertor in the Sonifex DIO range of Dante input/output devices. It features stereo AES3 digital audio inputs and outputs on terminal block connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 2-3 Days

All Sonifex DIO interfaces provide a simple, convenient, and elegant plug and play method of connecting legacy analogue and digital audio equipment to the Dante AoIP audio network.

All DIO products use Dante Controller for configuration and are powered by PoE (Power over Ethernet). They use rugged aluminium boxes with side slots for screw-mounting and contain superior audio circuitry for optimal audio performance. All feature rugged Neutrik EtherCon® connectors and Neutrik lockable audio connectors for ultra-reliable connectivity.

6 x terminal block connections (balanced stereo inputs and outputs).

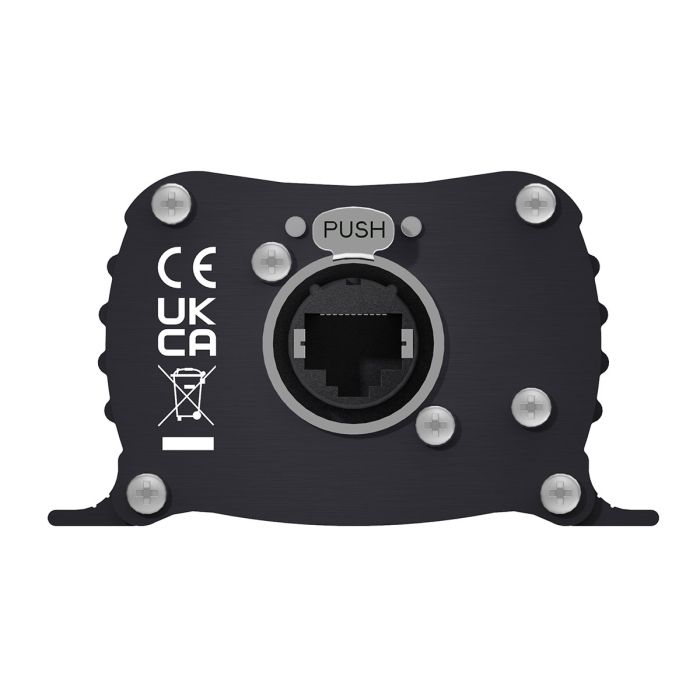

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range conversion.
Powered via PoE (Power over Ethernet)

AES3 Terminal Block Stereo Input & Output Pin-out

Pin 1: Chassis Ground Pin 4: Chassis Ground
Pin 2: Input Phase Pin 5: Output Phase
Pin 3: Input Non Phase Pin: 6 Output Non Phase

AES3 Input – Terminal Block

Input Impedance: 110Ω unbalanced
Input Format: AES3
Supported Sample Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

AES3 Output - BNC

Output Impedance: 110Ω unbalanced
Output Format: AES3
Supported Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz

Dante

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32

PoE Power

Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 2 W
Max PSE Power Usage: 15.4 W

Equipment Type

AVN-DIO08: Dante® to AES3 Terminal Block Stereo Input & Output

Physical Specification

Dimensions (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
6.9” (W) x 3.7” (D) x 2.2” (H)
Weight: Nett: 0.2kg Gross: 0.3kg
Nett: 0.44lbs Gross: 0.66lbs
