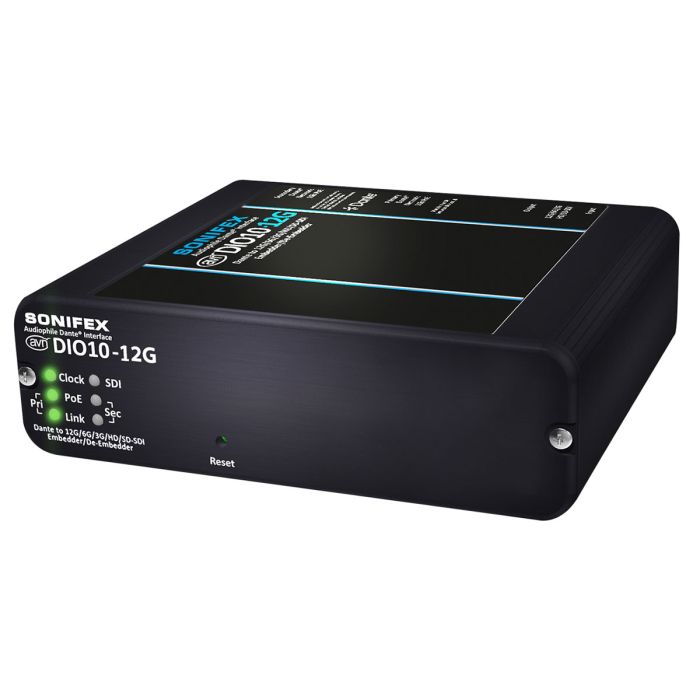

Sonifex AVN-DIO10-12G Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder

• 1 x 12G/6G/3G/HD/SD-SDI input.
• 1 x reclocked 12G/6G/3G/HD/SD-SDI output.

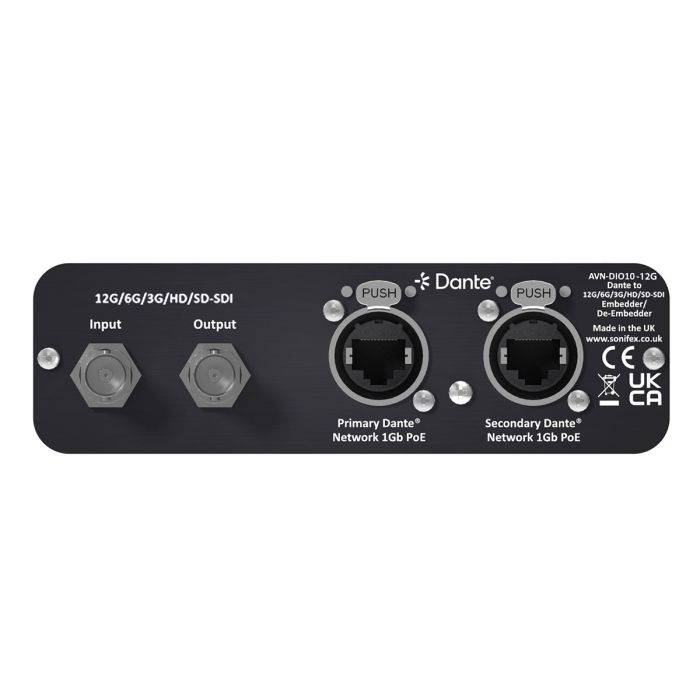

• Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon®
• Ethernet connectors.
• Powered via PoE (Power over Ethernet) with PoE dual redundancy.
• Fully Dante compliant device.
• AES67 compatible.
• Dante Domain Manager compliant.
• Web interface for configuration.

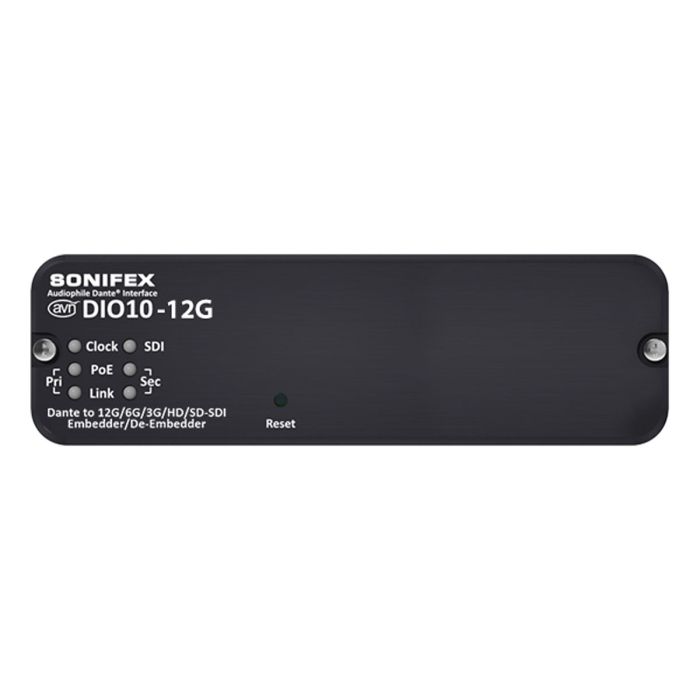

• Clock, SDI Lock, PoE and Sync LEDs.
• Overwrite or insert into existing SDI audio groups.
• Test tones available on embedded outputs.
• SDI audio sample rate support at 48kHz.
• All available Dante sample rates supported.
• Sample rate conversion of audio between Dante and SDI.
• Dante clock domain can be optionally synchronised from the SDI clock.
• 3 x units rackmount in the AVN-DIORK.

Parameter SDI Input

• Input Impedance: 75Ω Unbalanced
• SDI Supported Standards: 270Mbps SMPTE-259M-C (SD)
  1.485 or 1.4835Gbps SMPTE-292M (HD)
  2.97 or 2.967Gbps SMPTE-424M (3G)
  5.94 or 5.934Gbps SMPTE-2081 (6G)
  11.88 or 11.868Gbps SMPTE-2082 (12G)
• Supported Video Formats: 525/59.94 (SMPTE-125M)
  625/50 (ITU-R BT.656)
  720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M)
  1035i/59.94, 60 (SMPTE-260M)
  1080i/50, 59.94, 60 (SMPTE-274M)
  1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M)
  1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)
  1080p/50 (SMPTE-295M)
  2160p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-2036)
• Embedded Audio: 48kHz, synchronous
  SMPTE-272M-ABC
  SMPTE-299M
  SMPTE-299-2 (De-embedding only)
• Supported Image Mapping: SMPTE-425M-AB

Parameter SDI Output

• Output Impedance: 75Ω Unbalanced
• Alignment Jitter: <0.2UI
• Output Level: 800mV ±10%
• Return Loss: TBC
• SDI Supported Standards: Loop-through - Output follows input
  Generator – See above standards
• Supported Video Formats: Loop-through - Output follows input
  Generator – See above formats
• Embedded Audio: 48kHz, synchronous
  SMPTE-272M-C
  SMPTE-299M

Network and AoIP

• AoIP Standard: Dante
• Channels: 44.1/48kHz - 64 receive, 64 transmit
  88.2/96kHz – 32 receive, 32 transmit
  176.4/192kHz – 16 receive, 16 transmit
• Flows: 32 receive, 32 transmit
• Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
• Encoding: PCM 16, PCM 24, PCM 32
• AES67 Support Yes
• Connectivity: 2 x etherCON (RJ45 compatible)
• Speed: 1Gbps or 100Mbps
• Network Modes: Switched or redundant
• Dante Domain Manager Ready: Yes
• Clock Source: Internal (PTP Leader), Network PTP Leader or from SDI input (Sync to External)

PoE Power

• Standard: 802.3af
• Redundancy: Yes
• Class: 0
• PD Power Range: 0.44 W to 12.94 W
• Typical PSE Power Usage: 6 W
• Max PSE Usage: 15.4 W

Equipment Type

• AVN-DIO10-12G: Dante to 12G/6G/3G/HD/SD-SDI Embedder/De-Embedder

Physical Specification

• Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
  5.5” (W) x 5.4” (D) x 1.7” (H)
• Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
  7.0" (W) x 6.7" (D) x 2.2" (H)
• Weight: Nett: 0.36kg Gross: 0.55kg
  Nett: 0.79lbs Gross: 1.21lbs
