Sonifex AVN-DIO15 4 Analogue XLR Inputs to Dante
4 Analogue XLR Inputs to Dante
MPN: AVN-DIO15 SKU: AVN-DIO15
The AVN-DIO15 is a 4 analogue XLR input to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The AVN-DIO15 is a 4 analogue XLR input to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR inputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.

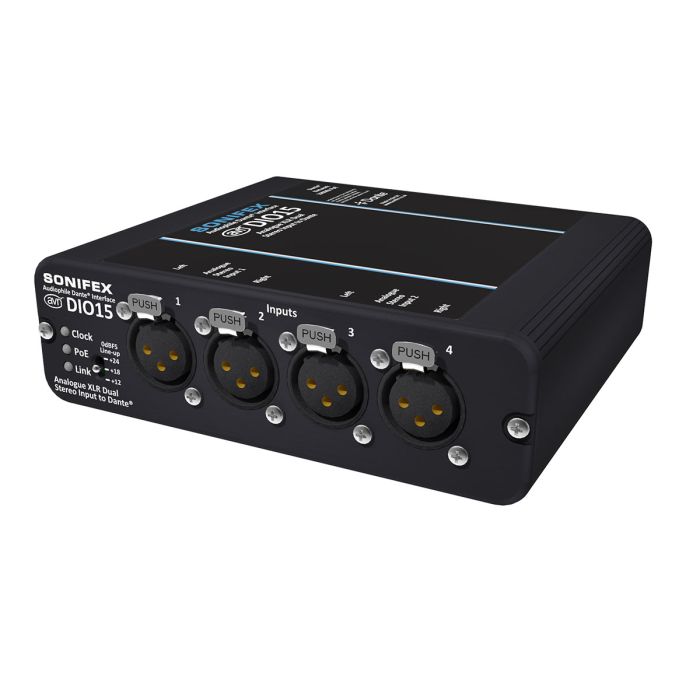

The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.

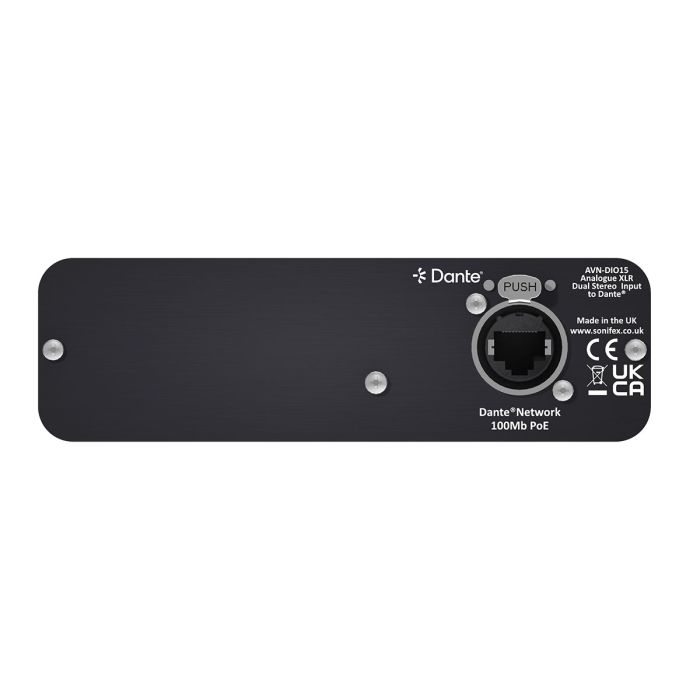

It’s powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO15 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
- 4 x Balanced Analogue XLR Inputs
- 1 x Neutrik etherCON Connector
Microphone XLR Input Pin-out
- Pin 1: Chassis Ground
- Pin 2: Input Phase
- Pin 3: Input Non Phase
Line Inputs - XLR
- Input Impedance: 5kΩ Unbalanced
- 0dBFS Line-Up: Selectable +12/+18/+24dBu
- Frequency Response: 20Hz to 20kHz, +0/-0.2dB (ref 1kHz)
- THD+N:
<-118dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW - Dynamic Range 120dB, 20kHz BW, Rs=200Ω
- Cross Talk <-110dB
- Common Mode Rejection >60dB @ 1kHz
Network and AoIP
- AoIP Standard: Dante
- Channels: 4 transmit
- Flows: 2 transmit
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Encoding: PCM 16, PCM 24, PCM 32
- AES67 Support Yes
- Connectivity: etherCON (RJ45 compatible)
- Speed: 100Mbps
- Dante Domain Manager Ready: Yes
- Clock Source: Internal (PTP Leader) or Network PTP Leader or from SDI input (Sync to External)
PoE Power - Standard 802.3af
- Class 0
- PD Power Range 0.44 W to 12.94 W
- Typical PSE Power Usage 6 W
- Max PSE Usage 15.4 W
Equipment Type
- AVN-DIO15: 4 Analogue XLR Inputs to Dante®
Physical Specification
- Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
5.5” (W) x 5.4” (D) x 1.7” (H) - Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
7.0" (W) x 6.7" (D) x 2.2" (H) - Weight: Nett: 0.36kg Gross: 0.55kg
Nett: 0.79lbs Gross: 1.21lbs
Accessories
AVN-DIOBT
AVN-DIOMT
AVN-DIORK
AVN-DIO Large Unit Belt Clip Kit
AVN-DIO Large Unit Underdesk Mount
AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
