Sonifex AVN-DIO16 Dante to 4 Analogue XLR Outputs Dante
Dante to 4 Analogue XLR Outputs
MPN: AVN-DIO16 SKU: AVN-DIO16
The AVN-DIO16 is a 4 analogue XLR output to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR outputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The AVN-DIO16 is a 4 analogue XLR output to Dante converter in the Sonifex DIO range of Dante input/output devices. It features four balanced analogue XLR outputs and one Neutrik etherCON connector for direct connection to a Dante AoIP network.

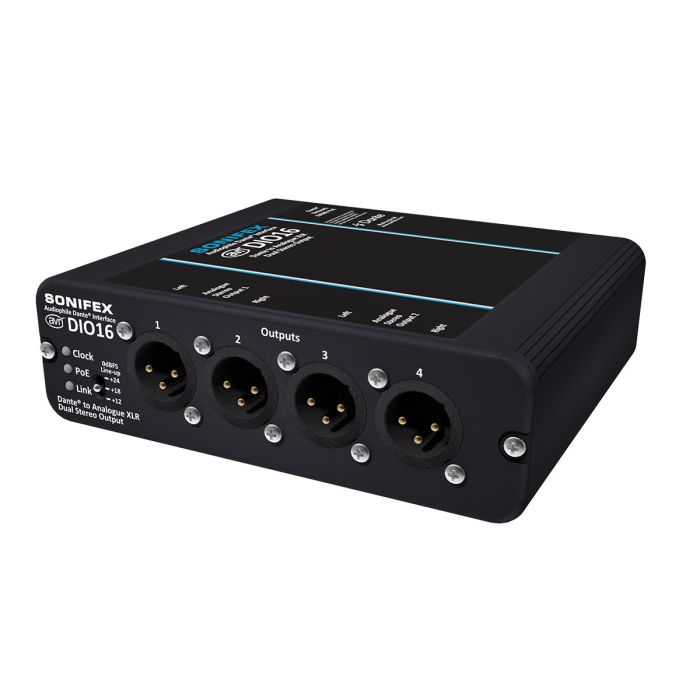

The front panel provides a global 0dBFS line-up which can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. There are also front panel LEDs to indicate network clock status, AoIP link status and PoE power active.

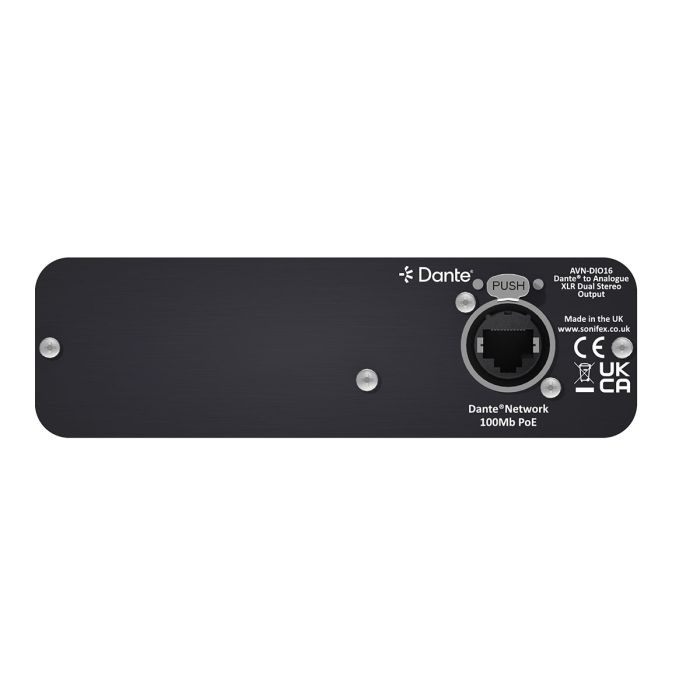

It’s powered using Power over Ethernet (PoE), using a Neutrik etherCON connector. The AVN-DIO16 uses the latest Audinate Dante chipset so is AES67 and Dante Domain Manager compliant.
- 4 x Balanced Analogue XLR Outputs
- 1 x Neutrik etherCON Connector
Microphone XLR Output Pin-out
- Pin 1: Chassis Ground
- Pin 2: Phase
- Pin 3: Non Phase
Line Outputs - XLR
- Input Impedance: 200Ω balanced
- 0dBFS Line-Up: Selectable +12/+18/+24dBu
- Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
- THD+N:<-100dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW
- Dynamic Range 120dB, 20kHz BW, Rs=200Ω
- Cross Talk <-110dB
Network and AoIP
- AoIP Standard: Dante
- Channels: 4 receive
- Flows: 2 receive
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Encoding: PCM 16, PCM 24, PCM 32
- AES67 Support Yes
- Connectivity: etherCON (RJ45 compatible)
- Speed: 100Mbps
- Dante Domain Manager Ready: Yes
- Clock Source: Internal (PTP Leader) or Network PTP Leader
PoE Power - Standard 802.3af
- Class 0
- PD Power Range 0.44 W to 12.94 W
- Typical PSE Power Usage 6 W
- Max PSE Usage 15.4 W
Equipment Type
- AVN-DIO16: Dante® to 4 Analogue XLR Outputs
Physical Specification
- Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
5.5” (W) x 5.4” (D) x 1.7” (H) - Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
7.0" (W) x 6.7" (D) x 2.2" (H) - Weight: Nett: 0.36kg Gross: 0.55kg
Nett: 0.79lbs Gross: 1.21lbs
Accessories
AVN-DIOBT
AVN-DIOMT
AVN-DIORK
AVN-DIO Large Unit Belt Clip Kit
AVN-DIO Large Unit Underdesk Mount
AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
