Sonifex AVN-DIO19 Dante to AES3 16 Channel I/O Converter
AVN-DIO19 Dante® to AES3 16 Channel I/O Converter
MPN: AVN-DIO19 SKU: AVN-DIO19
The AVN-DIO19 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. All outputs follow the Dante system sample rate.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The AVN-DIO19 audio converter and interface converts up to eight digital stereo AES3 inputs and eight digital stereo AES3 outputs to and from the Dante Audio-over-IP networking standard. Each input can accept sample rates from 32kHz to 192kHz, which will be sample rate converted to the Dante system sample rate. All outputs follow the Dante system sample rate.
It’s powered using Power over Ethernet (PoE), using Neutrik EtherCON® connectors, with primary and secondary ports for power and data redundancy. The AVN-DIO19 uses the latest Audinate Dante® chipsets so is AES67 and Dante Domain Manager® compliant.

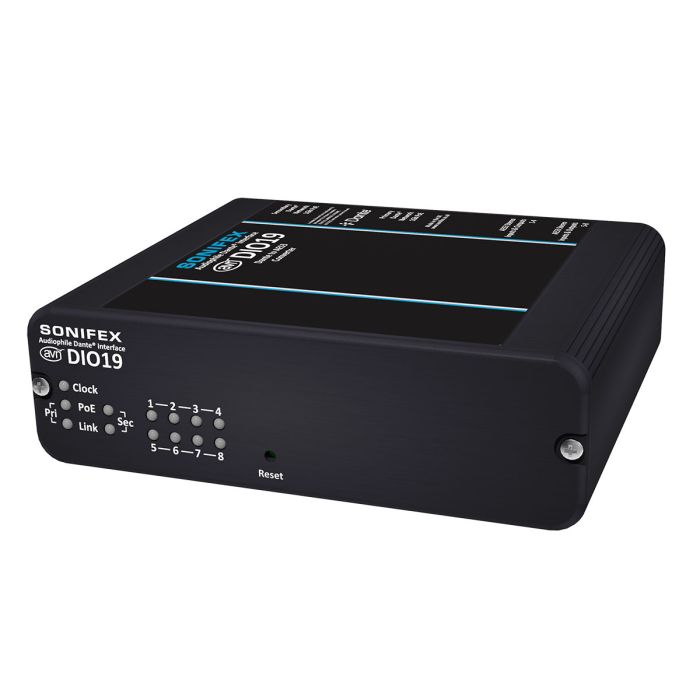

There are front panel LEDs to indicate network clock status, AoIP Primary and AoIP Secondary link status, PoE Primary power and PoE Secondary power active. In addition to these there are 8 AES3 input lock status LEDs.
A web interface is available for firmware updates, status information, network and device settings.
Up to 3 of the AVN-DIO19 units can be rackmount in the 1U AVN-DIORK.

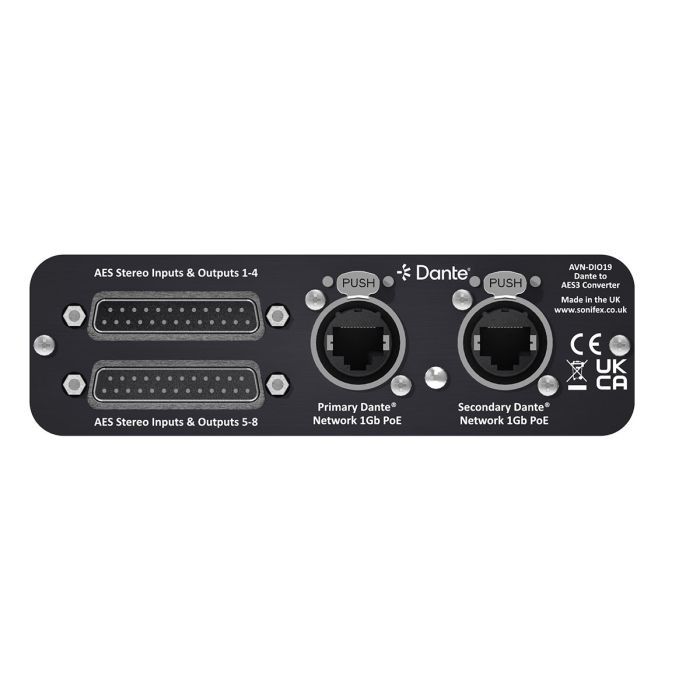

- 8 x balanced digital stereo AES3 inputs and outputs on 2 x 25-way D-types.
- Sample rate conversion of physical inputs to Dante system sample rate.
- Physical output sample rate matches Dante system sample rate.
- Dual redundant Primary and Secondary Dante network ports using Neutrik
- EtherCON® Ethernet connectors.
- Powered via PoE (Power over Ethernet) with PoE dual redundancy.
- Fully Dante compliant device.
- AES67 compatible.
- Dante Domain Manager compliant.
- Web interface for configuration.
- Clock, PoE, Network link and AES3 input lock LEDs.
- All available Dante sample rates supported.
- 3 x units rackmount in the AVN-DIORK.
AES3 I/O
- Input & Output Impedance: 110Ω Balanced
- Sample Rates: 32 – 192kHz
- Connections: 8 x stereo AES3 inputs and outputs on 2 x 25-way D-types using AES59 pinout
Network and AoIP
- AoIP Standard: Dante
- Channels: 16 receive, 16 transmit
- Flows: 16 receive, 16 transmit
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Encoding: PCM 16, PCM 24, PCM 32
- AES67 Support Yes
- Connectivity: 2x etherCON (RJ45 compatible)
- Speed: 1Gbps or 100Mbps
- Dante Domain Manager Ready: Yes
- Clock Source: Internal (PTP Leader) or Network PTP Leader
PoE Power - Standard 802.3af
- Class 0
- PD Power Range 0.44 W to 12.94 W
- Typical PSE Power Usage 6 W
- Max PSE Usage 15.4 W
Equipment Type
- AVN-DIO19: Dante to AES3 16 channel I/O converter
Physical Specification
- Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
5.5” (W) x 5.4” (D) x 1.7” (H) - Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
7.0" (W) x 6.7" (D) x 2.2" (H) - Weight: Nett: 0.36kg Gross: 0.55kg
Nett: 0.79lbs Gross: 1.21lbs
Accessories
AVN-DIOBT
AVN-DIOMT
AVN-DIORK
AVN-DIO Large Unit Belt Clip Kit
AVN-DIO Large Unit Underdesk Mount
AVN-DIO 1U 19" Rack Kit (5 x Small DIO or 3 x Large DIO)
AES3 balanced cable, DB25 to 4 x XLR3M and 4 x XLR3F, 3m
AES3 balanced cable, DB25 to DB25, 3m
CBL-D25-4XI4XO
CBL-D25-D25
