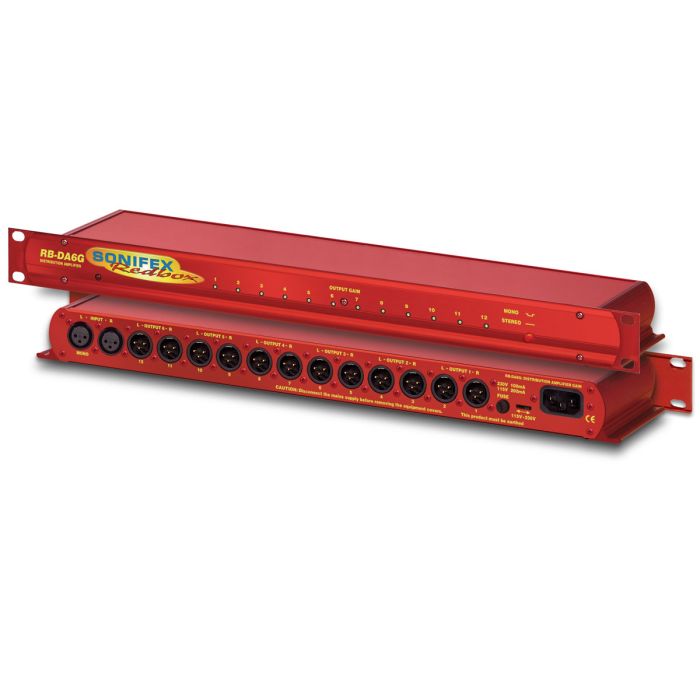

Sonifex RB-DA6G 6 Way Stereo Distribution Amplifier

6 Way Stereo Distribution Amplifier With Output Gain Control (1U)

MPN: RB-DA6G SKU: RB-DA6G

$504.17

The RB-DA6G is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 2-3 Days

The RB-DA6 is a 1U rack-mount high performance 6 way stereo distribution amplifier for splitting a source into a number of different outputs. The RB-DA6 has 1 stereo input and 6 stereo outputs. It can also be configured so that 1 mono input can be distributed to 12 outputs by use of a switch which is recessed on the front panel to prevent it being accidentally knocked.

The XLR-3 inputs and outputs are electronically balanced and can be wired unbalanced. Each output is individually buffered so that a short circuit on one output won’t affect the others.The left and right input gain controls (normalising) are pre-set potentiometers accessible through the front panel.

The output gain may be varied from -8dB to 18dB which is useful for normalising consumer and professional signals to give outputs of -15dBu and 0dBu respectively.

It is identical to the R8-DA6 with the addition of individual output gain adjustment, instead of global stereo gain adjustment.

Audio Specification

Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Gain Range: Adjustable 8dB loss to 18dB gain (L & R adjust)
Common Mode Rejection: >66dB typically
Input impedance: >20kΩ bridging
Output impedance: <50Ω
Distortion: 0.01% THD @ 1kHz, ref +8dBu output
Noise: -100dB unity gain, ref +8dBu output

Connections

Inputs: 2 x XLR 3 pin female (balanced, can be unbalanced)
Outputs: 12 x XLR 3 pin male (balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC) Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6G: 6 way stereo distribution amplifier with output gain control

Physical Specification

Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
19” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.8” (H)
Weight: Nett: 1.3kg Gross: 1.9kg
Nett: 2.9lbs Gross: 4.2lbs
