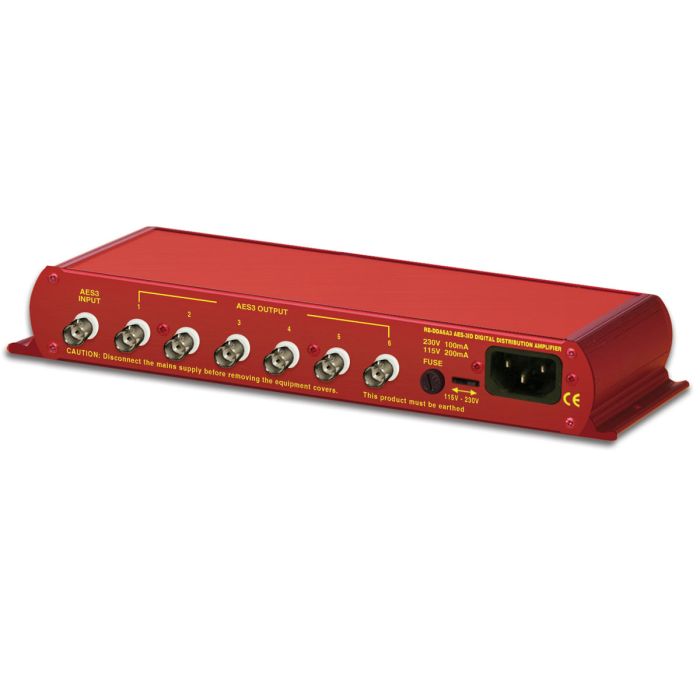

Sonifex RB-DDA6A3 6 Way Stereo AES-3id Digital Audio Distribution Amplifier
6 Way Stereo AES3ID Digital Distribution Amplifier (24 bit, 96kHz CapADle)
MPN: RB-DDA6A3 SKU: RB-DDA6A3
The RB-DDA6A3 digital distribution amplifier is used for distributing AES-3id digital audio, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels. It has a single BNC AES-3id audio input which is distributed to 6 BNC AES-3id audio outputs.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The RB-DDA6A3 digital distribution amplifier is used for distributing AES-3id digital audio, repeating both the audio data and the status information of the input whilst re-normalising to standard digital audio levels. It has a single BNC AES-3id audio input which is distributed to 6 BNC AES-3id audio outputs.
Applications include distributing audio from a BluRay player to recorders, or feeding multiple studios with an output from a master clock.
It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.
Audio Specification
- Input impedance: 75Ω
- Output impedance: 75Ω
- Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz & 96kHz)
- Signal Level: 1V ±20% peak to peak (output 1.17V to drive long cable lengths)
Connections
- Inputs: 1 x BNC female
- Outputs: 6 x BNC female
- Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
- Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
- Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
- RB-DDA6A3: 6 way stereo AES-3id digital audio distribution amplifier
Physical Specification
- 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)
- Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H) 14.2” (W) x 8” (D) x 2.4” (H)
- Weight: Nett: 0.95kg Gross: 1.4kg/Nett: 2.1lbs Gross: 3.2lbs
