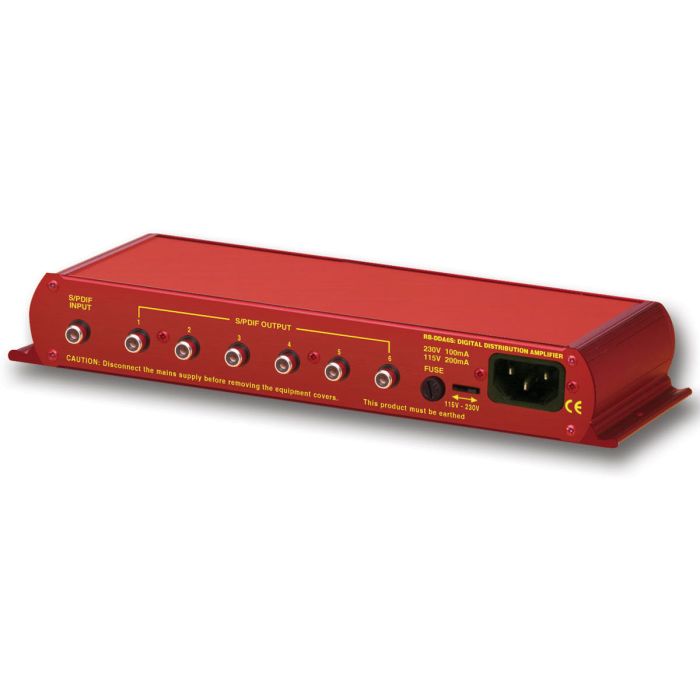

Sonifex RB-DDA6S 6 Way Stereo S/PDIF Digital Distribution Amplifier
6 Way Stereo S/PDIF Digital Distribution Amplifier (24 bit, 96kHz CapADle)
MPN: RB-DDA6S SKU: RB-DDA6S
The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format. It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The RB-DDA6S digital distribution amplifier is similar to the RB-DDA6A except that it is used for distributing digital audio data in S/PDIF format.
It has a single S/PDIF audio input which is distributed to 6 x S/PDIF audio outputs at the same level and condition as the input signal. It can accept input sample rates in the range of 30kHz - 100kHz, and bit rates of 16, 20 and 24 bit.
Uses include audio distribution at 16 bit 44.1kHz from a consumer CD player to multiple digital recorders, distribution of high quality 24 bit 96kHz signals from digital mixing desks to recorders and connection of the output of, say, a DVD player to multiple studios.
Audio Specification
- Input impedance: 75Ω
- Output impedance: 75Ω
- Sample Freq Range: 30-100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz & 96kHz)
- Signal Level: Balanced min 0.5V ±20% peak to peak
Connections
- Inputs: 1 x S/PDIF RCA phono (unbalanced)
- Outputs: 6 x S/PDIF RCA phono (unbalanced)
- Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
- Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC), Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
- RB-DDA6S: 6 way stereo S/PDIF digital distribution amplifier
Physical Specification
- 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U) 11” (W) x 4.3” (D) x 1.7” (H) (1U)
- Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H) 14.2” (W) x 8” (D) x 2.4” (H)
- Weight: Nett: 0.9kg Gross: 1.35kg/Nett: 2lbs Gross: 3lbs
