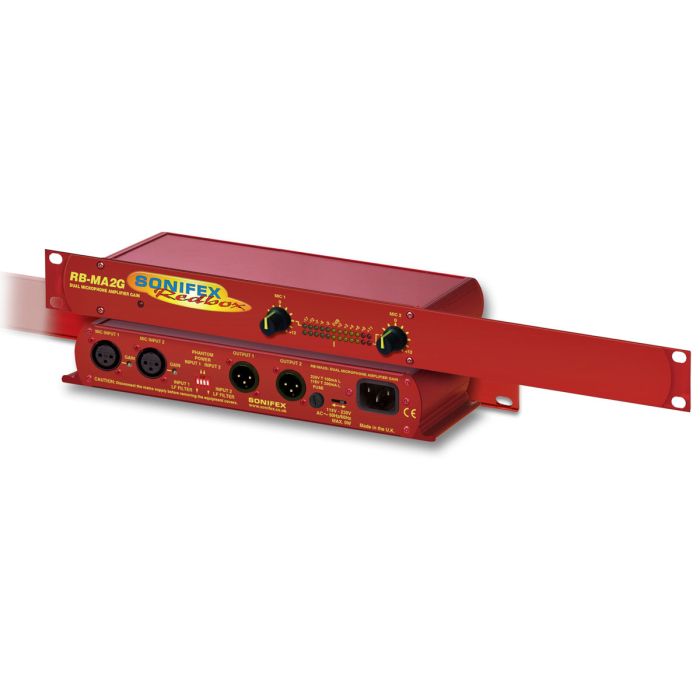

Sonifex RB-MA2G Dual Microphone Amplifier with Gain Controls
Dual Microphone Amplifier With Gain Control (1U)
MPN: RB-MA2G SKU: RB-MA2G
The RB-MA2G consists of two independent low-noise microphone pre-amplifiers with front panel level controls and metering, for converting microphone level signals to line level, or for driving long lines from microphones to mixing equipment.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The RB-MA2G consists of two independent low-noise microphone pre-amplifiers with front panel level controls and metering, for converting microphone level signals to line level, or for driving long lines from microphones to mixing equipment.
All connections are on the rear panel. The microphone input is XLR-3 type and is electronically balanced. The input gains can be adjusted individually by recessed pre-set potentiometers.
Two front panel potentiometers give ±12dB level adjustment and a 12 segment LED meter shows the audio level for each channel.
The XLR-3 line output is electronically balanced and can be wired unbalanced by grounding the non-phase signal, allowing you to feed both balanced and unbalanced equipment. For each channel there are independent switches to control a high pass filter (low frequency roll-off at 125Hz) and to provide phantom power at +48V to the connected microphone. An LED power indicator on the front panel displays the power supply connection.
Audio Specification
- Maximum Input Level: +4dBu
- Maximum Output Level: +28dBu
- Input Impedance: 2kΩ Nominal balanced
- Output Impedance: <50Ω Balanced
- Low Frequency Roll-Off: 125Hz @ 6dB/octave
- Gain Range: Adjustable 12dB to 80dB gain
- E.I.N: -128dBu, 20kHz BW, max gain, Rs=200Ω
- Distortion: <0.01%, +8dBu, 20Hz – 20kHz, 40dB gain, 20kHz bandwidth
- Common Mode Rejection: >66dB @ 1kHz
- Phantom Power: 48V
- Frequency Response: 20Hz to 20kHz +0/-0.2dB
Connections
- Input: 2 x XLR 3 pin female (Balanced)
- Output: 2 x XLR 3 pin male (Balanced, can be unbalanced)
- Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
- Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
- Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
- RB-MA2G: Dual microphone amplifier with gain
Physical Specification
- Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
11” (W) x 4.3” (D) x 1.7” (H) (1U) - Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
14.2” (W) x 8” (D) x 2.4” (H) - Weight: Nett: 1.35kg Gross: 2.0kg / Nett: 3lbs Gross: 4.4lbs
