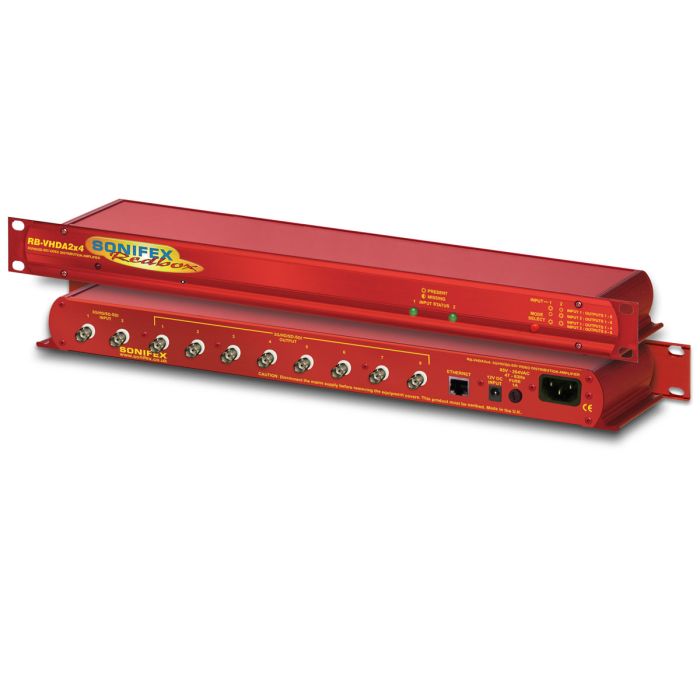

Sonifex RB-VHDA2x4 3G/HD/SD-SDI 2 Input, 8 Output Video Distribution Amplifier
3G/HD/SD-SDI 2 Input, 8 Output Video Distribution Amplifier
MPN: RB-VHDA2x4 SKU: RB-VHDA2X4
The RB-VHDA2x4 is a high performance, reliable dual input and eight output digital video distribution amplifier for re-clocking and distributing up to two 3G, HD (high definition) or SD (standard definition) SDI sources.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The RB-VHDA2x4 is a high performance, reliable dual input and eight output digital video distribution amplifier for re-clocking and distributing up to two 3G, HD (high definition) or SD (standard definition) SDI sources.
By default, the RB-VHDA2x4 acts as two independent video distribution amplifiers, with input 1 routed to outputs 1-4 and input 2 routed to outputs 5-8. Either input can also be routed to all outputs if desired which can be selected by the Input Select switch on the front panel or via the built-in webserver. The webserver also provides status information for the unit.
The unit provides automatic input detection, re-clocking and cable equalisation of the input signals to 100/350 meters (HD/SD) of coax cable.
The full range of 3G, SD and HD standards are supported by the unit allowing PAL and NTSC signals up to 1080p 60Hz to be distributed.
Each output is individually buffered providing separately driven outputs for greater reliability.
As well as an AC power input, the unit also has a 12V DC input for use, for example, in outside broadcast vehicles. Both power inputs can be used to give a dual redundant power supply; whichever voltage is higher will be used.
- Compatible Standards: SMPTE-424M (3G) / SMPTE-292M (HD-SDI) SMPTE-259M-AC1 (SD-SDI) / SMPTE 344M /DVB-ASI at 270Mb/s
1. Other rates will be passed without reclocking. - Impedance: 75Ω terminating
- Equalisation: Up to 100m of Belden 1694A at 1.485Gbps . Up to 350m of Belden 1694A at 270 Mbps
- Data Rates: 143, 270, 1483.5,
- Fully supported Passed but not reclocked: 1485, 2967 & 2970Mbps 177, 360 & 540Mbps
- Reclocking & Equalisation: Automatic
- Resolution: Automatic
- Return Loss: >15dB at 1500MHz
- Output Jitter: <0.2UI
- Signal Level: 800mV ±10%
Front Panel Indicators
- Power LED: Red indicates power is present
- Input Status 1 & 2 LEDs: Green indicates signal is present, flashing red indicates signal is
missing.
Rear Panel Connections
- 3G/HD/SD-SDI Video Input: 2 x BNC (Unbalanced)
- 3G/HD/SD-SDI Video Outputs: 8 x BNC (Unbalanced)
- Ethernet Port: RJ45 with status LEDs
- Power Supply: AC: Filtered IEC, continuously rated 85-264VAC, 47-63Hz, fused, max 10W
- Fuse Rating:DC: Anti-surge fuse 1A 20 x 5mm 12V 300mA max, DC supply, 2.5mm socket fused
Equipment Type
- RB-VHDA2x4: 3G/HD/SD-SDI 2 inputs, 8 output video distribution amplifier
Physical Specification
- Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.3cm (H)
19” (W) x 4.3” (D) x 1.7” (H) (1U) - Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.8” (H) - Weight: Nett: 1.3kg Gross: 1.9kg / Nett: 2.9lbs Gross: 4.2lbs
