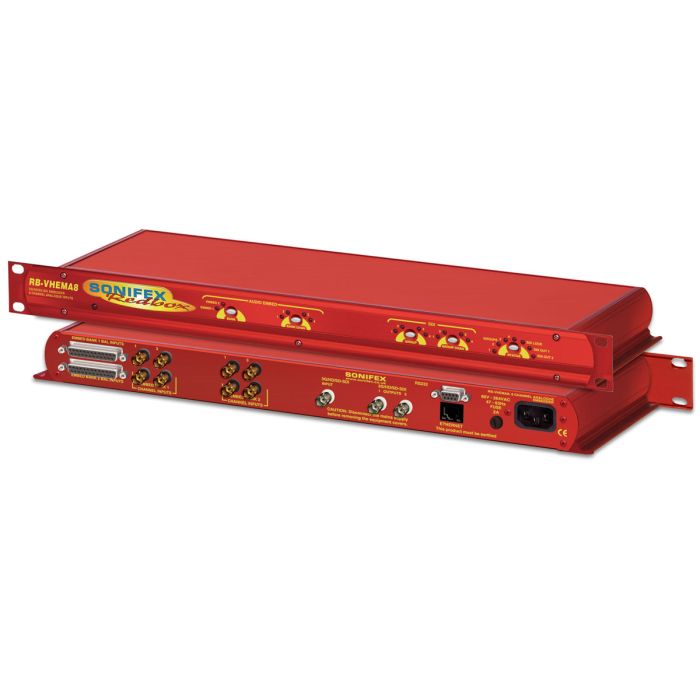

Sonifex RB-VHEMA8 3G/HD/SD-SDI Embedder, 8 Channel Analogue Inputs
3G/HD/SD-SDI Embedder 8 Channel Analogue Inputs
MPN: RB-VHEMA8 SKU: RB-VHEMA8
The RB-VHEMA8 is an 8 channel analogue embedder contained in a single 19-inch rack unit. The unit can selectively embed up to 8 analogue channels onto either of the two output video paths which are sent to the re-clocked SDI outputs. It also has the capability to allow audio groups to be deleted or passed through on each of the two video paths prior to the embedding process.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The RB-VHEMA8 is an 8 channel analogue embedder contained in a single 19-inch rack unit. The unit can selectively embed up to 8 analogue channels onto either of the two output video paths which are sent to the re-clocked SDI outputs. It also has the capability to allow audio groups to be deleted or passed through on each of the two video paths prior to the embedding process.
The embedding channel routing is controlled via the front panel buttons and indicators. There is also LED indication for SDI input status and audio group presence.
The unit can be remote controlled via Ethernet or serial port connections using the Sonifex SCi software.
It has a triple rate SDI receiver with automatic input rate detection and equalisation along with two re-clocked and individually buffered SDI outputs. It supports the full range of single link 3G, SD and HD standards from NTSC and PAL up to 1080p 60Hz.
There is independent level control for each analogue input channel, which can be adjusted from -24dB through to +24dB in 0.5dB steps. The analogue inputs have three full-scale gain settings which can be set via jumpers situated inside the unit. Allowable settings are +12dBu, +18dBu and +24dBu for FSD. The balanced and unbalanced input connections are paralleled, allowing one type to be used per input.
Front Panel Controls & Indicators
- Embed Bank Select: Bank 1 or 2
- Bank Channel Select: Channels 1, 2, 3 or 4
- Group Select: Groups 1, 2, 3 or 4
- Group Channel Select: Group channels 1,2,3 or 4
- Status: 1 x SDI input status LED / 2 x SDI output LEDs / 4 x Audio group status LEDs
Audio Specifications
- Maximum Input Level: +27dBu (balanced)
- Input Impedance: >10kΩ bridging (balanced)
- Input Levels: +12dBu, +18dBu or +24dBu for FSD (jumper selectable)
- Signal to Noise: Better than -113dBFS (RMS A-weighted at 24-bit, balanced)
- Distortion and Noise: Better than -100dB THD+N at 1kHz (balanced)
- Embed Delay: SD: 600 us / 3G/HD: 300 us
Connections
- Analogue Audio Inputs: 8 input channels via BNC (unbalanced) or D-type socket (balanced)
- Analogue Audio Connectors: 8 x BNC / 2 x 25-way D-type
- Power Supply: Universal filtered IEC, continuously rated 85-264VAC @47-63Hz, fused, max 18W
Equipment Type
- RB-VHEMA8 3G/HD/SD-SDI embedder, 8 channel analogue inputs
Common Specifications For RB-VHEMA8, RB-VHDMA8, RB-VHCMA4 & RB-VHCMD16
SDI Specification
- SDI Input: 1 x BNC, 3G/HD/SD-SDI
- SDI Outputs: 2 x BNC, 3G/HD/SD-SDI, Re-clocked
- Impedance: 75Ω
- Output Alignment Jitter: <0.2UI (3G <0.3UI)
- Output Level: 800mV +/- 10%
- Return Loss: <15dB at 1500MHz
- SDI Supported Standards: 270Mbps, SMPTE-259M-C (SD) 1.485 or 1.4835Gbps, SMPTE-292M (HD), 2.97 or 2.967Gbps, SMPTE-424M (3G), SMPTE 425M-A
- Supported Video Formats: 525/59.94 (SMPTE-125M 625/50 (ITU-R BT.656) 720p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (SMPTE-296M) 1035i/59.94, 60 (SMPTE-260M) 1080i/50, 59.94, 60 (SMPTE-274M) 1080p/23.98, 24, 25, 50, 59.94, 60 (SMPTE-274M) 1080pSF/23.98, 24, 25, 29.97, 30 (RP-211) 1080i/50 (SMPTE-295M)1080p/50 (SMPTE-295M)
- Video Delay: SD: 290 pixels / 22 us
- HD: 570 pixels / 8 us
- 3G: 570 pixels / 4 us
- Embedded Audio: 48kHz, synchronous / SMPTE-272M-ABC / SMPTE-299M
- Serial Port: RS232, 9 way D-type
- Ethernet Port: 10/100Mbps
- Fuse Rating: Anti-surge fuse 2A 20 x 5mm
Physical Specification
- Dimensions (Raw): 48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)
19” (W) x 6.2” (D*) x 1.7” (H) (1U) - Dimensions (Boxed): 59cm (W) x 27.5cm (D) x 11cm (H)
23.2” (W) x 10.8” (D) x 4.3” (H) - Weight: Nett: 1.8kg Gross: 2.3kg / Nett: 4.0lb Gross: 5.1lb
