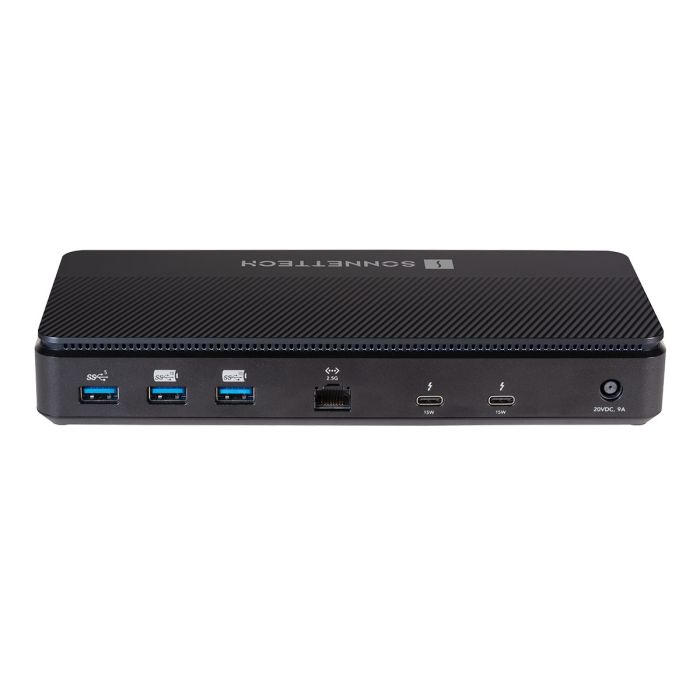

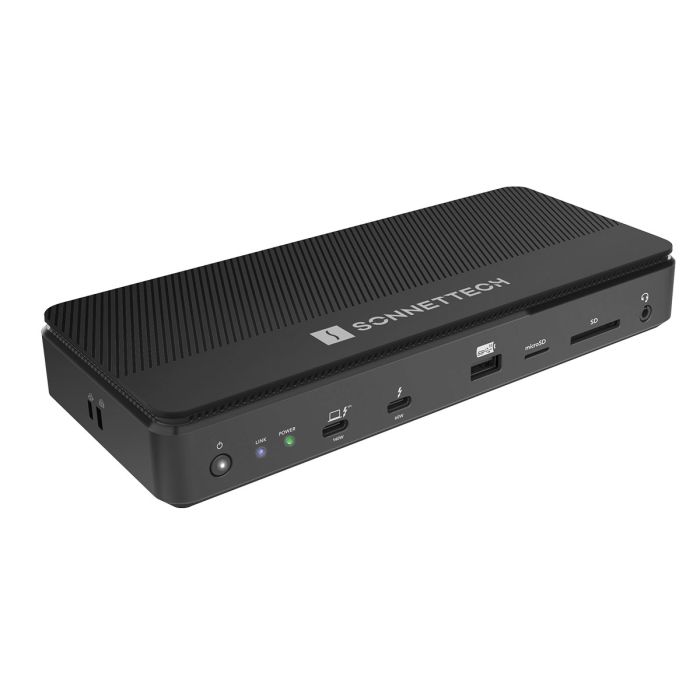

Sonnet Echo 13 Thunderbolt 5 SSD Dock - 4TB

Universal Thunderbolt 5 Dock with Ridiculously Fast Internal High Performance SSD Storage - 4TB

SKU: SONECHDK134TB5

$801.67

Sonnet Echo 13 Thunderbolt 5 SSD Dock delivers next level storage performance — 6000 MB/s with Thunderbolt 5 computers, 3400 MB/s when used with a Thunderbolt 4 or 3 computer — with your choice of pre-installed Kingston M.2 NVMe SSD storage. Connections? Echo 13 has you covered with four Thunderbolt 5 ports, four USB-A ports, one 2.5Gb Ethernet port, one headphone jack, SD and microSD card slots, plus 8K display support.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 days

Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? Echo 13 Thunderbolt 5 SSD Dock will even power it with up to 140W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Tomorrow’s Performance. Today
Echo 13 Thunderbolt 5 SSD Dock features the connections you expect from a Thunderbolt dock plus the ridiculously fast SSD storage you need. Transform a single cable connection from your computer into three Thunderbolt 5 peripheral ports. With up to 80Gb/s of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120Gb/s for higher display bandwidth, you'll revolutionize your productivity.

Internal SSD M.2 NVMe Storage
The built-in M.2 NVMe SSD adds an additional 1TB, 2TB, or 4TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD storage capacity to your system without the need to connect another device to the Echo dock or the computer. Access data at up to 6100 MB/s — ideal for pro content creation and application storage — and effortlessly store large files, media libraries, or your Time Machine backups.

Faster Ethernet Transfers Across Existing Cabling
Featuring 2.5 Gigabit Ethernet, Echo 13 Thunderbolt 5 SSD Dock supports 2.5Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch or NAS without 2.5Gb Ethernet support, the Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.

10Gbps USB Ports for Bus-powered Devices
Echo 13 Thunderbolt 5 SSD Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, two on the back— to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 13 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified for Mac, Windows, ChromeBook, and iPad Pro
Echo 13 Thunderbolt 5 SSD Dock is certified for use with Apple M series Mac computers; Thunderbolt 3 Intel Mac computers; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro tablets.

Thunderbolt Port Connections – Connect Two 8K or Three 4K Monitors
Depending on your computer’s video capability, the Echo dock’s Thunderbolt ports can support one (always 4K, 5K or 6K) monitor, two 8K monitors, or up to three 4K monitors. You can plug in Thunderbolt 3, 4 and 5 or USB-C monitors directly. Or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt-compatible adapter (sold separately).

Charge Your Laptop Without Its Power Adapter
Connected to your portable computer with the included Thunderbolt 5 cable, Echo 13 Thunderbolt 5 SSD Dock provides up to 140W of power (Power Delivery), meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

Handy Charging Ports
Echo 13 Thunderbolt 5 Dock front panel Thunderbolt 5 peripheral port provides 60W of power to quick charge your iPhone, iPad, or other device that charges via USB, even when your computer is off or sleeping. All three 10Gbps USB-A ports provide 7.5 watts of power for charging those devices, too.

Connect. Secure

Connect - Thunderbolt 5 Cable Included

Sonnet includes a Thunderbolt cable with Echo 13 Thunderbolt 5 SSD Dock that supports Thunderbolt 5’s maximum bandwidth and power charging capability. This cable is compatible with all Thunderbolt 5, 4, 3, and USB4 computers.

Lock Your Dock - Kensington Security Lock Ready

With up to 4TB of valuable data inside, you may want to secure the Echo dock with a Kensington Security Lock (sold separately).

Universal Thunderbolt 5 Dock with Ridiculously Fast Internal High Performance SSD Storage
One Cable Peripheral Connection
Instant access – plug peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.
Twelve External Interfaces
Includes four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type A charging ports, one USB 3.2 Gen 1 Type A port, one RJ45 2.5 Gigabit Ethernet port, and one 3.5 mm combo audio jack; one SD card slot and one microSD card slot.
Built-in SSD Included
1TB, 2TB, or 4TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD included.
Three Thunderbolt 5 Ports for Peripherals
Connects three Thunderbolt 5, 4, or 3 peripherals. Also supports USB4 V2, USB4, and USB3 devices.
Powerful 10Gbps USB Type A Ports
Three USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.
Connect Up to Three 4K @144Hz Displays via Thunderbolt
Connect Thunderbolt or USB-C displays directly. Supports HDMI or DisplayPort displays with Thunderbolt-compatible adapters (sold separately).
Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays @ up to 240Hz
Depending on your computer, supports up to three 4K, two 6K or 8K, or a single 4K, 5K, 6K, or 8K display.
Charge Your Laptop
Provides up to 140W through the included Thunderbolt 5 cable to power and charge your laptop.
Read SD and microSD Cards
Compatible with all SD and microSD card types; supports 320 MB/s read speeds with UHS-II SDXC cards.
Kensington Lock Ready
Safely secure your Echo 13 dock and its valuable data with a Kensington® Security Lock (sold separately). Equipped with both Kensington Security and Nano Security Slots.
Apple M Series Compatible
Supports all M series Macs.
Intel Mac and Windows Compatible
Supports Thunderbolt 3 Intel Macs; all Thunderbolt 5, most Thunderbolt 4, and USB4 Windows computers.
Chromebook Compatible
Supports Chromebook computers with Thunderbolt 5 or 4, or USB4 ports.
Apple M Series iPad Pro Compatible
Supports all M series iPad Pro tablets.

Compatibility

Mac Compatibility:
- Mac (M1/M2/M3) supports one display
- Mac (M3 laptop) supports a second display in closed clamshell mode
- Mac (M1/M2/M3/M4 Pro, M1/M2/M3/M4 Max, M1/M2 Ultra, or M4) supports two displays
- Mac (Intel) with Thunderbolt 3 ports supports two displays
- macOS 15+
- macOS Sequoia compatible
- 8K displays not supported
Windows Compatibility
- Windows computer with a Thunderbolt 5 port and a discrete GPU supports three displays
- Windows computer with a Thunderbolt 5 port and integrated graphics supports two displays
- Windows computer with a Thunderbolt 4 port (Intel CPU with integrated Thunderbolt controller, typically 12th Gen processor or newer) supports two displays
- Windows computer with a USB4 port supports one display (a few may support two)
- Windows 11 (24H2 or later)
Chromebook Compatibility
- Chromebook with a Thunderbolt 5 or 4 port, or USB4 port
iPad Pro Compatibility
- M series iPad Pro supports one mirrored monitor
HDR Compatibility
- See Apple Support Note for Mac HDR information
- If your Windows computer supports HDR, see this Microsoft Support Note for Windows HDR information

Hardware

Warranty: 2-year
Form Factor: Thunderbolt dock
Internal Built-in SSD Storage:
- Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD
- Configured with 1TB, 2TB, or 4TB module
External Connectors:
- Four Thunderbolt 5 ports
- Three USB3.2 Gen2 (10Gbps)Type A charging ports
- USB 3.2 Gen 1 (5Gbps) Type A port
- RJ45 2.5 Gigabit Ethernet port
- 3.5 mm combination audio headphone/microphone jack
- UHS-II SD card slot
- UHS-II microSD card slot
- Power connector
Thunderbolt 5 Computer Port:
- Power Delivery: Provides laptop charging up to 140W
- Cables Supported: Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Peripherals Ports:
- Connectivity: With USB-C connector
- Peripherals Supported:
  - Thunderbolt 5
  - Thunderbolt 4
  - Thunderbolt 3
  - USB4 v2
  - USB4
  - All USB 3, 2.0 and 1.1 devices
  - USB hubs
  - Thunderbolt 4, Thunderbolt 3, and USB-C monitors
  - DisplayPort and HDMI monitors
- Charging (Front Panel Peripheral Port):
  - 60W capacity to fast charge iPad, iPhone, or other device
  - USB Type-C charging
  - Supports simultaneous charging and syncing
- Charging (Back Panel Peripheral Ports):
  - 15W capacity each to charge iPad, iPhone, or other device
  - USB Type-C charging
  - Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports:
- Connectivity: With USB Type A connector
- Peripheral Supported:
  - USB 3, 2.0, and 1.1 devices
  - USB hubs
- Data Transfer Rate: USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps
- Charging:
  - 7.5W capacity to charge iPad, iPhone, or other device
  - USB Battery Charging 1.2–compliant
  - Supports simultaneous charging and syncing
USB 3.2 Gen 1 Type A Port (Rear Panel):
- Connectivity: With USB Type A connector
- Peripherals Supported:
  - USB 3, 2.0, and 1.1 devices
  - USB hubs
- Data Transfer Rate: USB 3.2 Gen 1 (previously USB 3.1 Gen 1, USB 3.0): 5Gbps
RJ45 (Ethernet) Port:
- Network Support: Supports 2.5GBASE-T, 1000BASE-T, and 100BASE-TX network speeds and Auto-MDI/MDI-X
- Standard: Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications
- Packets: Maximum packet size: 9000 bytes (Jumbo packets)
- Chip: Realtek RTL8156B
SD and microSD Card Slots:
- Cards Supported:
  - SD, SDHC, SDXC
  - microSD, microSDHC, and microSDXC
Power Delivery: Provides laptop charging up to 140W
Power Adapter: Universal 180W, 100-240V AC, 50-60 Hz
Operating Temperatures: 0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH):
- Dock: 8.7 x 3.8 x 1.3 in. (22.0 x 9.7 x 3.4 cm)
- Power Supply: 3.2 x 6.6 x 1 in. (8.2 x 16.8 x 2.6 cm)
Weight:
- Dock and Power Supply: 1.75 lbs (0.8 kg)
- Complete Package: 2.65 lbs (1.2 kg)
Compliance:
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety
- VCCI-B certified
- FCC Part 15, Subpart B
- CISPR 32 / EN 55032
- Power Supply (PSE certified; UL certified)
