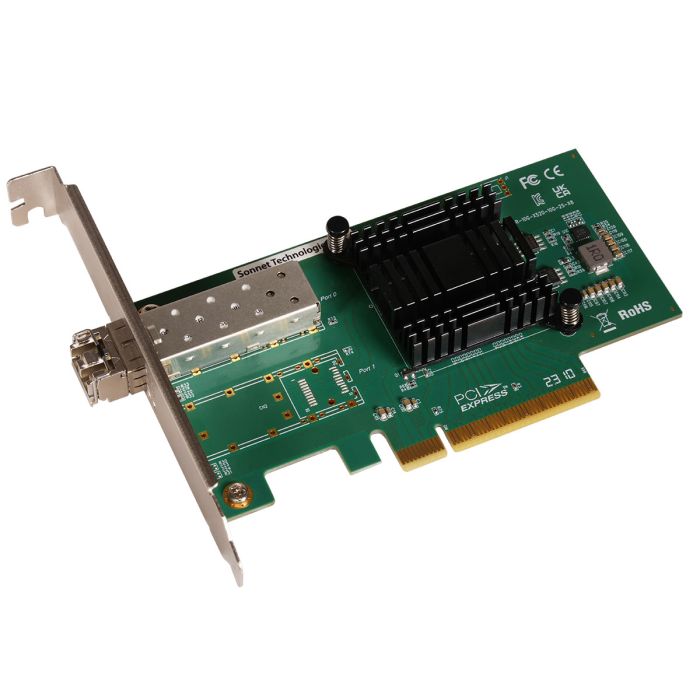

Sonnet Solo10G SFP+ V2 PCIe Card

Single-port Optical 10 Gigabit Ethernet PCIe Card with SFP+ Transceiver

SKU: SON-G10E-SFP-1XN-E3

$91.67

Single-port Optical 10 Gigabit Ethernet PCIe Card with SFP+ Transceiver.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

Ultra-fast Optical 10GbE Network Connection
As needs for faster data transfer speeds and greater bandwidth grow — especially for tasks such as 4K video editing, and storing files to and retrieving them from high performance shared storage — 10 Gigabit Ethernet (10GbE) connectivity has become a necessity. For many users, the 10Gb Ethernet network infrastructure of choice is optical 10Gb Ethernet, delivering ten times the performance of the standard Gigabit Ethernet most computers offer and greater transmission reliability over long distances. Sonnet makes it easy to add cost-effective 10GbE fiber optic connectivity to your Mac Pro, Windows, or Linux computer or server — check out Solo10G® SFP+ V2 PCIe Card.

Includes SFP+ Transceiver - Simple Network Connection
Solo10G SFP+ V2 PCIe Card includes a short-range multi-mode fiber SFP+ transceiver to enable easy connection to your optical 10GbE network at distances up to 300 meters.

Easy Set-Up - Higher-performance Computing
Solo10G SFP+ V2 PCIe Card connects your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple — just download and install a driver, install Solo10G SFP+ V2 PCIe Card into one of your computer’s or Sonnet Thunderbolt™ expansion system’s x8 PCIe slots, and then connect the card to the network switch or directly to 10GbE-enabled storage. Configure the adapter’s settings through macOS Network control panel, Windows Device Manager, or Linux command line (or graphical utility). This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Adds Optical 10GbE Connectivity to 2023 or 2019 Mac Pro Towers, Windows PCs, or Linux Servers—Powerfully simple way to add high-performance 10GbE connectivity via optical cable to your computer with PCIe slots.
Cost-Effective—Includes 10GBASE-SR (short-range) SFP+ transceiver and mounting brackets and supports connection up to 300 meters to 10GbE infrastructure via LC multi-mode fiber optic cable (sold separately).
Simple Setup and Configuration—Download a driver and then configure using your computer’s operating system network device configuration tools.
Optimized for Thunderbolt—Ideal for use in Sonnet’s Echo and xMac Thunderbolt-to-PCIe card expansion systems.

Compatibility

Mac Compatibility

Mac Pro 14,8 (2023)
Mac Pro 7,1 (2019)
macOS 14+
macOS Tahoe compatible

Windows Compatibility

Windows 11
Windows Server 2022, 2019

Linux Compatibility

Linux Kernel 6.1, 6.12

Thunderbolt Expansion System Compatibility

PCIe card installed in a Thunderbolt expansion system with an available PCIe slot
Any Mac, Windows, or Linux computer with Thunderbolt ports

Hardware

Warranty: 2-year
Form Factor: Low-profile x8 PCIe 3.1 card
External Connectors: SFP+ socket (with short-range SFP+ optical transceiver)
10GbE Controller: Intel x520
Network Support: 10Gb/s
Packets: Maximum packet size: 15872 bytes (jumbo frames)
Data Rates Supported per Port: 10Gb/s, 1Gbps
Advanced Features
- Flow control support
- MSI (Message Signaled Interrupts)
- RSS (Receive-Side Scaling)
- Multicast filtering
- 64-bit address support for systems using more than 4GB of physical memory
- Wake-on-LAN not supported
Stateless Offloads
- TCP, UDP, and IPv4 checksum offloading
- TSO (TCP Segmentation Offload, AKA Large Send Offload)
- TRO (TCP Received Offload)
Compliance
- RoHS 3 (Directive 2015/863)
- IEC62368-1 and IEC62368-2 Safety
