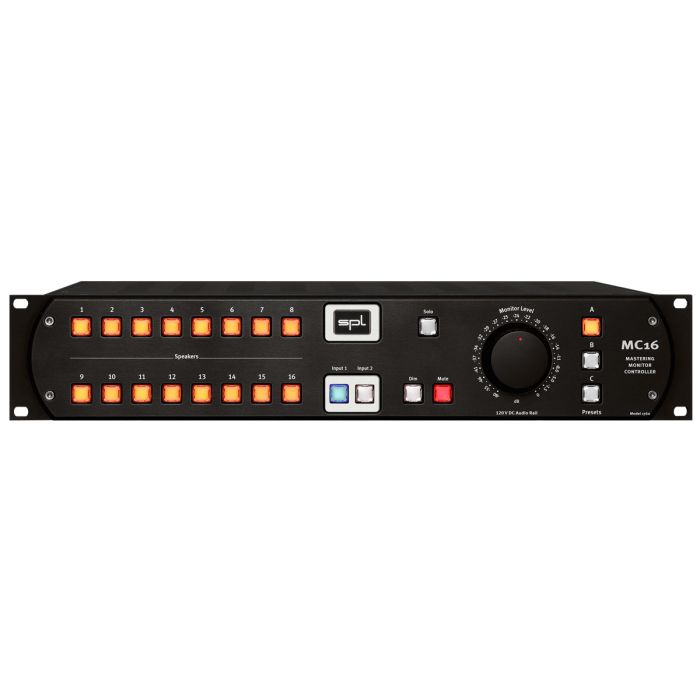

SPL MC16 16 Channel Mastering Monitor Controller
16 Channel Mastering Monitor Controller for Immersive Audio
MPN: SP-MC16/B SKU: SP-MC16/B
The MC16 from SPL is a 16 channel monitor controller designed specifically for mastering houses demanding the highest grade of reference audio possible.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Embracing Immersive Audio
As the demand for formats such as Dolby and Auro rises, SPL are developing intuitive tools to accommodate the explosion of immersive audio processing duties now required by mastering studios.
With the MC16, SPL are proud to present a 16 channel reference grade monitor controller featuring custom designed 16-gang precision pots, fabulously professional to the touch, and offering function ease of recall between different tracks and sessions.
DMC Friendly
The MC16 has been designed to integrate flawlessly with SPL’s DMC mastering console and allows mastering engineers to work with all major audio playback formats, each at the same reference grade level without the need to patch or repatch monitoring speakers.
The 120V Rail Way
As with all SPL high-end mastering facing equipment, the MC16 operates solely on their proprietary 120V rail technology, boasting a voltage four times higher than a traditional operational amplifier semiconductor circuit.
The harnessing of 120V boosts headroom, dynamic range, and overall sonic performance to a level absolutely inline with the demands of modern mastering and immersive audio studios – no contest.
- Analogue 16-channel monitor controller
- Reference grade audio quality for mastering purposes
- Integrates with SPL's DMC Console
- Compatible with immersive audio formats
- Powered by SPL 120V DC audio rail

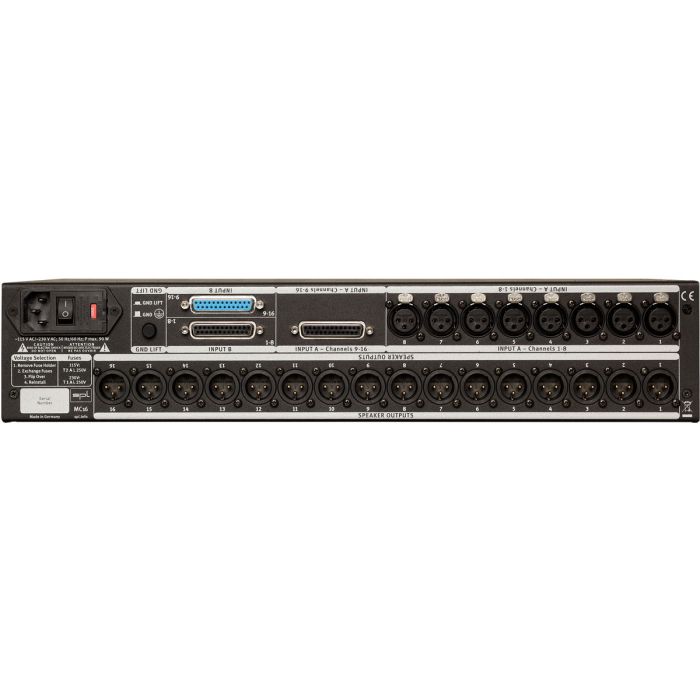

- 16x speaker outputs on XLR
- 3x speaker array and 3x solo presets
- Switchable per-channel solo, dim, and mute functions
- 2U 19” rackmountable
Performance
- Max Input: +32.5 dBu
- Input Impedance: 20 kOhm (sym.)
- Max Output: +32.5 dBu
- Output Impedance: ‹ 600 Ohm (sym.)
- Noise: -102.4 dBu (A-weighted); -100,8 dBu (CCIR)
- THD: › 112 dB @ 24dBu
- Common Mode Rejection: › -82 dBu @ 0 dBu
- Crosstalk: › -100 dBu (adjacent channels @ 1kHz)
- Transmission Bandwidth: 10 Hz-200 kHz
Power
- Consumption: 0.29 Amp, 230V/50Hz, 50 Watt, 65.7 VA
- Fuses: 1 Amp @ 230V/50Hz
Physical Properties
- Dimensions: 482 x 132 x 34mm
- Weight: 8.4kg
