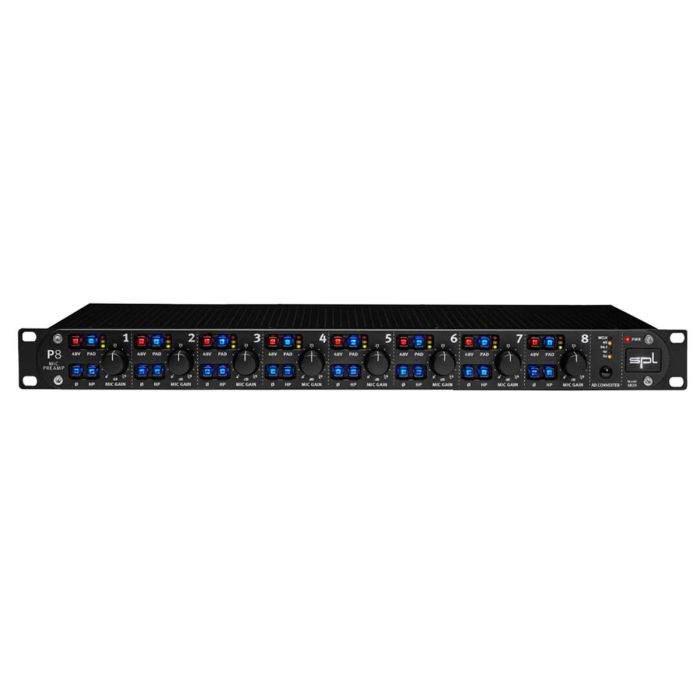

SPL P8 Octo-Channel Preamplifier

Microphone Preamplifier

SKU: 11002002

$1,307.50

P8 is equipped with eight identically designed microphone preamplifers. All eight preamps have a discrete design – without ICs, made of individual transistors. This is typical for absolute high-end preamplifers and is one of the main reasons for the outstanding sound.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

Besides an analog gain control for adjusting the preamplifcation, each of the eight preamps features an individually switchable phantom power supply (48 V), a PAD switch, a phase inversion function and a switchable analog high-pass flter.

P8 paves the way for high-quality multi-channel recording sessions.

8-channel mic preamplifier and A/D converter
Discrete transistor circuit design

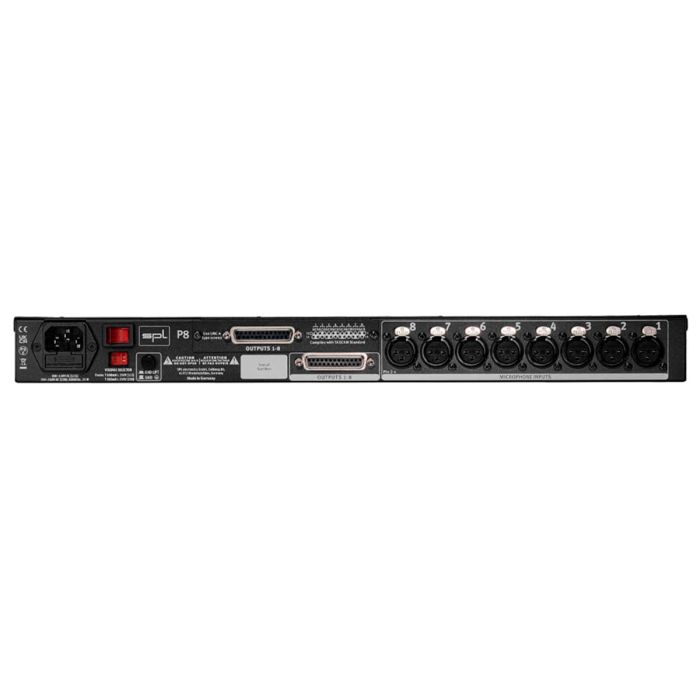

Per-channel balanced XLR inputs
Per-channel 20dB pad, polarity reverse, 48V phantom power, and 80Hz, 6dB/octave HPF
8-channel analog output via DB-25 port
Installed 8-channel A/D converter with ADAT outputs
Meticulously crafted in Germany

Max input: 13.5 dBu
Impedance: 10 kO in, 75 O out
Frequency Range: 15 Hz – 200 kHz
EIN: -124 dBu
Noise: -94 dBu @ 30 dB gain
CMRR: $lt; 78 dB @ 1 kHz
THD+N: 0.003 % @ 39 dB gain
