SPL SMC 7.1 Surround Monitor Controller (Black)
7.1 Surround Monitor Controller
MPN: SP-SMC71/B SKU: SP-SMC71/B
Taking the success of SPL’s renowned SMC controller a step further, the SMC 7.1 is a pure analogue studio monitor controller designed for 7.1 surround and stereo monitoring applications.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Flexible Routing Options
Each of the SMC 7.1’s two balanced 7.1 inputs and two balanced stereo inputs can be routed directly to the balanced 7.1 output simultaneously.
Additionally, stereo signals of the active input can also be routed direct to the stereo output for an entirely separate mix.
Built-In Headphone Amp
The SMC 7.1’s high quality built-in headphone amplifier circuit enables quality listening via headphones as well as surround studio monitors.
Single channels can be routed from the 7.1 mix direct to the headphone output, or alternatively a stereo-mix from the active input can also be routed the same way.

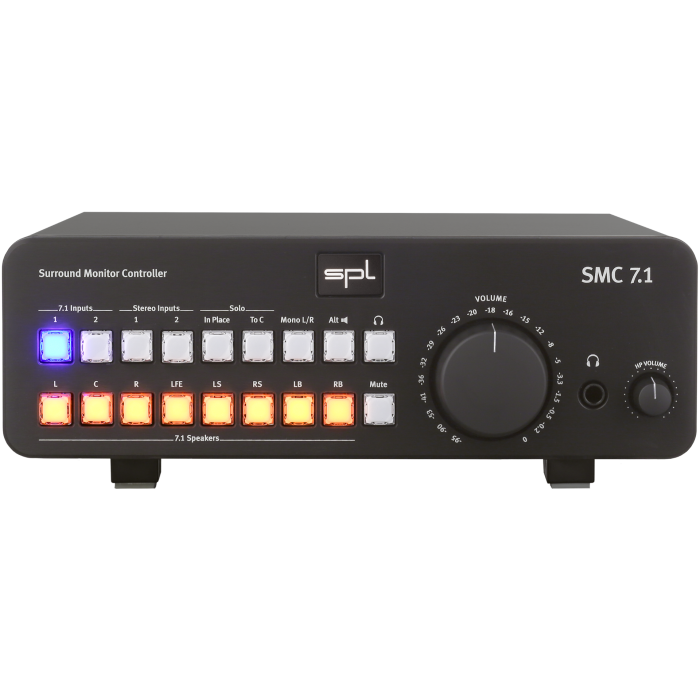

Meticulous Design
The front-end control surface of the SMC 7.1 is optimised for ergonomic efficiency, featuring 8-ganged potentiometer controls and a well thought-out layout for ease of operation including rapid adjustments.
The SMC 7.1 is designed to stand up to even the most demanding 7.1 surround sound mixing scenarios, providing outstanding dynamic range, high quality analogue circuitry and an impressive frequency response of up to 100 kHz.
- Extensive I/O and routing options
- 2x balanced 7.1 inputs
- 2x balanced stereo inputs
- Balanced 7.1 output
- Balanced stereo output with sub out
- Solo in place / solo to center
- Built-in headphone amplifier
- Analogue meter output
- Internal power supply

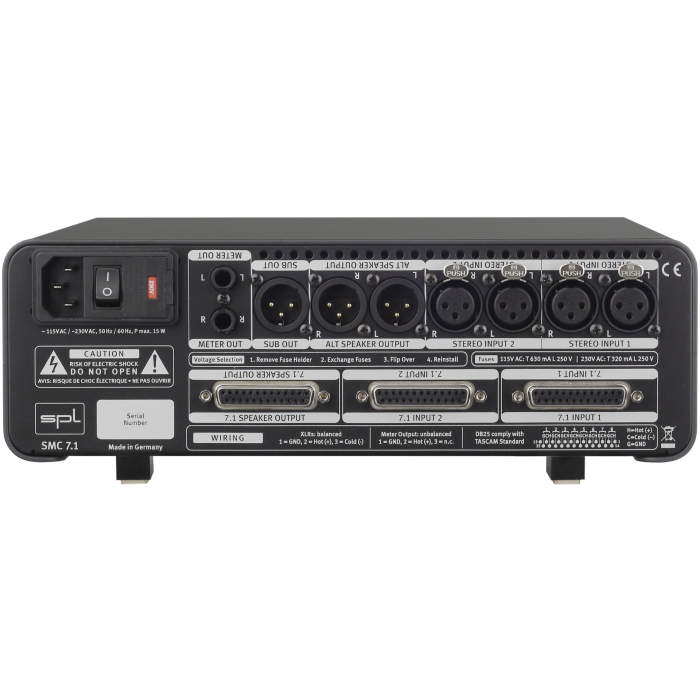

Connectors
- Inputs: DB25, XLR
- Outputs: DB25, XLR
- Headphone Output: 6.35mm TRS jack
Performance
- Impedance: 20 kOhms (DB25)
- Common Mode Rejection: -82 dB (DB25)
- Max Input Level: +22 dB
- Frequency Range: 10 Hz - 150 kHz @ -3 dB (DB25)
- Crosstalk: -92 dB @ 1 kHz (DB25)
- THD: 0.001% @ 0 dBu, 1 kHz, 100 kOhms load (DB25)
- Noise: -93 dB A-weighted (DB25)
- Dynamic Range: 115 dB (DB25)
Power
- Analogue: +/- 18 V PSU
- Voltage: 230 V AC / 50Hz or 115 V AC / 60Hz (switchable)
- Fuses: 230 V = T 500 mA; 115 V = T 1 A
- Consumption: max 25 VA
Physical Properties
- Dimensions: 278 x 103 x 333mm (WxHxD)
- Weight: 4.1 kg
