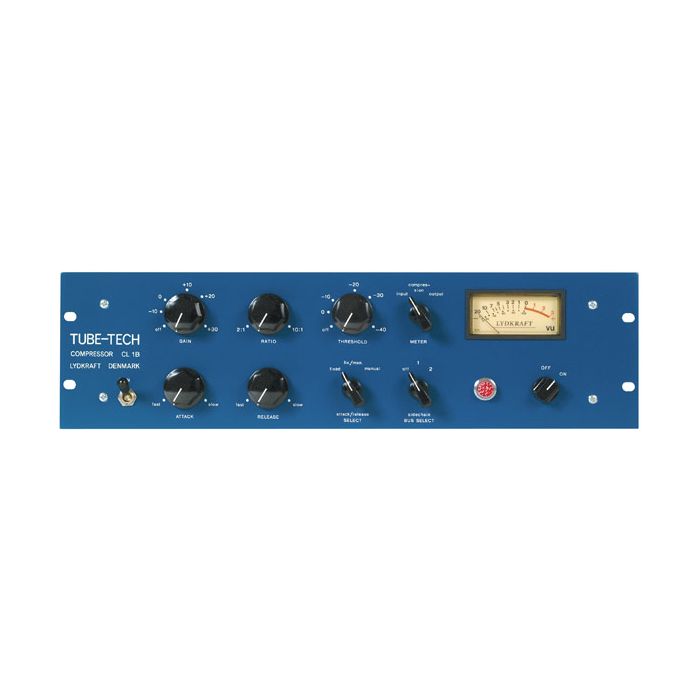

Tube-Tech CL1B
Single Channel Tube Compressor
SKU: TUBE-CL1B
The TUBE-TECH CL 1B Compressor is an optical, all tube based compressor targeted at single-track studio recordings: It is equally suited for delicate vocal recordings as well as critical instrument recordings such as lead guitar, drum solos etc.
The TUBE-TECH CL 1B Compressor features a gain-reduction element, positioned immediately after the input transformer.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Please check availability
The TUBE-TECH CL 1B Compressor is an optical, all tube based compressor targeted at single-track studio recordings: It is equally suited for delicate vocal recordings as well as critical instrument recordings such as lead guitar, drum solos etc.
The TUBE-TECH CL 1B Compressor features a gain-reduction element, positioned immediately after the input transformer. It is controlled by the sidechain amplifier, which also contain the two time control circuits – one for fixed and one for variable Attack/Release. The two time-controllers can either be used separately or combined. This circuit contains semiconductor OP-amps for the entire control.
The gain-reduction element is followed by a tube-based push-pull amplifier with variable gain up to 30 dB. A dedicated Bus selector with three positions (Off, Bus 1, Bus 2) is used whenever you want to link several compressors together. Input and output transformers have a static-screen between the primary and secondary wirings. Both Input and Output are balanced as well as fully floating.
• All tube-based push-pull amplifier
• Multiple interconnection of several compressors via two busses
• VU-meter for monitoring input, compression and output
• Continuously variable attack and release time
• Gain Range (off to +30 dB)
• Variable Threshold (off to -40 dBu)
• Frequency response @ -3 dB: 5 Hz to 25 kHz
• Low noise: < -75 dBu @30 dB gain
• Clickless bypass switch
