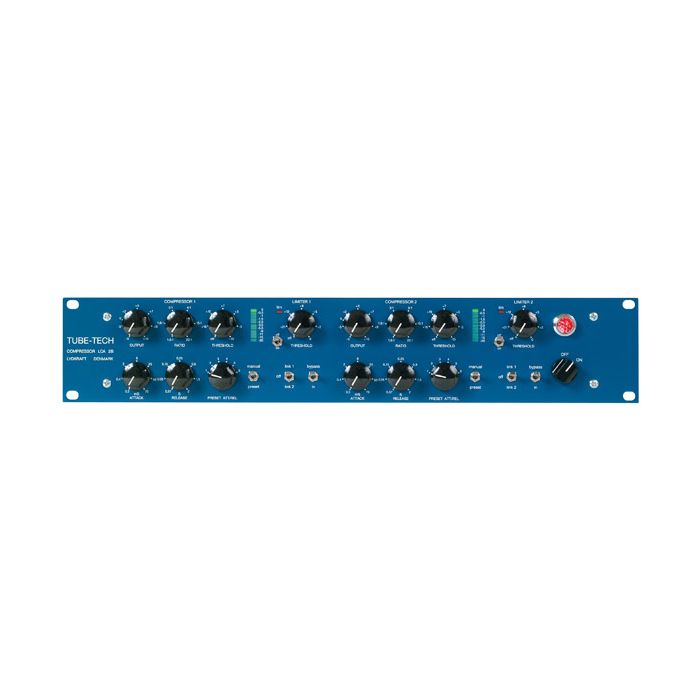

Tube-Tech LCA2B
2-Channel Stereo Compressor-Limiter
SKU: TUBE-LCA2B
$3,250.00
The TUBE-TECH LCA 2B is a two-channel unit with an independent compressor and limiter per channel.
The unit is all tube based (except for the power supply and side chain circuit). The VCA (1 dual triode) is placed between the input transformer and the output stage (2 dual triodes).
The unit is all tube based (except for the power supply and side chain circuit). The VCA (1 dual triode) is placed between the input transformer and the output stage (2 dual triodes).
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually ships in 3-5 days
The TUBE-TECH LCA 2B is a two-channel unit with an independent compressor and limiter per channel.
The unit is all tube based (except for the power supply and side chain circuit). The VCA (1 dual triode) is placed between the input transformer and the output stage (2 dual triodes).
The audio signal is picked up after the VCA and fed to the side chain circuit. The control signal from the compressor and from the limiter is combined and sent to the link switch and to the control amp, which feeds the VCA. The two bi-directional link busses are accessible at two 1/4" stereo jack sockets on the rear panel. The channels can be linked together for stereo applications and also linked to other LCA 2B's via the two link busses and a standard stereo jack/jack cord.
The compressor has six att/rel presets ( Fairchild time constants ) as well as manual control. The limiter att/rel is fixed. The LED display is fed from the control amp. The limiter LED is fed from the limiter buffer.The audio path is fully symmetrical from input to output. Input and output have fully floating transformers. All DC voltages are stabilized, except the anode voltage for the output stage.
The unit is all tube based (except for the power supply and side chain circuit). The VCA (1 dual triode) is placed between the input transformer and the output stage (2 dual triodes).
The audio signal is picked up after the VCA and fed to the side chain circuit. The control signal from the compressor and from the limiter is combined and sent to the link switch and to the control amp, which feeds the VCA. The two bi-directional link busses are accessible at two 1/4" stereo jack sockets on the rear panel. The channels can be linked together for stereo applications and also linked to other LCA 2B's via the two link busses and a standard stereo jack/jack cord.
The compressor has six att/rel presets ( Fairchild time constants ) as well as manual control. The limiter att/rel is fixed. The LED display is fed from the control amp. The limiter LED is fed from the limiter buffer.The audio path is fully symmetrical from input to output. Input and output have fully floating transformers. All DC voltages are stabilized, except the anode voltage for the output stage.
Compressor
• Variable ratio from 1,6:1 to 20:1
• Variable threshold: off to 10 dBu
• Selection between six presets and manual controlled att/rel
Limiter
• Variable threshold: off to 0 dBu
• On/off switch
• LED indication
General
• Separate compressor and limiter
• Frequency response @ -3 dB: 5 Hz to 50 Khz
• Low noise: < -85 dBU @ 10 dB gain
• Output gain control
• Clickless bypass relay
• LED display for gain reduction
• Variable ratio from 1,6:1 to 20:1
• Variable threshold: off to 10 dBu
• Selection between six presets and manual controlled att/rel
Limiter
• Variable threshold: off to 0 dBu
• On/off switch
• LED indication
General
• Separate compressor and limiter
• Frequency response @ -3 dB: 5 Hz to 50 Khz
• Low noise: < -85 dBU @ 10 dB gain
• Output gain control
• Clickless bypass relay
• LED display for gain reduction
