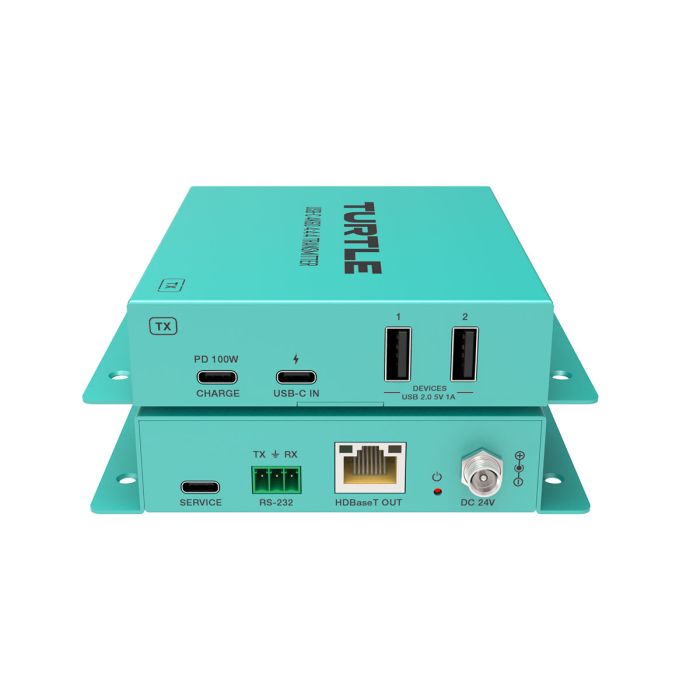

Turtle AV USB-C and 4K60 video Extender Kit. Buy 5 Get 1 Free Bundle
USB-C 4K60 4:4:4 video and USB 2.0 Extender Kit over CAT. Includes Host & Device Extenders.
SKU: TAV-USBEXTKIT2-PROMO
The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered.
BUY 5, GET 1 FREE PROMOTIONAL BUNDLE. Limited Time Only.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered.
Go long. Or go longer.
4K60 goes long. 4K30 goes longer. Whichever you choose the video is in 4:4:4 so your computer screen looks perfect on the big screen.
Teams and Zoom all day baby.
The PD power pass through allows for an external USB power brick up to 100W to pass through power to the USB-C video connection, delivering power the device that’s plugged in. No more panic moments worrying about your device’s power, instead you can worry about how much coffee you need for those looooong meetings.
Tx & Rx? Host & Device? Both.
The Turtle AV USB Extender kit with 4K60 video is truly a product marketers’ worst nightmare. It’s a Tx and Rx set up for video, whilst being a Host and Device set up for USB 2.0 extension.
Power over Cable. POC.
Powering the actual units is super easy with PoC. Simply power either end and it will power the other unit over the CAT cable. That’s why we only included one power supply.
USB-C Video input. USB 2.0 extension.
4K video comes in over USB-C whilst offering USB 2.0 extension.
5 Year Warranty with Advance Replacement.
Turtle proudly offers a 5 Year warranty on our USB Extender devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.
TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
- 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
- 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
- High Dynamic Range pass through
- 100W USB-C PD port for charging
- Power over Cable (PoC) for simplified installs
- API control for advanced system integration
- Plug-and-play compatibility with universal device support
- Subframe latency over a single CAT cable
- Audio pass through
HDMI
- HDMI 2.0b
HDCP
- HDCP 2.3
USB
- USB 2.0
Video Bandwidth
- 18Gbps
Video Resolution
- Up to 4K@60Hz (4:4:4 8bit)
Color Space
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
- 8/10/12bit
HDR
- HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
- USB-C/HDMI passthrough:
- LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD
- Master Audio and DTS:X
Transmission Distance
- 4K60Hz (4:4:4 8bit) signal up to 130ft/40m
- 4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable
- USB 2.0 pass through up to 230ft/70m, connecting to 4 USB devices to the receiver
ESD Protection
- IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

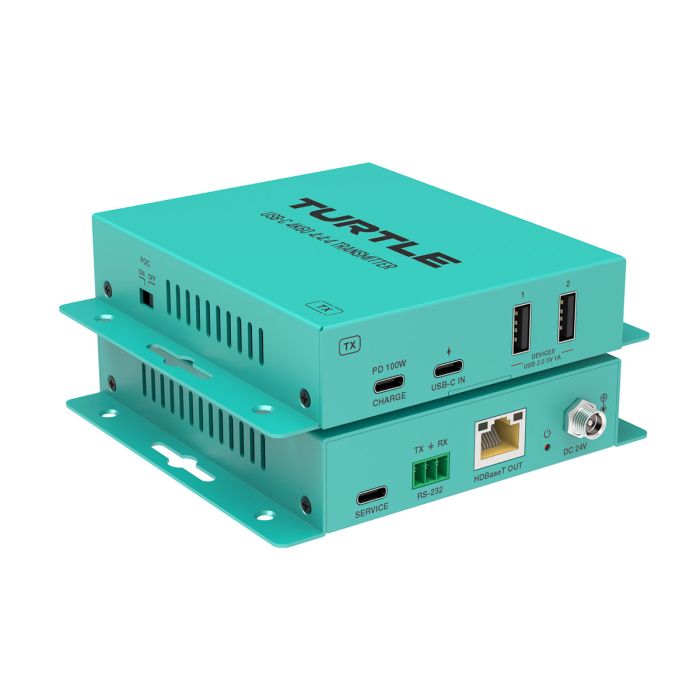

Transmitter

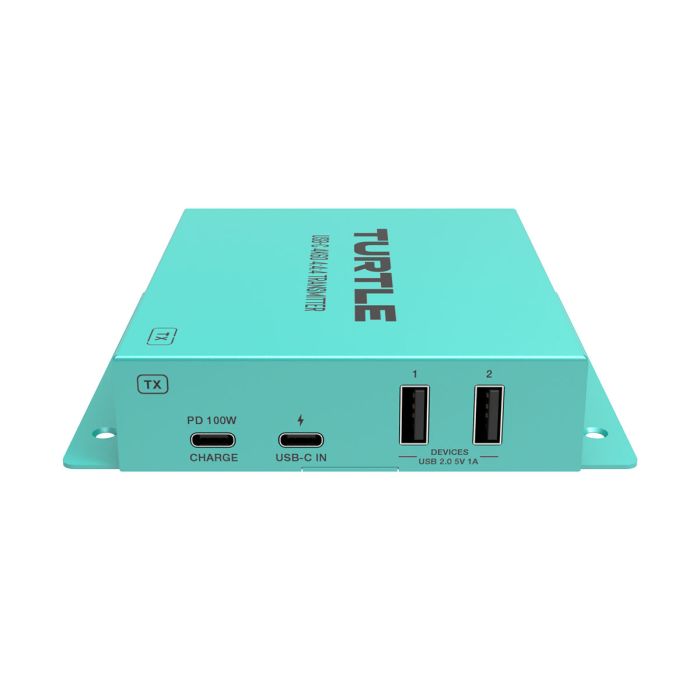

Front Panel
- 1x CHARGE [USB Type C, 24-pin female]
- 1x USB-C IN [USB Type C, 24-pin female]
- 2x USB 2.0 DEVICES [USB Type A, 4-pin female]

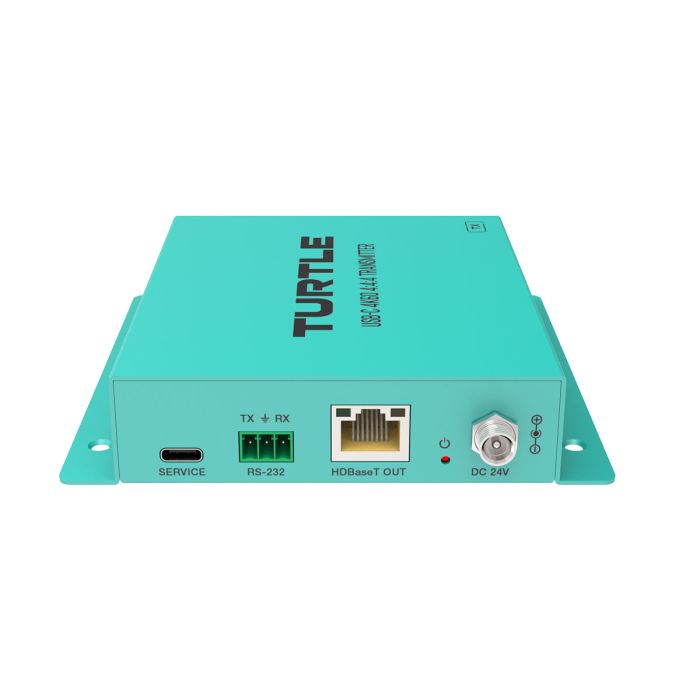

Rear Panel
- 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
- 1x RS-232 [3-pin phoenix with 3.5mm pitch]
- 1x HDBaseT OUT [RJ45 connector, 24V PoC]
- 1x Power LED [Red LED, Power indicator]
- 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel
- 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]
Receiver
Front Panel
- 1x HDMI OUT [HDMI Type A, 19-pin female]
- 1x USB 2.0 DEVICES [USB Type C, 12-pin female]
- 3x USB 2.0 DEVICES [USB Type A, 4-pin female]
Rear Panel
- 1x SERVICE [USB-C with USB 2.0 only, 12-pin female, firmware upgrade port]
- 1x RS-232 [3-pin phoenix with 3.5mm pitch]
- 1x HDBaseT IN [RJ45 connector, 24V PoC]
- 1x Power LED [Red LED, Power indicator]
- 1x DC 24V [24V/2.7A, 19mm locking connector]
Side Panel
- 1x PoC ON/OFF [1-pin DIP switch, 24V PoC ON/OFF selection]
Mechanical
Housing
- Metal
Color
- Turtle Aqua
Dimensions
- Transmitter/Receiver: 120mm [W] x 113mm [D] x 25.5mm [H]
Weight
- Transmitter: 353g, Receiver: 352g
Power Supply Input
- AC 100 – 240V 50/60Hz
Output
- DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Power Consumption
- TX/RX with full USB devices: 51.36W
- TX/RX without USB devices: 10.08W
Operating Temperature
- 32°F – 104°F / 0°C – 40°C
Storage Temperature
- -4°F – 140°F / -20°C – 60°C
Operating Humidity
- 20% – 80% relative humidity, non-condensing
Storage Humidity
- 10% – 90% relative humidity, non-condensing
