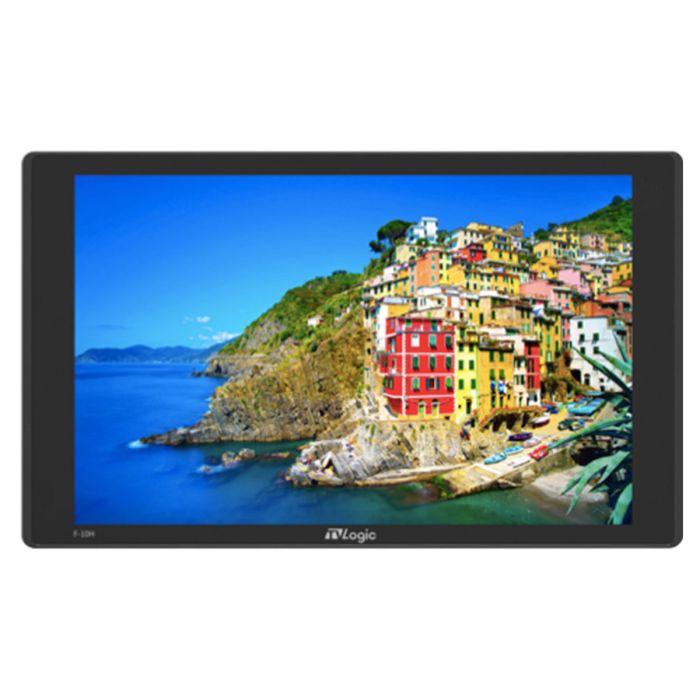

TV Logic F-10H Field Monitor

10” FHD High Brightness Field Monitor

MPN: F-10H SKU: F-10H

$2,229.17

With 1400 nits of brightness, the F-10H is the latest 10” monitor in the rugged and reliable F-series.
This 10” Full HD display offers advanced features such as Sharpness and Peaking Boost, enhancing visibility and precision when evaluating light and colour.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 3-5 Days

10”, Full HD Resolution (1920 x 1200)
4K Compatible
Max Luminance 1400nits
DCI-P3 Coverage 95%
Tempered Glass Treatment
HDR (PQ / HLG / Slog3)
Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)
Custom 3D-LUT Import
Sharpness + Peaking Boost
ARRI Metadata Display
Scan / Anamorphic Desqueeze / Zoom / Split Zoom
3 x 3G SDI (1 x 3G SDI Selectable I/O)
HDMI SDI Cross Conversion
Luma(Y’) Zone Check (Zebra / Color) • H/V Flip, Auto Flip
Horizontal Meter
Waveform / Vectorscope
DC 12V ~ 34V

Size: 10,1”
Resolution: 1920 x 1200 (16:10)
Pixel Pitch: 0,1128(H) x 0,1128(V) mm
Color Depth: 16.7M Colors (8 bit)
Viewing Angle: 170°(H) / 170°(V)
Brightness: 1400cd/m2
Contrast Ratio: 1100 : 1
Display Area: 216.58(H) x 135.36(V) mm

Input

SDI:
- 1 x 3G-SDI Input
- 1 x 3G-SDI In/Out Selectable
HDMI
- 1 x HDMI 2.0 Input

Output

SDI: 1 x 3G-SDI Output (HDMI-to-SDI Conversion Output)
HDMI: 1 x HDMI Output (SDI-to-HDMI Conversion Output)

General

Audio In: Embedded Audio
Audio Out: Analog Stereo (3.5mm Phone Jack)
Power: DC 12V 1.6A
Power Consumption: 20 Watts
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Dimensions

Main Body: 258.0 x 154.0 x 29.8(mm) 10.15 x 6.06 x 1.17(inch)
Shipping Box: 320.0 x 240.0 x 87.0(mm) 12.59 x 9.44 x 3.42(inch)
Weight: 1.2kg / 2.65lbs
Basic Accessories:
- D-Tap Cable
- Camera Mount
Optional Accessories:
- DV Battery Bracket
- V-mount Bracket
- G-Mount Bracket
- Carrying Case
- Sun Hood
- DC Power Adapter
