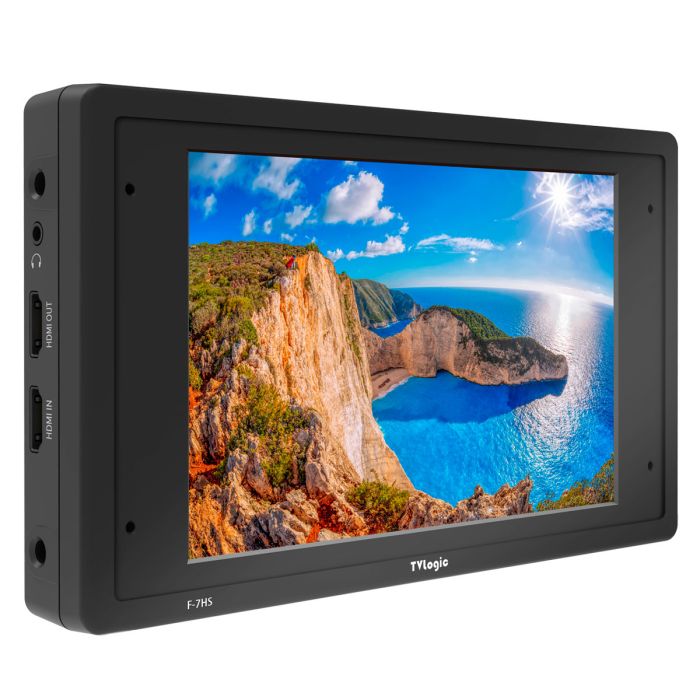

TV Logic F-7HS Field Monitor

• 7’’ Full HD Resolution (1920 x 1080)
• Luminance up to 1,500nits
• HDMI ↔ SDI Cross Conversion
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive Various Built-in Camera LUTs
• ARRI Metadata
• ExcellentSharpness
• PeakingBoost
• Waveform / Vectorscope
• H/V Flip
• Marker
• Split Zoom
• Focus Assist
• 16ch Audio Level Meter Anamorphic Desqueeze
• Timecode Display
• Luma(Y’) Zone Check
• Screen Tally

Main Body Dimensions

• Main Body: 211 x 125 x 28.3 (mm) / 8.3 x 4.92 x 1.11 (inch)
• Weight: 0.76KG / 1.67lbs

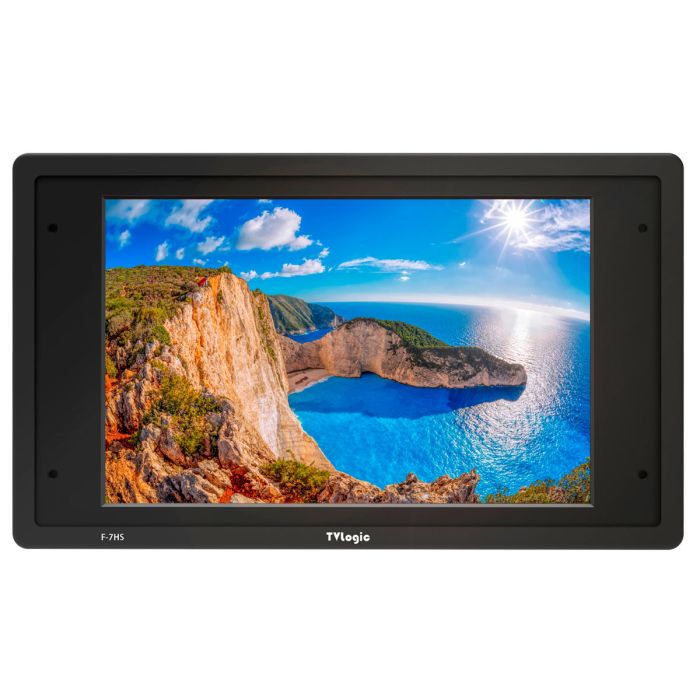

Display

• Size:7"
• Resolution: 1920 X 1200 (16:10)
• Pixel Pitch: 0.0787(H) X 0.0787(V)mm
• Color Depth: 1.073B Colors (10 bit)
• Viewing Angle: 160°(H) / 160°(V)
• Luminance of white: 1500nits
• Contrast Ratio: 1200 : 1
• Display Area: 151.2(H) × 94.5(V) mm

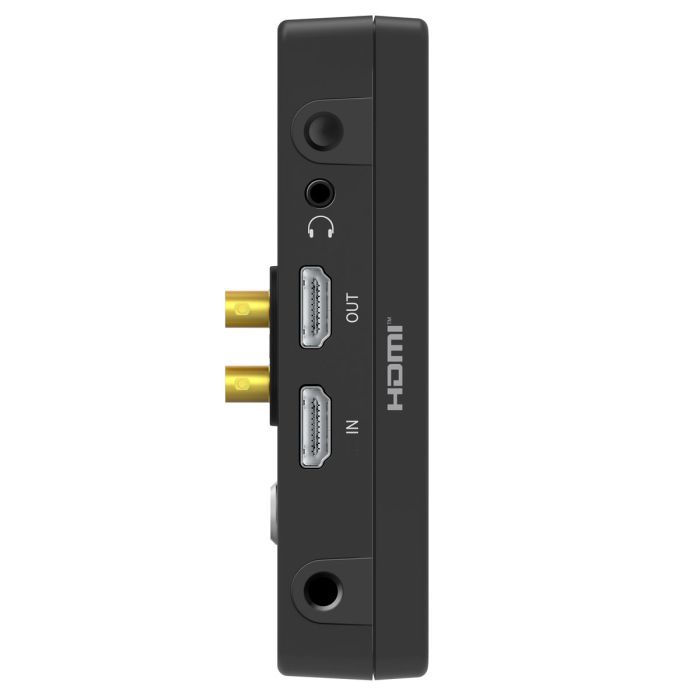

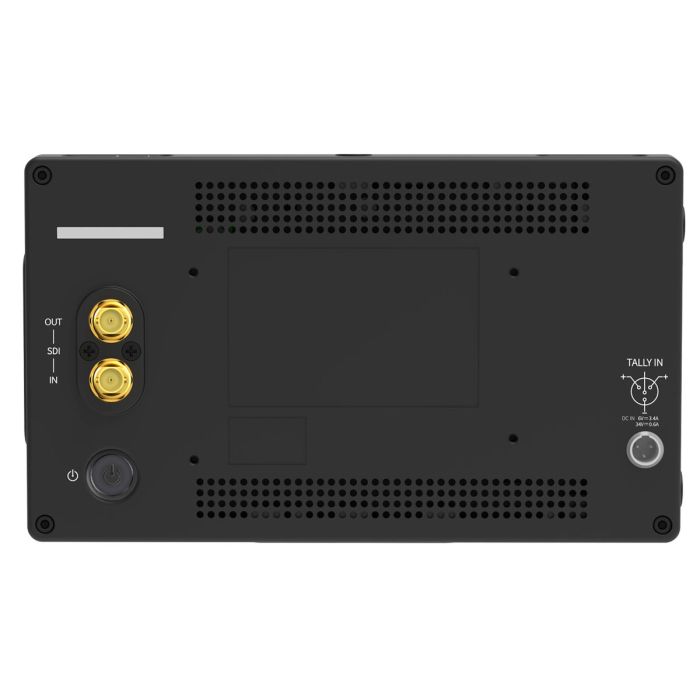

Input

• 1 X BNC: SDI Input
• 1 X HDMI: HDMI Input

Output

• 1 X BNC: SDI Output
• 1 X HDMI: HDMI Output

Input Signal

• 3G SDI: 2.970Gb/s
• HD SDI: 1.485Gbps
• SD SDI: 270Mbps
• HDMI: 1080p (60/59.94/50/30/25/24/.23.98)/1080i(60/59.94/50)/720p(60/50)

SDI Input Signal Formats

• SMPTE 425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
• SMPTE 296M: 720p (60/59.94/50)
• SMPTE 274M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
• SMPTE 125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

• Audio In: SDI Embedded Audio (Group, Ch Selectable)
• Audio Out: External Output Port (3.5mm Phone Jack)
• Power: DC 12V 1.8A
• Power Consumption (approx): TBD
• Weight: 0.8KG/1.76ilbs
• Included Accessories: D-Tap Cable, Camera Mount
