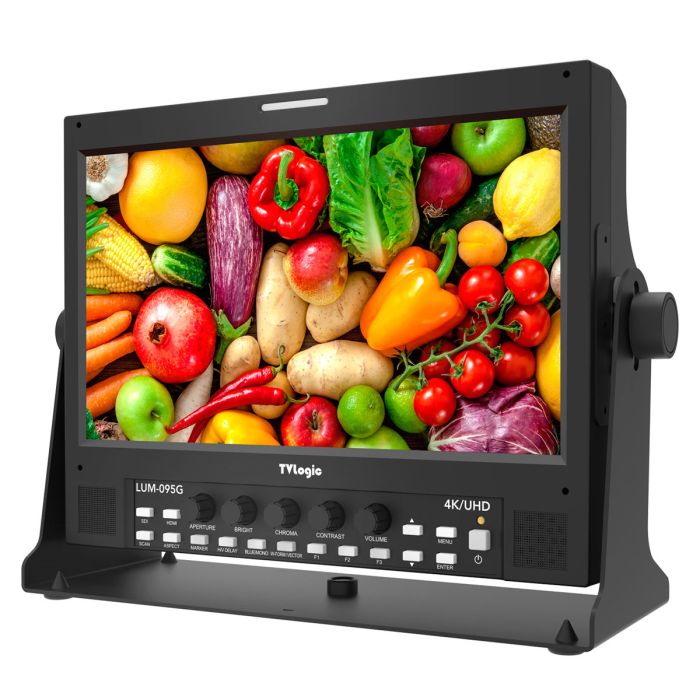

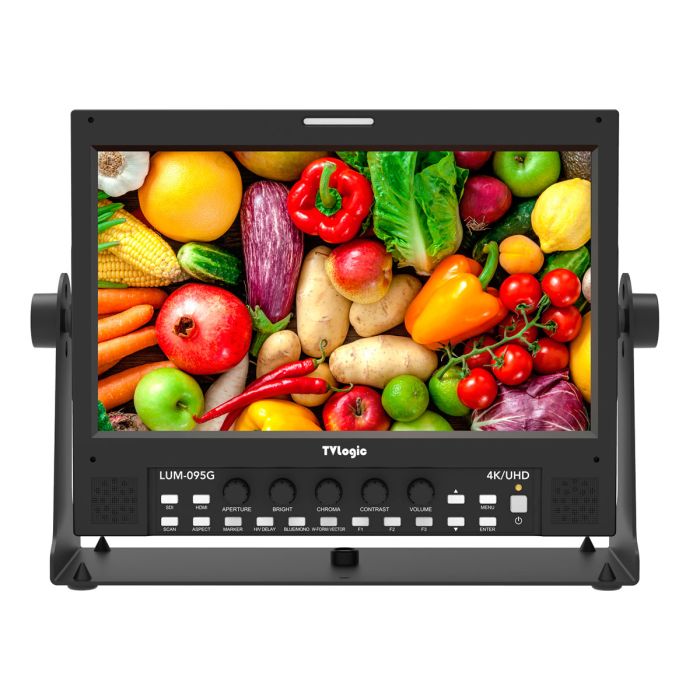

TV Logic LUM-095G Multi-Purpose Monitor

• 9" FHD Panel + 4K Interface
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• HDREmulation(PQ,HLG,S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform/Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• TimecodeDisplay
• Dynamic UMD
• Blue/MonoOnly
• VariousAspect
• Luma(Y’) Zone Check
• Closed Caption (CC-608, CC-708)
• H Flip & V Flip (Auto & Manual)

Size: 9"


Resolution: 1920 x 1080 (16:9)
Pixel Pitch: 0.1035 x 0.1035 mm
Colour Depth: 16.7M Colours (True 8 bit)
Viewing Angle: 178 ̊(H)/178 ̊( V )

Luminance of white: 400nits
Contrast Ratio: 750 : 1
Display Area: 198.72 x 111.78 mm

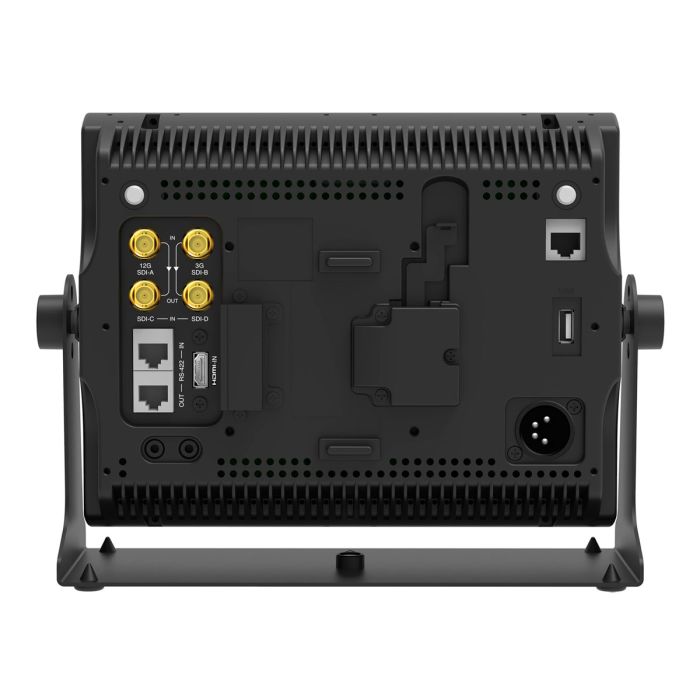

Input
SDI-A: 12G/6G/3G/HD-SDI Input
SDI-B: 3G/HD/SD-SDI Input
SDI-C: 3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 12G/6G/3G/HD/SDI Output (Passive Through Out)
SDI-D: 3G/HD-SDI Input (For Quad-Link 4K/UHD Input only) or 3G/HD/SD-SDI Output (Passive Through Out)
1xHDMI: HDMI(2.0) Input

Input Signal
12G-SDI: 12Gb/s
6G-SDI: 6Gb/s
3G-SD: 2.970Gb/s
HD-SDI: 1.485Gb/s
SD-SDI:270Mbps
HDMI: 2160p(60)/ 1080i(60)/720p(60)/480p(60)/576p(50)

SDI Input Signal Formats
SMPTE ST 2082: 2160p (60/59.94/50)
SMPTE ST 2081: 2160p (30/29.97/25/24/23.98)
SMPTE ST-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98 /30sF/29.97sF/25sF/24sF/23.98sF), 1080i (60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p(60/59.94/50)

SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

Audio In: Embedded Audio,
Analog Stereo(Phone Jack)
Audio Out: Internal Speaker(Stereo), Analog Stereo(Phone Jack)
Power: DC 12V / 24V
Power Consumption (Approx.): 30 Watts(DC)/Max 2.6A
Included Accessories: AC Power Cord, DC Power Adaptor,
Carry Handle, Table Stand, Camera mount

Main Body Dimensions
Main Body: 223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch)
With Stand: 260 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch)
Weight: 2.14Kg / 4.71lbs
