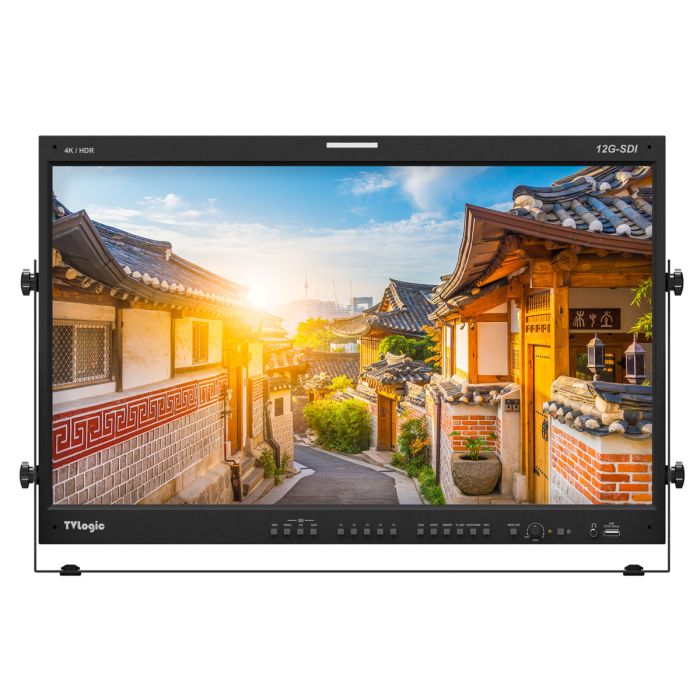

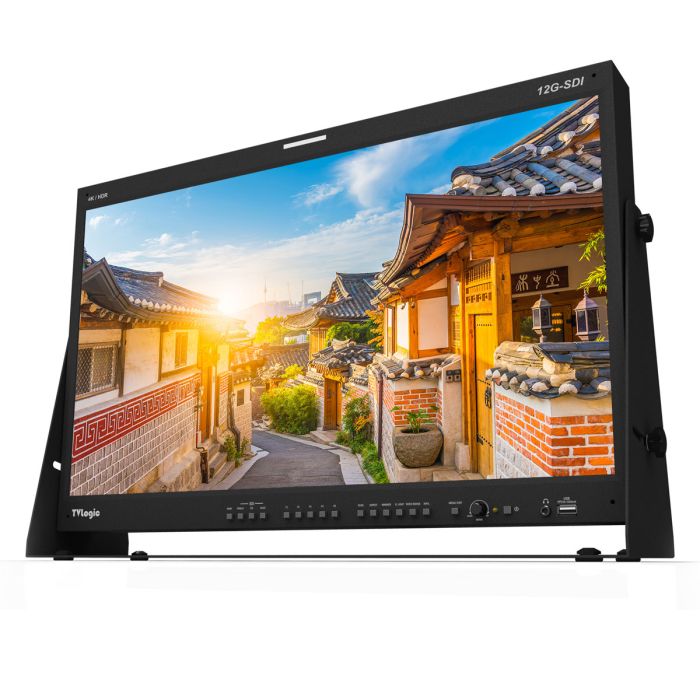

TV Logic LUM-242G 24" UHD/4K Monitor

• 24”, True UHD Resolution (3840x2160)
• Max Luminance 500cd/m2
• Color Gamut Covers up to DCI-P3 98%
• Improved Color Standard Switching Speed
• HDR Emulation (PQ, HLG, S-Log3)
• 1.07 Billion Colors (10bit)
• 4K/UHD Interface
  • 2x12G-SDI & 2x3G-SDI In
  • 3x3G-SDI In/Out (Active Through Out)
  • 1xHDMI In (HDMI 2.0)
• TV Logic Color Calibration Utility

Display

• Size: 24"
• Resolution: 3840 x 2160 (16:9)
• Pixel Pitch: 0.137mm
• Color Depth: 1.07B
• Viewing Angle: 178°(H) / 178°(V)
• Luminance: 500cd/m2
• Contrast Ratio: 1,200:1
• Display Area: 526(H) X 296(V) mm

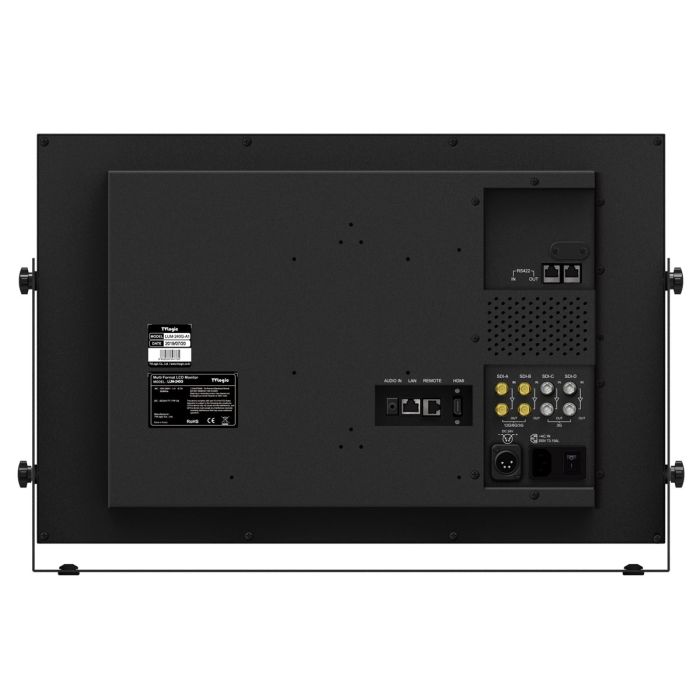

Input

• 4 X BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
• 1 X HDMI: HDMI Input

Output

• 4 X BNC: 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)

Input Signal

• 3G SDI: 2.970Gbps
• 12G SDI: 11.880Gbps
• HD SDI: 1.485Gbps
• SD SDI: 270Mb/s
• HDMI: 480i/480p/576i/576p/720p/1080i/1080p/2160p

SDI Input Signal Formats

• SMPTE 425M-A/B:   1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54)
• SMPTE 296: 720p (60/59.94/54)
• SMPTE 274: 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF)
• SMPTE 260: 47.95/48/50/59.94/60p)

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

• 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode
• Closed Caption: CC-608 ANC, CC-608 LINE 21, CC-708
• Calibration: TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

• REMOTE: GPI (RJ45)
• REMOTE: TVLogic’s specification
• USB: Firmware update by USB memory stick
• Ethernet: Ethernet Control support
• Options: Stand, Carrying Case, ND Acrylic Filter, Rack Mount Kit(Single), V-Mount
