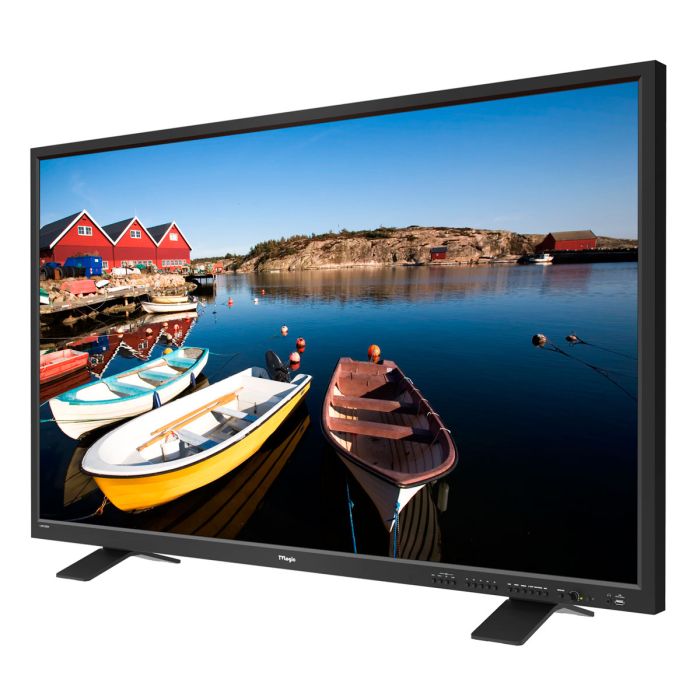

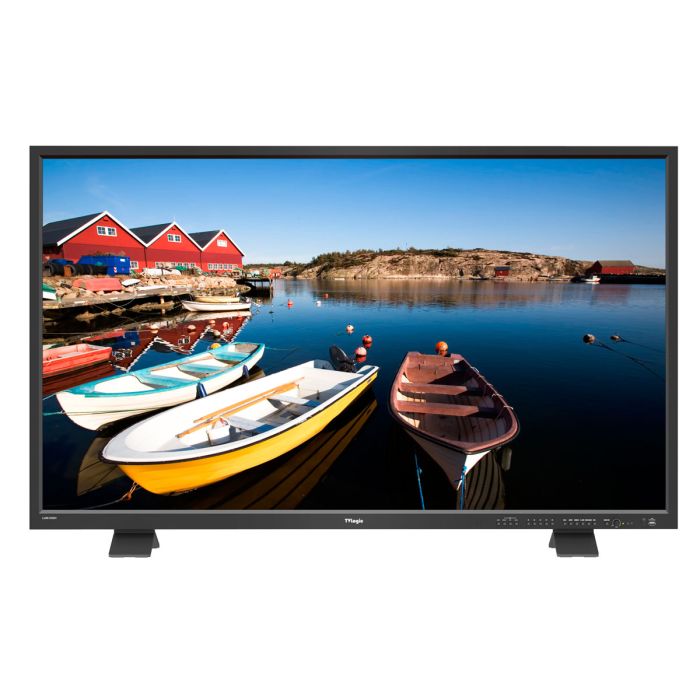

TV Logic LUM-550H 4K/UHD HDR LCD Monitor

• 55" True UHD Resolution 93840x2160)
• Peak Luminance 700nits
• HDR Emulation(PQ,HLG)
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Marker
• Timecode Display
• UMD Display
• Blue/Mono Only
• Various Aspect
• Range Error
• Closed Caption (CC-608, CC-708)
• Tally
• IR Remote Control & Ultra Slim Bezel

Size: 54.6"


Resolution: 3840×2160(16:9)
Pixel Pitch: 0.315(H) x 0.315(V) mm
Colour Depth: 1.07B Colours
Luminance of white: 700nits
Contrast Ratio: 1800 : 1100:1
Display Area: 1209.6(H) x 680.4(V) mm

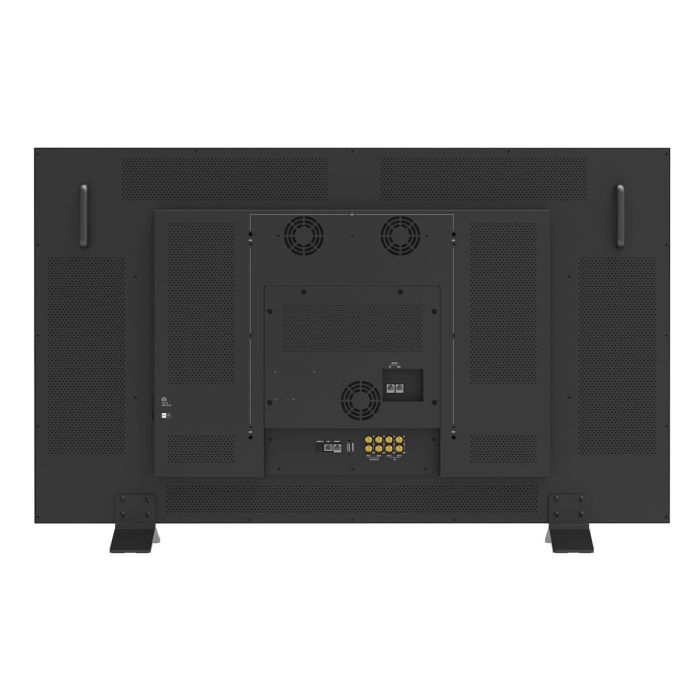

Input
4 x BNC: 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel Input
1 x HDMI: HDMI(2.0) Input

Output
4 x BNC: 12G/6G/3G/HD-SDI A/B, 3G/HD-SDI C/D Channel (Active Through Out)

Input Signal
12G-SDI: 12Gb/s
6G-SDI: 6Gb/s
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
SD-SDI: 270 Mb/s
HDMI: 2160p(60)/1080p(60)/1080i(60)/720p(60) /480p(60)/576p(50)

SDI Input Signal Formats
SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)
SMPTE ST 2081: 3840x2160 (30/25/24p)
SMPTE ST 2036-1: 2009:3840×2160(23.98/24/25/29.97/30/50/59.94/60p)
SMPTE-425M-A/B: 1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF), 1080i(60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p(60/59.94/50)

SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)
SMPTE ST 2048-2:2011: 2048x1080(23,98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)

Audio In: SDI Embedded Audio (Group, Channel Selectable)
Audio Out:Analog Stereo (3.5mm Phone Jack)
Power: AC100~240V(50~60Hz)
Power Consumption (Approx.): TBD
Included Accessories: AC Power Cable, IR Remote, Table Stand

Main Body Dimensions
Main Body: 1262 x 746 x 81.4(mm) / 49.68 x 29.37 x 3.2(inch)
With Stand: 1262 x 794.5 x 245(mm) / 49.68 x 31.27 x 9.64(inch)
Weight: 35.8kg / 78.92lbs
