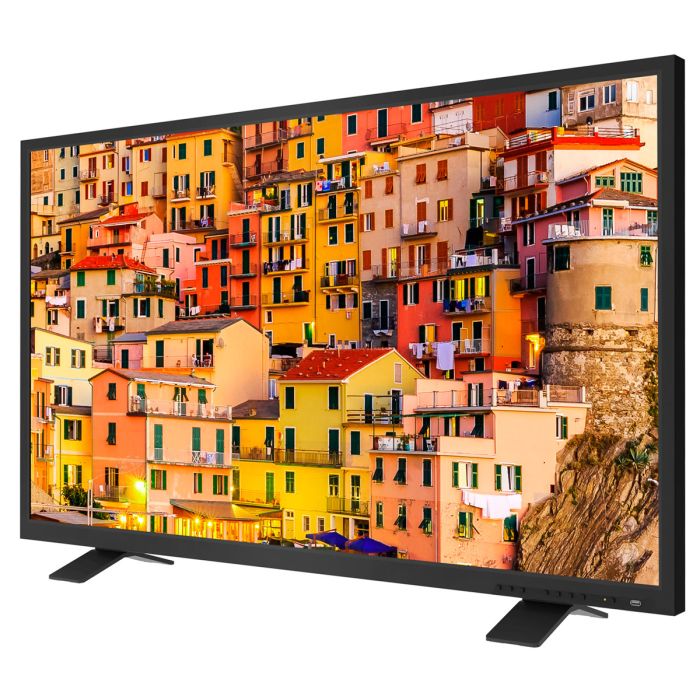

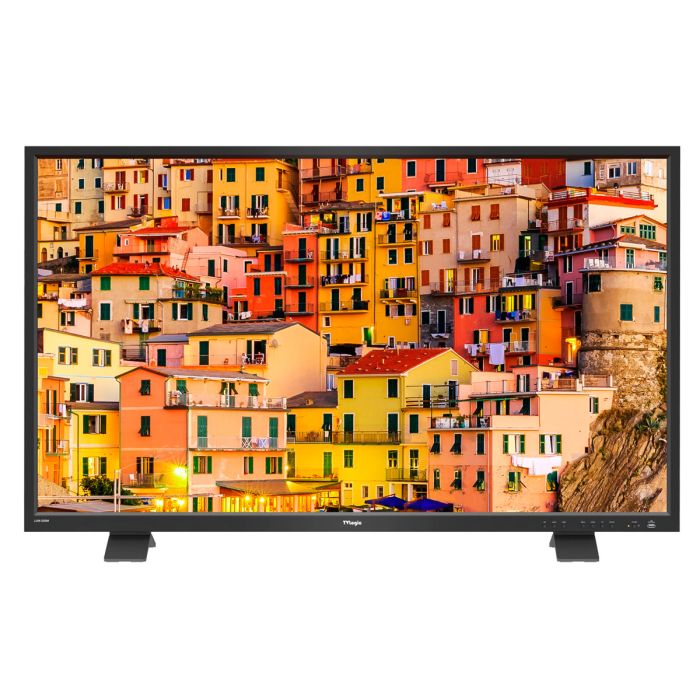

TV Logic LUM-550M3 LCD Monitor

• 54.6” True UHD Resolution (3840×2160)
• Max Luminance 700nits
• HDR Emulation (PQ, HLG, S-Log3)
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• Waveform / Vectorscope
• Audio Level Meter
• Marker
• Timecode Display
• Closed Caption (CC-608, CC-708)
• IR Remote Control
• Ultra Slim Bezel

Size: 54.6"


Resolution: 3840×2160(16:9)
Pixel Pitch: 0.315(H) x 0.315(V) mm
Colour Depth: 1.07B Colours
Luminance of white: 700nits
Contrast Ratio: 1800 : 1100:1
Display Area: 1209.6(H) x 680.4(V) mm

Input
4 x BNC: 12G/6G/3G/HD/SD-SDI Ch1/Ch2, 3G/HD /SD-SDI Ch3/Ch4
1 x HDMI: HDMI(2.0) Input

Output
4 x BNC: 12G/3G/HD/SD-SDI Output 1Ch
By Pass Mode : SDI A/B Channel (Active Through Out) 12G Mode : 3840x2160 60p/59.94p/50p

Input Signal
12G-SDI: 12Gb/s
6G-SDI: 6Gb/s
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
SD-SDI: 270 Mb/s
HDMI: 720p/1080p/2160p

SDI Input Signal Formats
SMPTE ST2048-1: 4096x2160 (50~60p)
SMPTE ST2082-10 Mode1: 3840x2160 60p/59.94p/50p (12G-SDI x 1Ch)
SMPTE ST2081-10 Mode1: 3840x2160 30p/29.97p/25p/24p*/23.98p* (6G-SDI x 1Ch)
SMPTE ST425-5: 3840x2160 60p/59.94p/50p (3G-SDI x 4Ch)
SMPTE ST274: 3840x2160 30p/29.97p/25p/24p*/23.98p* (HD-SDI x 4Ch)**
SMPTE ST425: 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A),
1920x1080 60i/59.94i/50i/30p/29.97p/25p /24p*/23.98p* (3G-SDI LEVEL B), 1280x720 60p/59.94p/50p (3G-SDI LEVEL B)
SMPTE 274M: 1920x1080 60i/59.94i/50i/30p/29.97p/25p /24p*/23.98p*
SMPTE-296M: 1280x720 60p/59.94p/50p
SMPTE-259M: 720x487 59.94i, 720x576 50i

HDMI Input Signal Formats
V2.0: 3840x2160 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)
V1.4: 3840x2160 30p/29.97p/25p/24p*/23.98p* (RGB/YCbCr 4:4:4 8bpp Mode)
V1.2: 1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p*/23.98p* (RGB/YCbCr 4:4:4 8bpp Mode) 60p/59.94p/50p, 1280x720 60p/59.94/50p (RGB/YCbCr 4:4:4 8bpp Mode)
Note * 24p/23.97p : 60p/59.94p Frame-rate Converted Display

Audio In: SDI Embedded Audio (Group, Channel Selectable)
Audio Out:Analog Stereo (3.5mm Phone Jack)
Power: AC100~240V(50~60Hz)
Power Consumption: 150 Watts (Max.)
Included Accessories: AC Power Cable, IR Remote, Table Stand

Main Body Dimensions
Main Body: 1262 x 746 x 81.4(mm) / 49.68 x 29.37 x 3.2(inch)
With Stand: 1262 x 794.5 x 245(mm) / 49.68 x 31.27 x 9.64(inch)
Weight: 35.8kg / 78.92lbs
