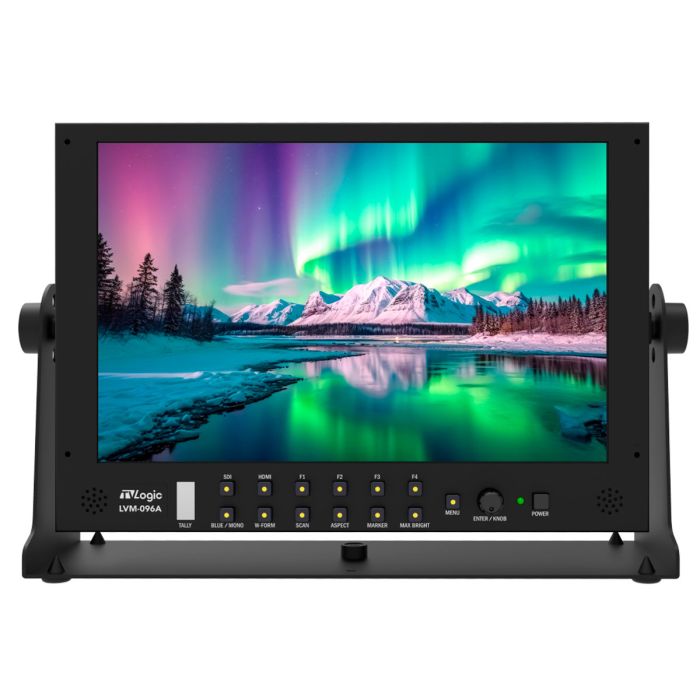

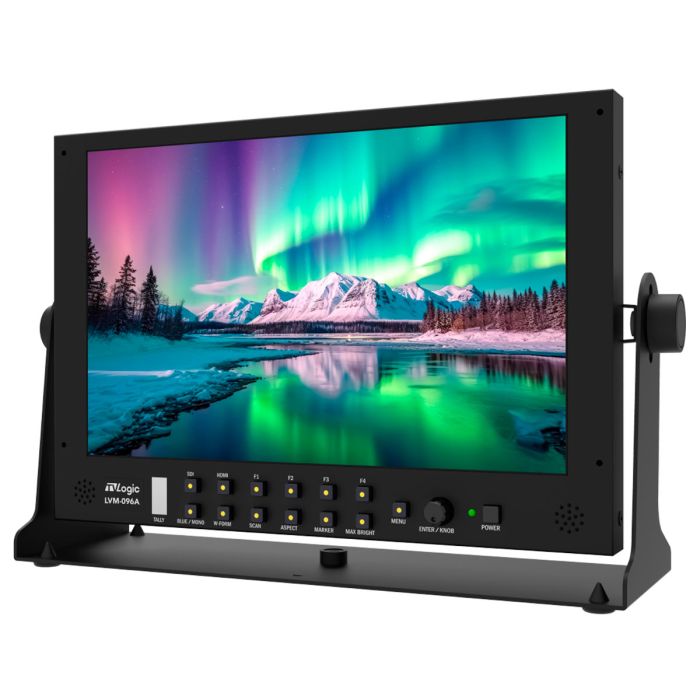

TV Logic LVM-096A : 10” FHD Multi-Purpose Monitor

1O" FHD Multi-Purpose Monitor, Full HD Resolution (1920x1200), Waveform / Vectorscope, 16ch Audio Level Meter, Focus Assist, Marker, Timecode display

SKU: TVL-LVM-096A

$2,308.33

The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI).

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 3-5 Days

The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI). For maximum efficiency and economic feasibility, LVM-096A is constructed from aluminum for an extra-light weight and a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability, LVM-096A gives clear picture with powerful features.

Waveform / Vectorscope
16ch Audio Level Meter
Focus Assist
Marker
Timecode Display
Dynamic UMD
Blue/Mono Only
H/V Delay
Luma(Y’) Zone Check
Range Error
SCAN / Pixel-to-Pixel
Zoom
User Aspect
Closed Caption (CC-608, CC-708)
Various Scan Modes
Tally
GPI Control

LCD

Size: 10.1"
Resolution: 1920x 1200 (16:10)
Pixel Pitch: 0.1122(H) x0.1128(V)mm
Color Depth: 16.7M Colors
Viewing Angle: 170°(H) / 170°V)
Luminance of white: 1000 cd/m?
Contrast Ratio: 1000:1
Display Area: 216.58(H) x 135.36(V) mm

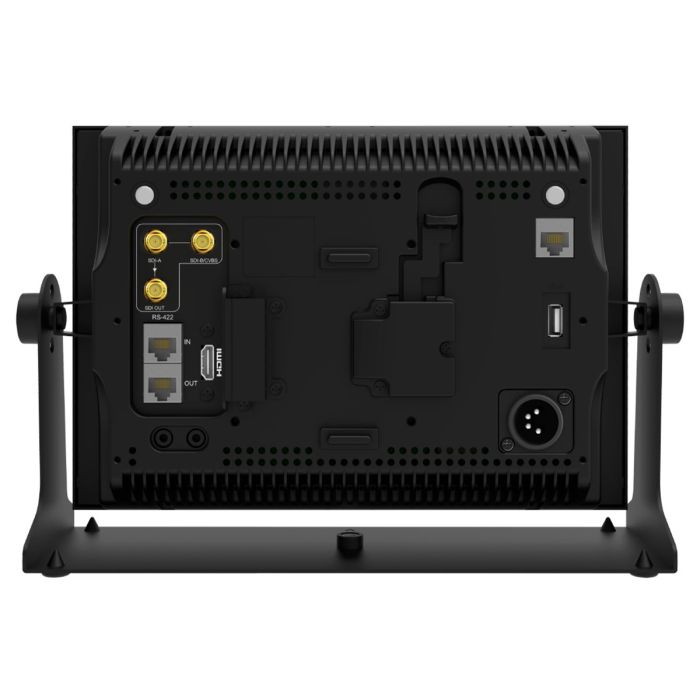

Input Connector

1 X HDMI: HDMI Input
1 X BNC: SDI A Channel Input
1 X BNC: SDI B Channel Input, CVBS Channel Input (shared)

Output

1 x BNC: SDI Channel Output (Active Loop Through)

Input Signal

3G-SDI: 2.970Gbps
HD-SDI: 1.485Gbps
SD-SDI: 270Mbps
HDMI: 1080p (60)/1080i(60)/720p (60)/480i(60)/480p (60)/576i(50)/576p(50)
640x480/720x400/800x600/1024x768/1280x768x1280x1024/1366x768
Analog: CVBS (SDI B Channel)

Analog Input Spec

CVBS: 1.0Vpp (with Sync)

SDI Input Signal Formats

SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24SF/23.985F) 1080i (60/59.94/50)
SMPTE-274M: 1080p (30/29.97/25/24/24SF/23.98/23.98sF/ 50/59.94/60) 1080i (60/59.94/50)
SMPTE-296M: 720p (60/59.94/50)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048x 1080p (24/24sF/23.98/23.985F)

Audio In: Embedded Audio / Analog Stereo (Phone Jack)
Audio Out: Analog Stereo (Phone Jack), Internal speaker (Mixed Mono)
Power: DC 12/24V (XLR-4pin (male) connector)
Power Consumption (Approx.): 30 Watts(DC)/Max 2A
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Main Body Dimensions: 254.0 X 175.0 X 60.0 (mm) / 10.00 X 6.89 X 2.36(inch)
Main Body Dimensions with stand: 295.2 X 194.2 X90.0 (mm) / 11.62 X7.65 X3.54(inch)
Shipping Box Dimensions: 330.0 X 180.0 X 250.0(mm) / 12.99 X 7.09 X 9.84(inch)
Weight: 2.40kg / 5.29 Ibs
Basic Accessories: AC Power Cord, DC Power adaptor, Stand, Tap Bolt
Optional Accessories: Acrylic Protector, Sun Hood
