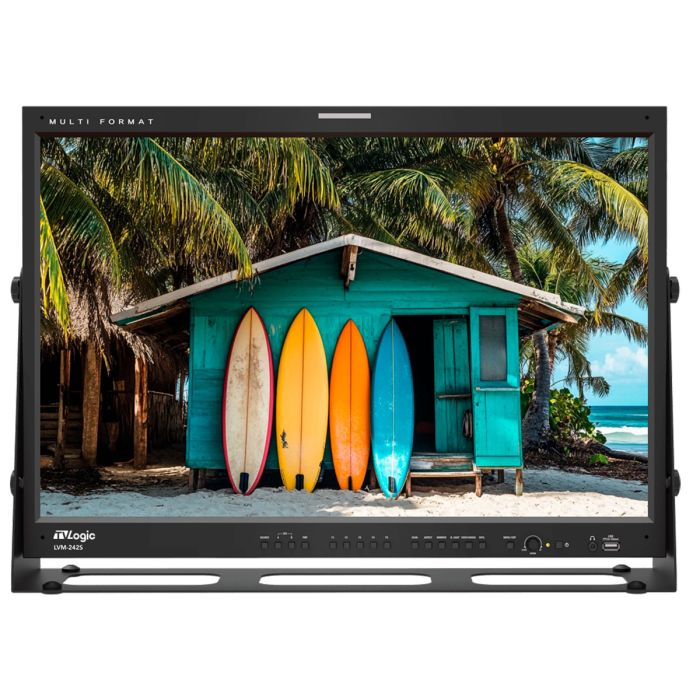

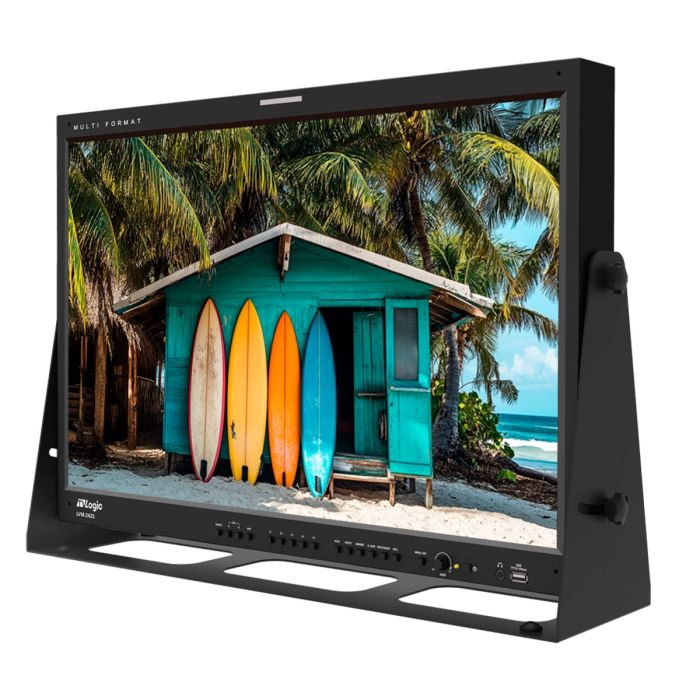

TV Logic LVM-242S FHD MDR Monitor

• 24” Full HD Resolution (1920 x 1200)
• 1.07B Colours (10 bit)
• 98% Coverage of DCI-P3 Colour Gamut
• HDR Emulation (PQ, HLG, SLOG3)
• PBP (Picture by Picture)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Ember + Protocol support
• Fast Mode
• Waveform / Vectorscope (Advanced)
• 16ch Audio Level Meter
• Timecode Display
• Dual Markers (Main & Sub)
• Dynamic UMD
• User Aspect
• Various Scan Modes
• Closed Caption (CC-608/708, CC-KOR, OP47)
• Focus Assist

Size: 24"


Resolution: 1920 x 1200 (16:10)
Pixel Pitch: 0.27(H) x 0.27(V) mm

Colour Depth: 1.07B Colours
Luminance of white: 400nits
Contrast Ratio: 1800 : 1
Display Area: 518.4(H) x 324.0(V) mm

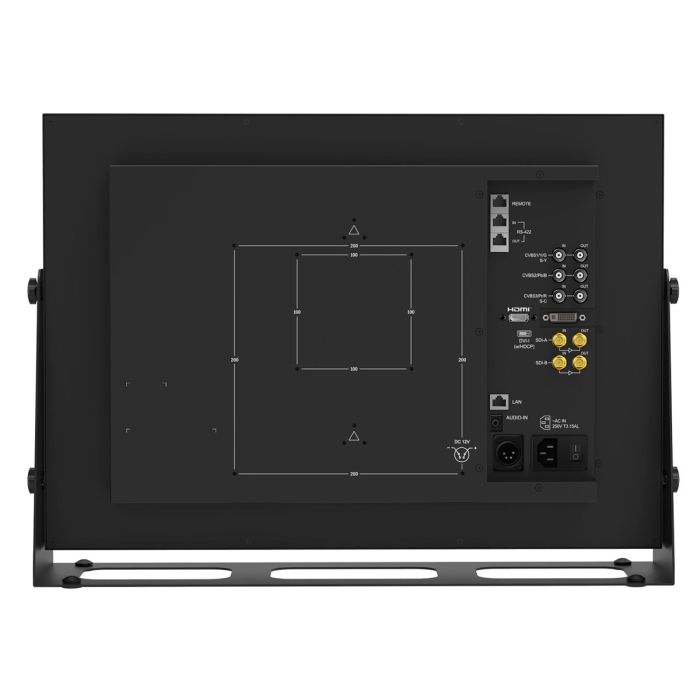

Input
2 x BNC: SDI A/B Channel Input
1 x HDMI: HDMI Input
3 x BNC: Analog Input
1 x DVI-I: DVI-I(RGB) IN

Output
2 x BNC: SDI A/B Channel (Loop Through Out)
3 x BNC: Analog Output

Input Signal
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
SD-SDI: 270 Mb/s
Analogue: CVBS / Component / RGB
DVI-D (PC mode): 640x480/800x600/1024x768/1366x768
DVI-D (HDMI mode): 1080i(60) / 720i(60) / 480i(60) / 480p(50)
HDMI: 480i(60) / 480p(60) / 576i(50) / 576p(50) / 720p(60) / 1080i(60) / 1080p(60)

Analog Input Spec
CVBS: 1.0Vpp (with Sync)
Component: 1.0Vpp (Y with Sync), 0.7Vpp (Pb,Pr)
RGB: 1.0Vpp (G With Sync), 0.7Vpp (B,R)

SDI Input Signal Formats
SMPTE-425M-A/B: 1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF), 1080i(60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p(60/59.94/50)

SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080(23.98p/psf, 24p/psf)

Audio In: Embedded Audio,
Analog Stereo(Phone Jack)
Audio Out: Internal Speaker(Stereo), Analog Stereo(Phone Jack)
Power: DC 12V / 24V / AC 100~240V(50~60Hz)
Power Consumption (Approx.): TBD
Included Accessories: AC Power Cord, Table Stand

Main Body Dimensions
Main Body: 552.5 x 389 x 95.9 (mm) / 21.75 x 15.31 x 3.77 (inch)
With Stand: 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight: 10.68kg / 23.54lbs
