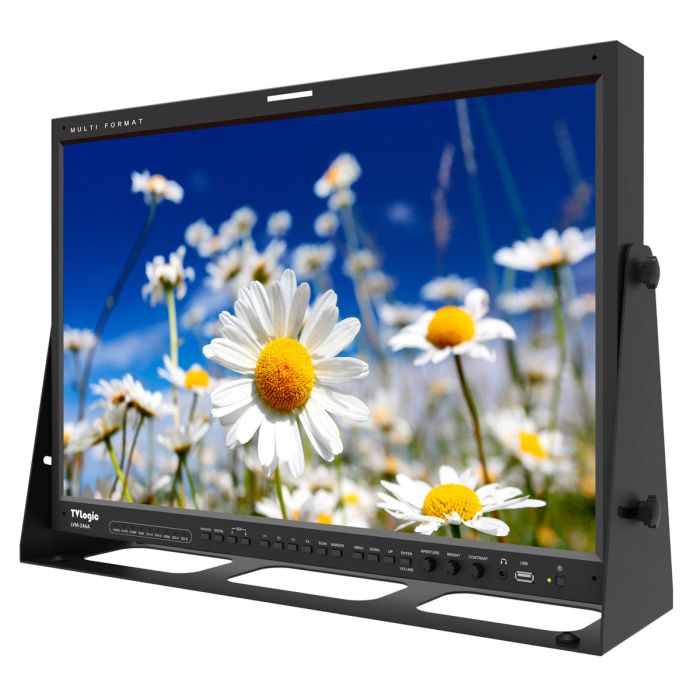

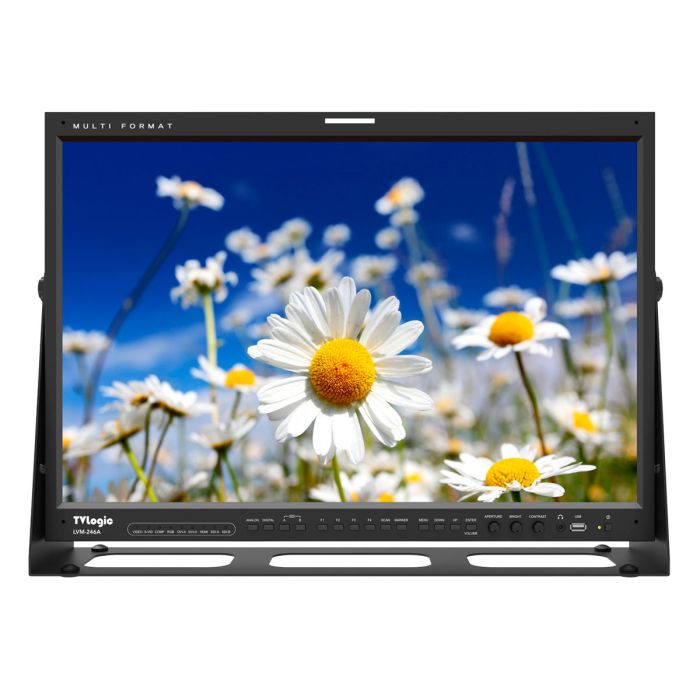

TV Logic LVM-246A LCD Monitor

• 24” Full HD Resolution (1920 x 1200)
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• H/VDelay
• Luma(Y’) Zone Check
• Range Error
• User Aspect
• Various Scan Modes
• Closed Caption (CC-608, CC-708)
• Tally

Size: 24"


Resolution: 1920 x 1200 (16:10)
Pixel Pitch: 0.27(H) x 0.27(V) mm

Colour Depth: 16.7M Colours (True 8 bit)
Viewing Angle: 178 ̊(H)/178 ̊( V )

Luminance of white: 600nits
Contrast Ratio: 1000 : 1
Display Area: 518.4(H) x 324.0(V) mm

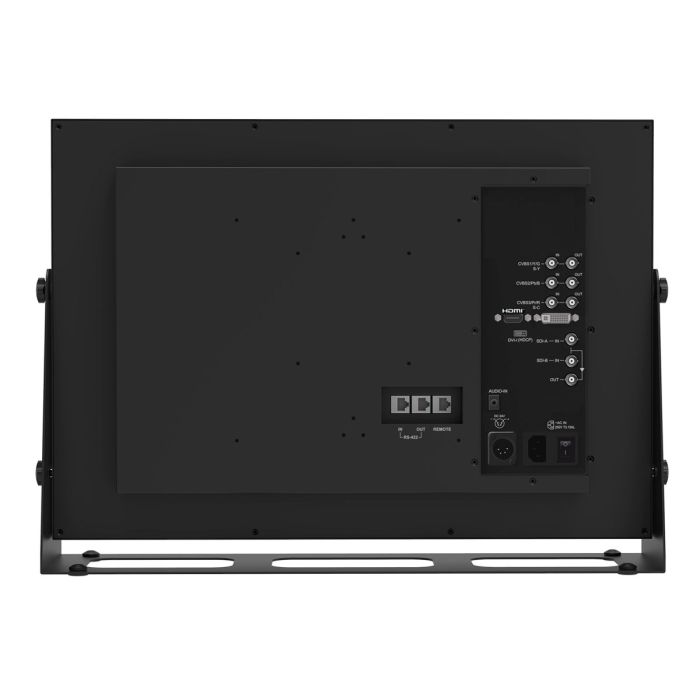

Input
2 x BNC: SDI A/B Channel Input
1 x HDMI: HDMI Input
3 x BNC: Analog Video Input
1 x DVI-I: DVI-IN

Output
1 x BNC: SDI Channel (Active Through Out)
3 x BNC: Analog Video Output

Input Signal
3G-SDI: 2.970Gb/s
HD-SDI: 1.485Gb/s
SD-SDI: 270 Mb/s
HDMI: 1080p(60)/1080i(60)/720p(60)/480p(60)/576p(50)
Analogue: Composite
DVI: VESA/IBM Modes

SDI Input Signal Formats
SMPTE-425M-A/B: 1080p(60/59.94/50/30/29.97/25/24/23.98/ 30sF/29.97sF/25sF/24sF/23.98sF), 1080i(60/59.94/50)
SMPTE-274M: 1080i (60/59.94/50), 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720p(60/59.94/50)

SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

Audio In: Embedded Audio,
Analog Stereo(Phone Jack)
Audio Out: Internal Speaker(Stereo), Analog Stereo(Phone Jack)
Power: DC 12V / 24V / AC 100~240V(50~60Hz)
Power Consumption (Approx.): 115W
Included Accessories: AC Power Cord, Table Stand

Main Body Dimensions
Main Body: 552.5 x 389 x 95.9 (mm) / 21.75 x 15.31 x 3.77 (inch)
With Stand: 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight: 10.8kg / 23.8lbs
