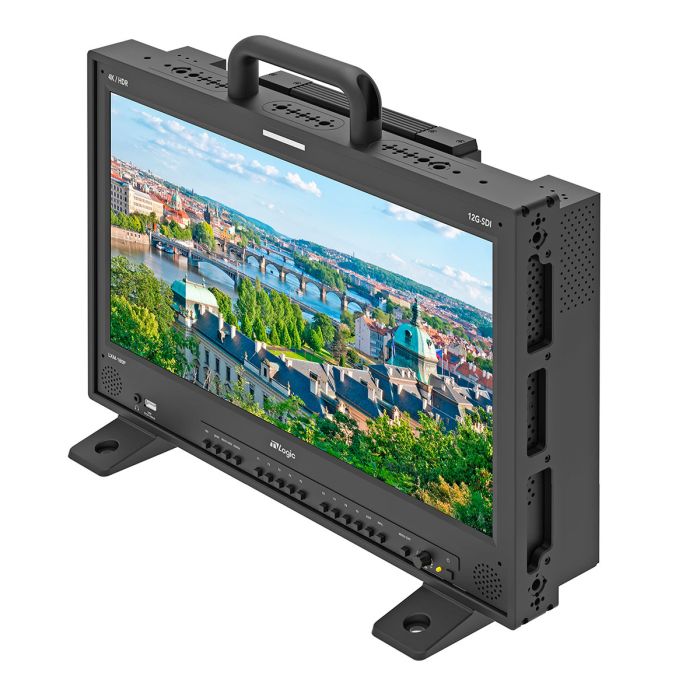

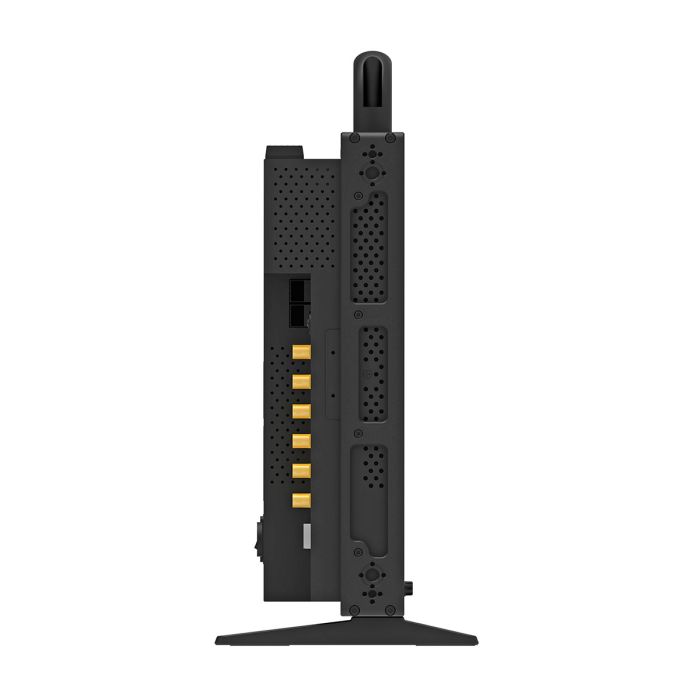

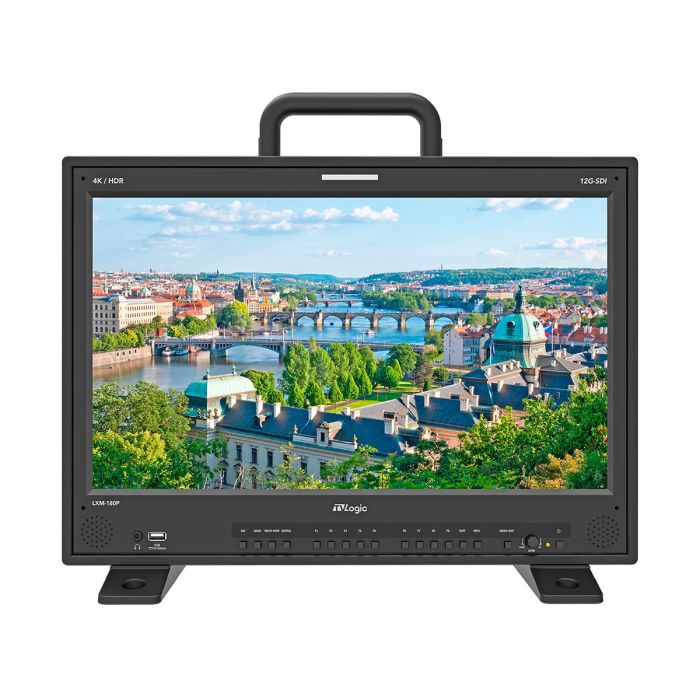

TV Logic LXM-180P-FM 18" 4K/UHD 12G Quad Field Monitor
18.4" 4K/UHD 12G Quad Field Monitor with Multi-Mounting
SKU: TVL-LXM-180P-FM
Incorporates 12G-SDI Input (x4), 12G-SDI Output (x4), Reference (External Sync) input, HDMI 2.0 Input, SFP Input (x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Colour Depth 1.07B Colors.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days
Incorporates 12G-SDI Input (x4), 12G-SDI Output (x4), Reference (External Sync) input, HDMI 2.0 Input, SFP Input (x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Colour Depth 1.07B Colors.
- HDREOTF(PQ,HLG)
- Custom3DLUTImportbyUSBFlashDrive
- Quad-View, Picture-by-Picture Display
- VariousConversionOutput
- QuadLink12GInputtoSingleLink12GOutput
- AutoDetectionofSDIPayloadID
- Waveform(YCbCr,RGB)/VectorScope/Histogram • AudioLevelMeter/PhaseMeter
- ImageCapture&Overlay
- ClosedCaption(CC-608,CC-708,OP47)
- TimecodeDisplay
- Marker
- FocusAssist
- Blue/MonoOnly
- H Flip, V Flip
- Scan/UserAspect
- DynamicUMD
- Tally
- Size: 18.4"
- Resolution: 3840 x 2160 (16:9)
- Colour Depth: 1.07B Colors (10bit):
- Luminance: 1000nits
- Contrast Ratio: 1000:1

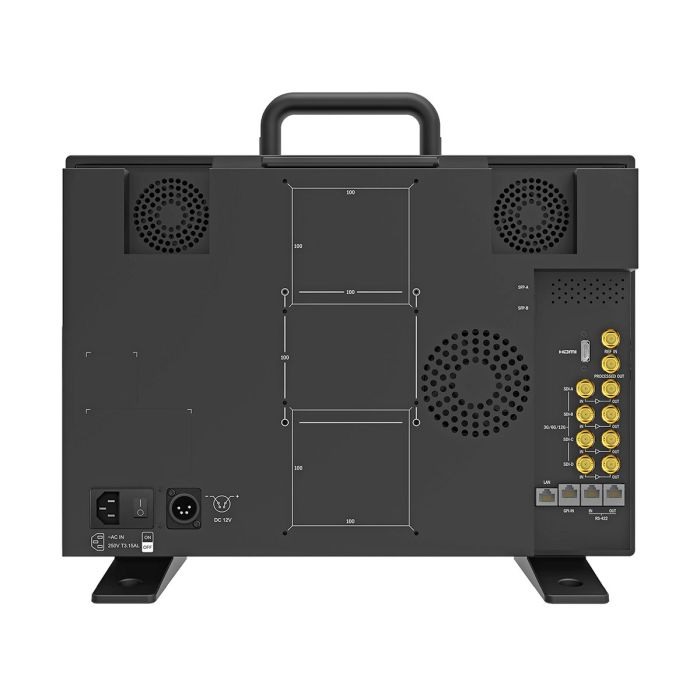

Input:
- 4x BNC: 12G-SDI A/B/C/D Channel Input
- 1x HDMI: HDMI 2.0 Input
- 2x SFP: SFP A/B Channel Input
- 1x BNC: Reference Input
Output:
- 4x BNC: 12G-SDI A/B/C/D Channel Output
- 1x BNC: Processed Output
Main Body Dimensions:
- Main Body: 459.5 x 326 x 43 (mm) / 18.09 x 12.83 x 1.69 (inch)
- With Stand: 459.5 x 400.6 x 178.02 (mm) / 18.09 x 15.77 x 7.0 (inch)
- Weight: 8.6kg / 18.95lbs
