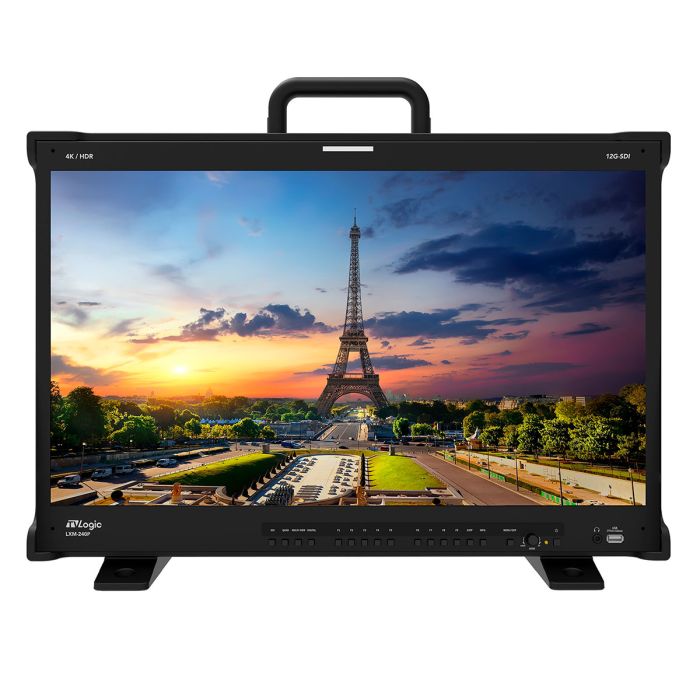

TV Logic LXM-240P-FM 24" 4K/UHD 12G Quad Field Monitor

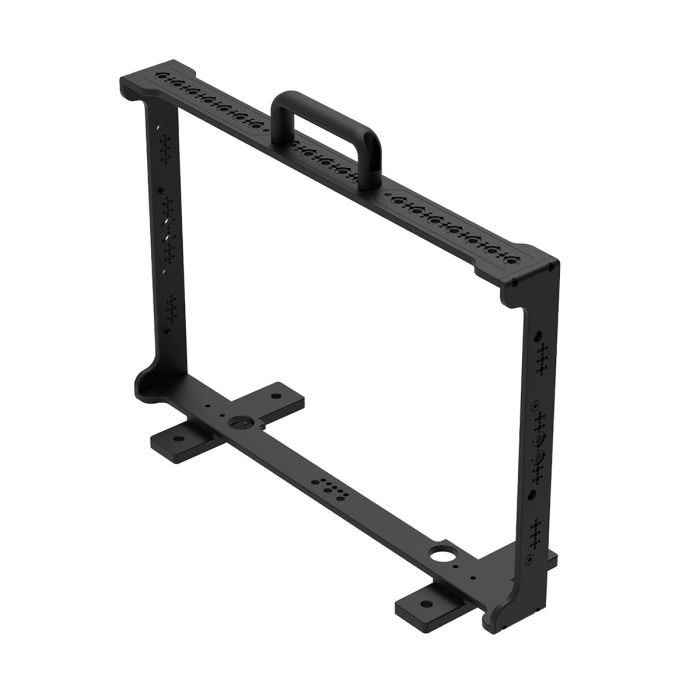

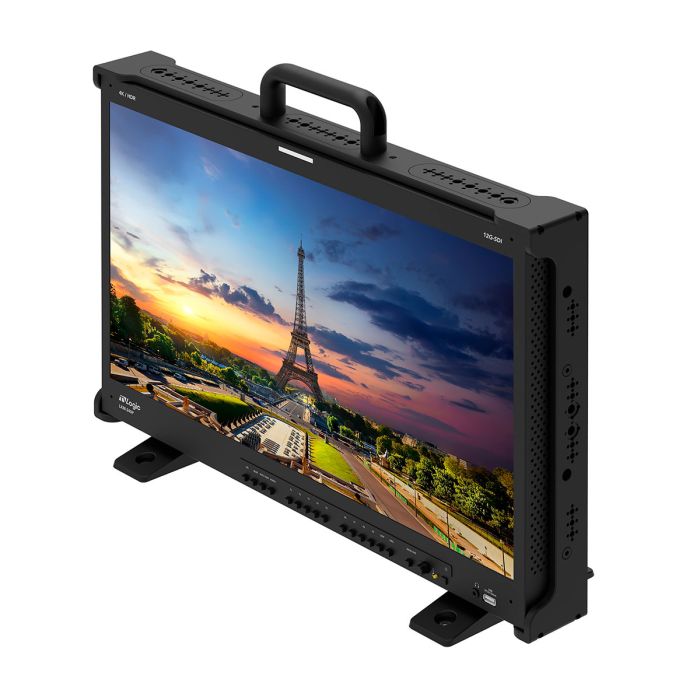

24" 4K/UHD 12G Quad Field Monitor with Multi-Mounting Cage
MPN: TVL-LXM-240P-FM SKU: TVL-LXM-240P-FM
Incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Color Depth 1.07B Colours
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days
Incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. Size 18.4”, Resolution 3840 x 2160 (16:9), Pixel Pitch 0.035(H) x 0.1065(V) mm, Color Depth 1.07B Colours
- HDREOTF(PQ,HLG)
- Custom3DLUTImportbyUSBFlashDrive
- Quad-View, Picture-by-Picture Display
- VariousConversionOutput
- QuadLink12GInputtoSingleLink12GOutput
- AutoDetectionofSDIPayloadID
- Waveform(YCbCr,RGB)/VectorScope/Histogram • AudioLevelMeter/PhaseMeter
- ImageCapture&Overlay
- ClosedCaption(CC-608,CC-708,OP47)
- TimecodeDisplay
- Marker
- Focus Assist
- Blue/Mono Only
- HFlip,VFlip
- Scan/UserAspect
- DynamicUMD
- Tally
- Size: 23.8"
- Resolution: 3840 x 2160 (16:9)
- Colour Depth: 1.07B Colors (10bit):
- Luminance: 1800nits
- Contrast Ratio: 1000:1

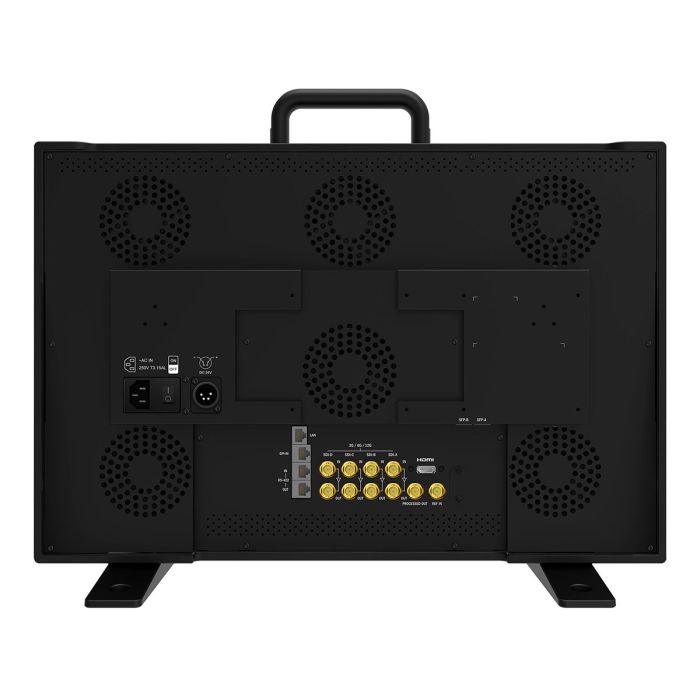

Input:
- 4x BNC: 12G-SDI A/B/C/D Channel Input
- 1x HDMI: HDMI 2.0 Input
- 2x SFP: SFP A/B Channel Input
- 1x BNC: Reference Input
Output:
- 4x BNC: 12G-SDI A/B/C/D Channel Output
- 1x BNC: Processed Output
Main Body Dimensions:
- Main Body: 572.4 x 382 x 68 (mm) / 22.53 x 15.03 x 2.67 (inch)
- With Stand: 572.4 x 456.6 x 178.02 (mm) / 22.53 x 17.97 x 7.0 (inch)
- Weight: 14kg / 30.86lbs
