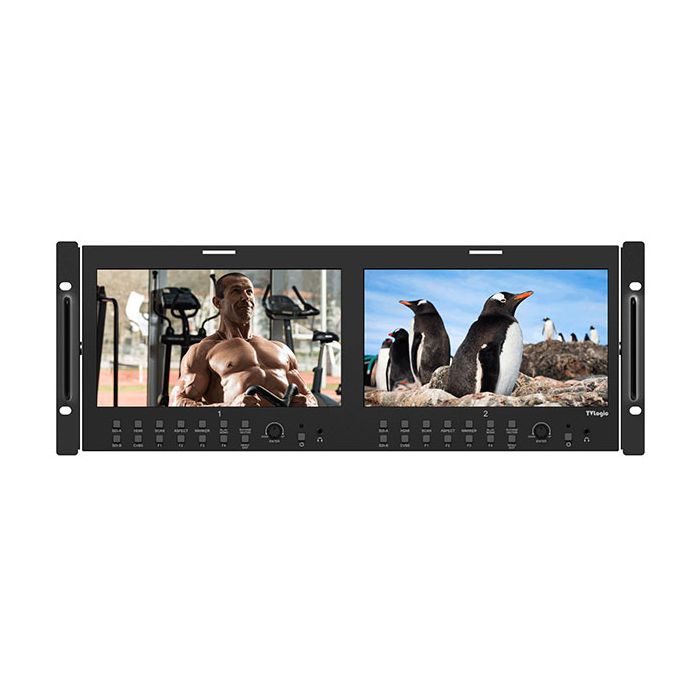

TV Logic RKM-290A 2 x 9" Full HD Multi-Channel LCD Rack Monitor

• 9” 1920 x 1080 (16:9) Resolution

• 1:1 Pixel Mapping Modes for SD/HD

• 3G-SDI Level A/B

• Audio Level Meter Display

• Blue Only

• Focus Assist

• H/V Delay

• Key lock

• Luma(Y') Zone Check

• Marker

• Mono

• Range Error

• Zoom

• Time Code Display

• User Aspect

• UMD

• CC-608 LINE 21

• CC-608 ANC

• CC-708

• Various Scan modes

• Waveform/Vectorscope

• Size: 9"

• Resolution: 1920 x 1080 (16 : 9)

• Pixel Pitch: 0.103mm

• Color Depth: 16.7M

• Viewing Angle (Typ.): 176°(H) / 176°(V)

• Luminance (Max.): 400cd/m2 (center)

• Contrast Ratio: 750:1

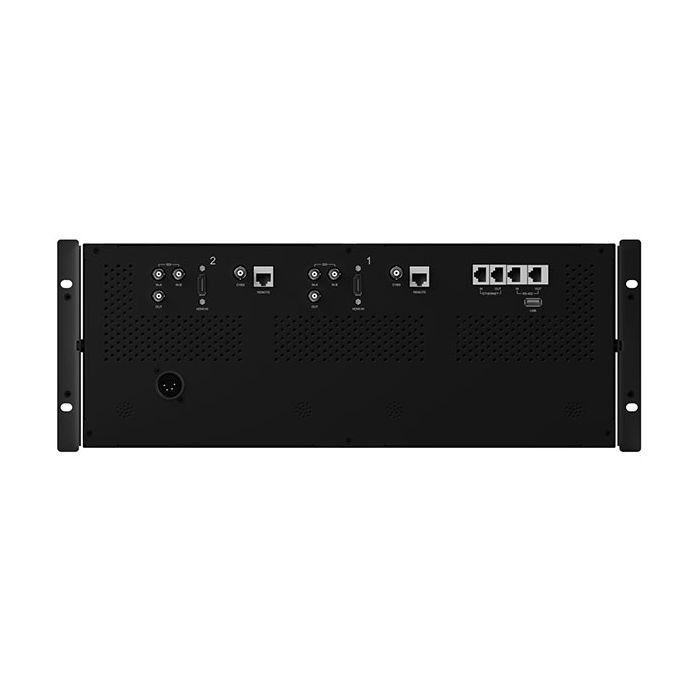

Input (1 Screen)

• 1 x HDMI HDMI Input

• 2 x BNC SDI A/B Channel Input

• 1 x BNC CVBS

Output (1 Screen)

• 1 x BNC SDI Selected Channel Output

Input Signal

• Analog: CVBS

• 3G-SDI: 2.970Gbps

• HD-SDI: 1.485Gbps

• SD-SDI: 270Mbps

• HDMI: 1080P(24/25/30/50/60) /1080i(50/60) / 720p(50/60) /480i(60) / 480p(60) / 576i(50) /576p(50) 640×480 / 720×400 / 800×600 / 1024×768 /1280×1024 / 1366×768

SDI Input Signal Formats

• SMPTE-425M-A/B: 1080i(60/59.94/50)  1080P(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

• SMPTE-274M: 1080i (60 / 59.94 / 50)  1080p(30/29.97/25/24/24sF/23.98/23.98sF)

• SMPTE-296M: 720p(60/59.94/50) 720p(60/59.94/50)

• SMPTE-260M: 1035i(60/59.94) 1035i(60/59.94)

• SMPTE-125M: 480i(59.94) 480i(59.94)

• ITU-R BT.656: 576i(50) 576i(50)

• 2K Format: 2048×1080p(24/24sF/23.98/23.98sF)

• Audio IN: Embedded Audio / Analog stereo (Phone Jack)

• Audio OUT: Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono)

• Power: DC 12/24V

• Power Consumption (Approx.): TBD

• Operating Temperature: 0°C to 45°C (32°F to 113°F )

• Storage Temperature: -20°C to 60°C (-4°F to 140°F )

• Accessory TBD

• Optional Accessories TBD
