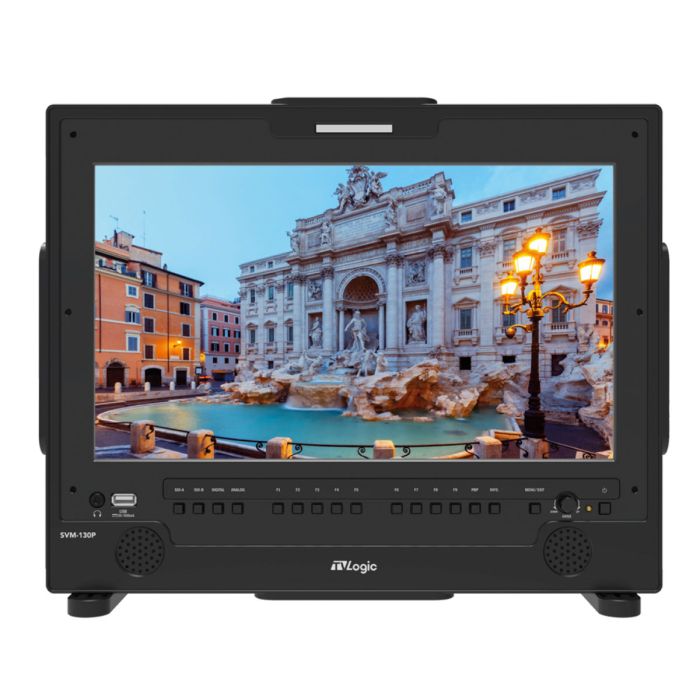

TV Logic SVM-130P : 13.9" 12G-SDI High Brightness Field Monitor
13.9" 12G-SDI High Brightness Field Monitor
SKU: TVL-SVM-130P
The SVM-130P delivers outstanding visibility in any environment with 1500nits high brightness, slim & rugged build, and broadcast-level monitoring features including 12G-SDI in/out, waveform & vectorscope, picture-by-picture, and custom 3D LUTs.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days
Powerful, Versatile, Field-Ready
Experience brilliant 1500nits high brightness, rugged yet lightweight design, and a complete toolset for professional monitoring.
The new SVM-130P delivers outstanding visibility in any environment with 1500nits high brightness, slim & rugged build, and broadcast-level monitoring features including 12G-SDI in/out, waveform & vectorscope, picture-by-picture, and custom 3D LUTs.
- 1500nits High Brightness Display
- 2 x 12G-SDI Input and Loopout
- 12G-SDI Input to 3G-SDI Downscale Output
- Processed Monitor Output

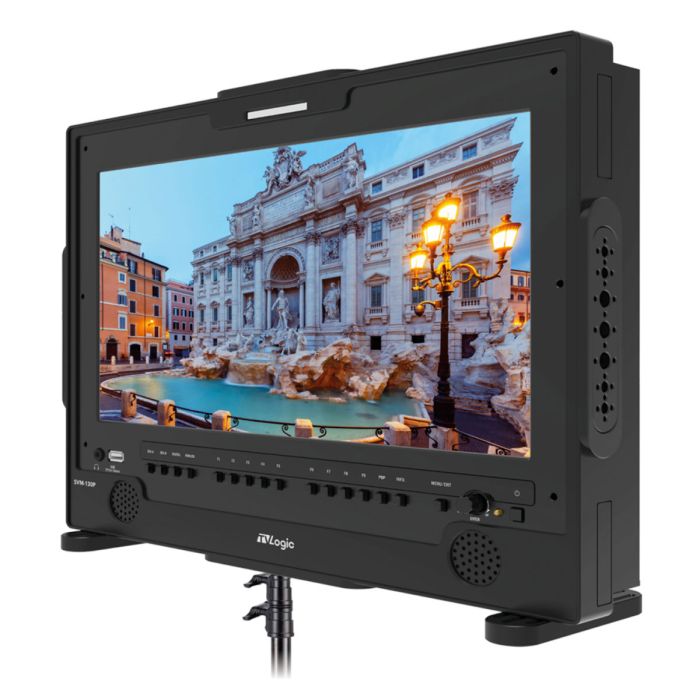

- Cheese Plates, C-stand Mountable
- Dual Battery Brackets (V-Mount, G-Mount)
- Picture-by-Picture Display
- HDR (PQ, HLG, S-LOG3)
- Custom 3D LUT Import by USB Flash Drive
- Auto Detection of SDI Payload ID
- Image Capture & Overlay
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Audio Phase Meter
- Fast Mode
- Focus Assist / Marker
- Blue/Mono Only / Timecode Display
- Remote Control & FW Update via Ethernet
- H Flip, V Flip
LCD Panel
- Size: 13.9”
- Resolution: 1920 x 1080 (16:9)
- Pixel Pitch: 0.1605(H) x 0.1605(V) mm
- Color Depth: 16.7M Colors
- Viewing Angle: 178°(H) / 178°(V)
- Luminance of white: 1500nits
- Contrast Ratio: 1200 : 1
- Display Area: 308.16(H) x 173.34(V) mm

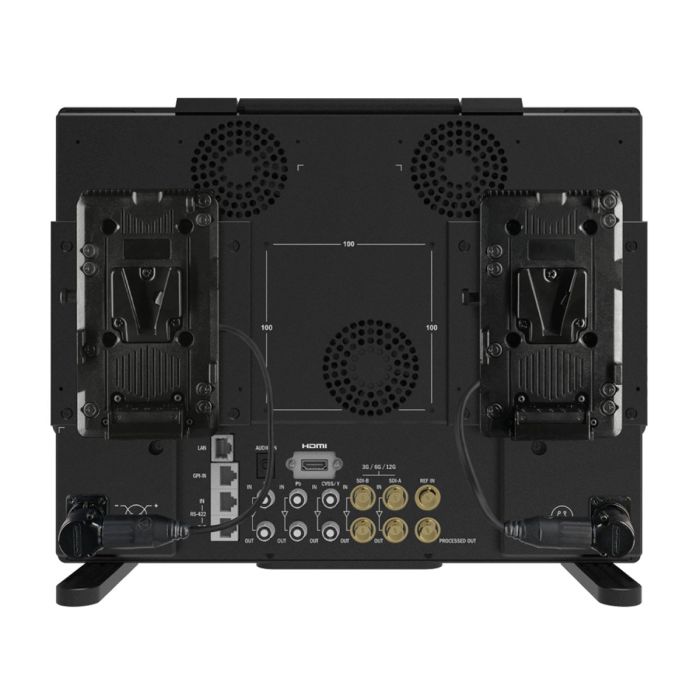

Input
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
- 3 x BNC: YPbPr, CVBS Input
- 1 x HDMI: HDMI 1.4 Input
- 2 x SFP: SFP A/B Channel Input
- 1 x BNC: Reference Input
Output
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
- 3 x BNC: YPbPr, CVBS Output
- 1 x BNC: Processed Output
Shipping Specifications
- Brand: TVLogic
- Itemcode: 2605.0357
- Bruto weight: 8.3
- Net weight: 5.35
- HS code: 8528529100 - Monitors
- Shipping dimensions: 56cm x 46cm x 29cm
- Supplier item code: TVL-SVM-130P
