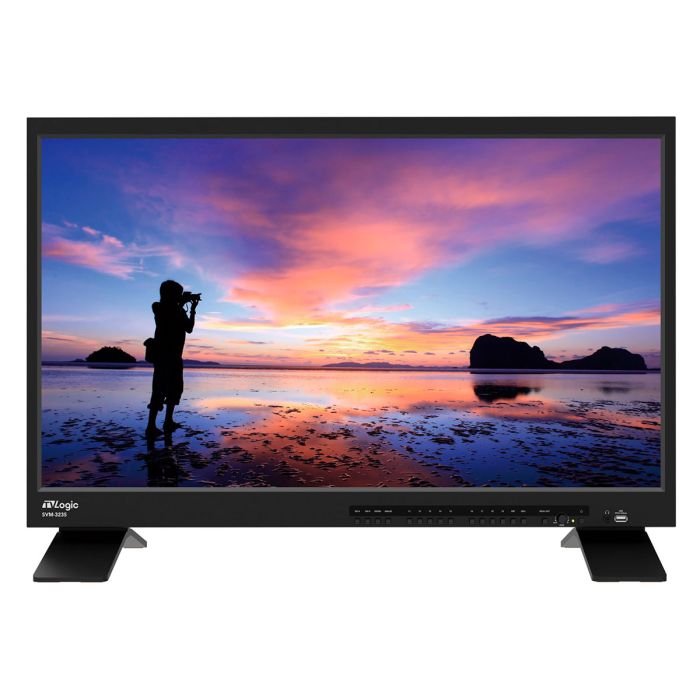

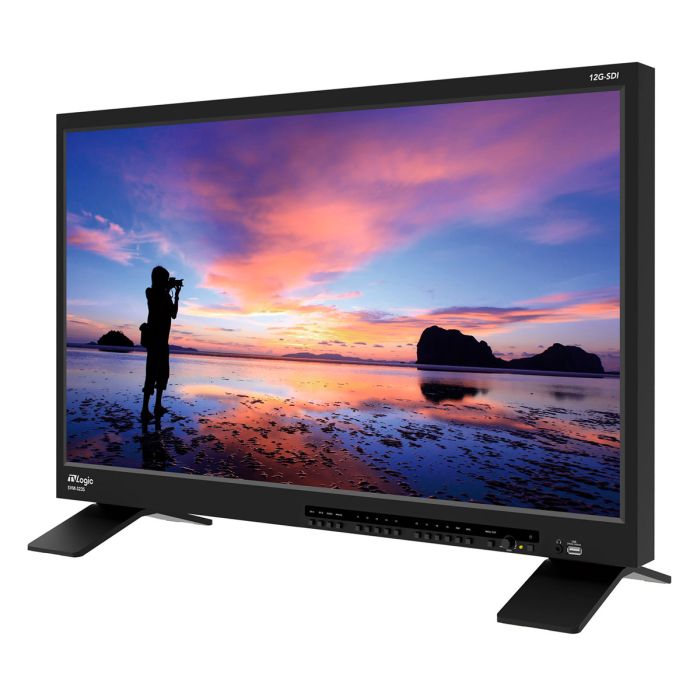

TV Logic SVM-323S : 32" 12G-SDI with FHD LCD Monitor
31.5" 12G-SDI with Full HD LCD Monitor, Display Resolution 1920 x 1080, Obit {l6.7M) Colors*, 2 x 12G-SDI Input and Loopout, Dual SFP Input, HDMI 1.4 Input
SKU: TVL-SVM-323S
The SVM-S is an 31.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days
These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs, Accurate Color Reproduction by 3D LUT. The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.
- 2 x 12G-SDI Input and Loopout
- 12G-SDI Input to 3G-SDI Downscale Output
- Processed Monitor Output
- Picture-by-Picture Display
- HDR (PQ, HLG, S-LOG3)
- Custom 3D LUT Import by USB Flash Drive
- Auto Detection of SDI Payload ID
- Image Capture & Overlay
- Waveform (YCbCr, RGB) / Vector Scope / Histogram
- Audio Level Meter / Audio Phase Meter
- Fast Mode
- Focus Assist / Marker
- Closed Caption in Multi Languages (CC-608, CC-708, OP47)
- Blue/Mono Only
- Timecode Display
- Remote Control & FW Update via Ethernet
- Dynamic UMD / Tally
- H Flip, V Flip
LCD Panel
- Size: 31.5”
- Resolution: 1920 x 1080 (16:9)
- Pixel Pitch: 0.363(H) x 0.363(V) mm
- Color Depth: 16.7M Colors
- Viewing Angle: 178°(H) / 178°(V)
- Brightness: 400cd/m2
- Contrast Ratio: 1200 : 1
- Display Area: 698(H) x 393(V) mm

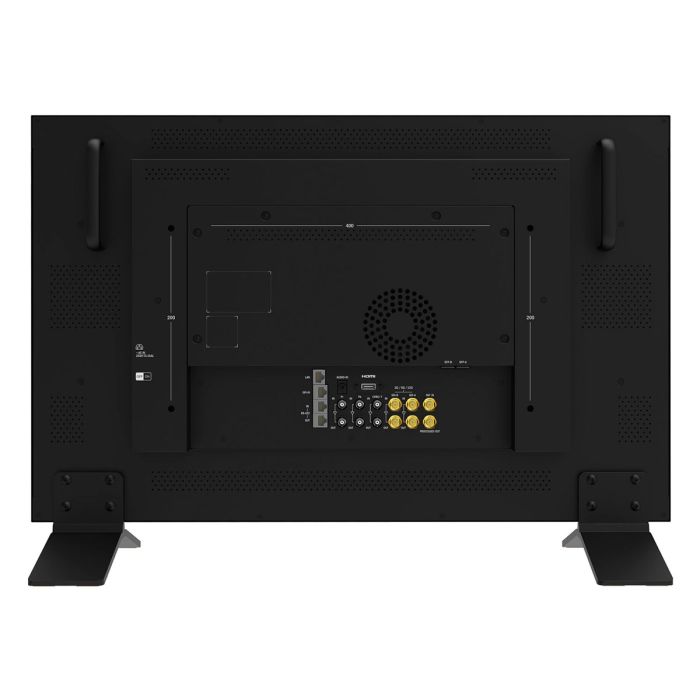

Input
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
- 3 x BNC: YPbPr, CVBS Input
- 1 x HDMI: HDMI Input
- 2 x SFP: SFP A/B Channel Input
- 1 x BNC: Reference Input
Output
- 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
- 3 x BNC: YPbPr, CVBS Output
- 1 x BNC: Processed Output
Shipping Specifications
- Brand: TVLogic
- Itemcode: 2605.0351
- Bruto weight: 15.5
- Net weight: 15
- HS code: 8528529100 - Monitors
- Shipping dimensions: 40cm x 35cm x 12cm
- Supplier item code: TVL-SVM-323S
