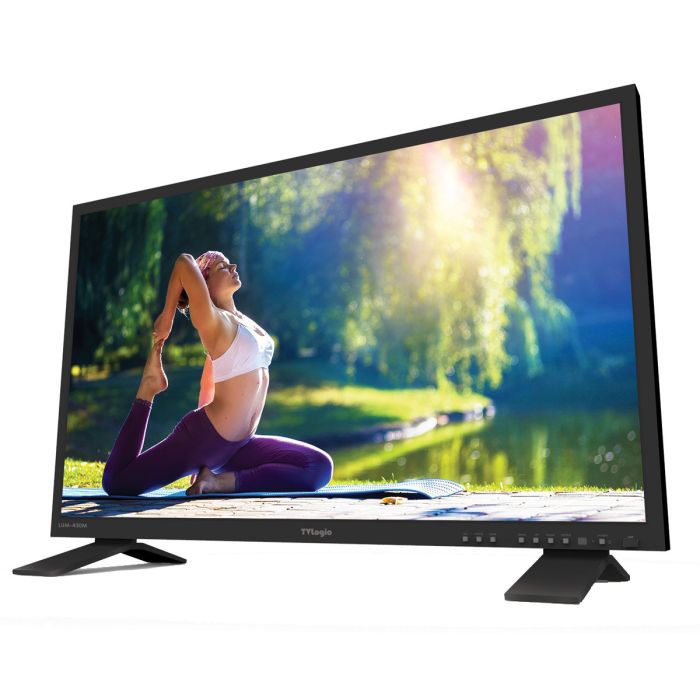

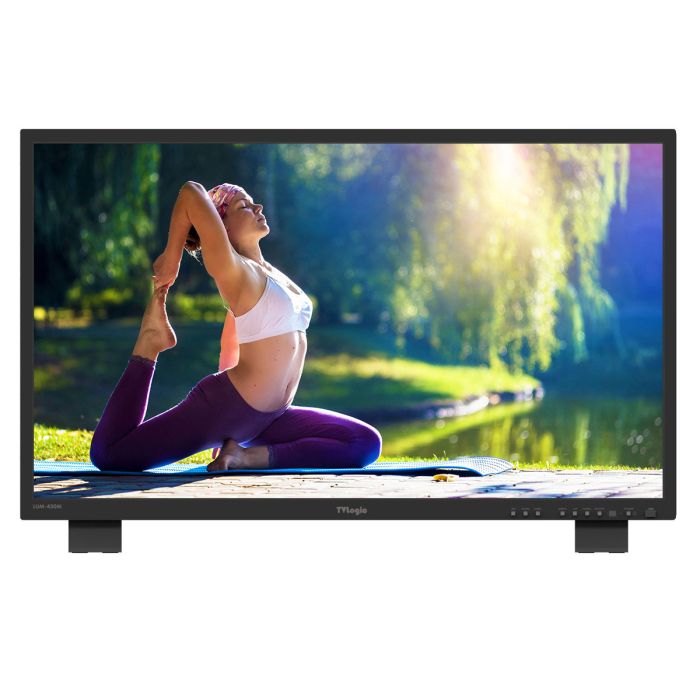

TV Logic LUM-430M2 43” 4K/UHD HDR Emulation Monitor
43" True UHD 4K Monitor : 3840 x 2160 10 bit LCD, 12-bit processing, 1000:1 contrast ratio, 2x12G-SDI (single link) , 2x6G-SDI, 4x3G-SDI (quad-link) and 1 x HDMI 2.0 inputs. 1 x 12G SDI out.
MPN: LUM-430M2 SKU: LUM-430M2
The LUM-430M2 is a 4K/UHD monitor with a 42.5" True UHD(3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and an HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 3-5 Days - please call for confirmed availability
TVLogic LUM-430M2 43" 4K/UHD HDR Emulation Monitor
The LUM-430M2 is a 4K/UHD monitor with a 42.5" True UHD(3840x2160) resolution and True 10-bit drivers.
It supports 12G/6G/3G-SDI inputs and a HDMI 2.0 input.
It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Time Code Display
Displays the Timecode information on the screen.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
HDR Emulation
The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.
- 10 bit colour depth that supports 1.07 billion colours
- Native UHD resolution (3840 x 2160)
- Colour gamuts covers up to DCI-P3
- Supports various professional features
- HDR EOTFs of PQ, HLG and SLog3
- Supports 12G/6G/3G/HD-SDI and HDMI 2.0 interfaces

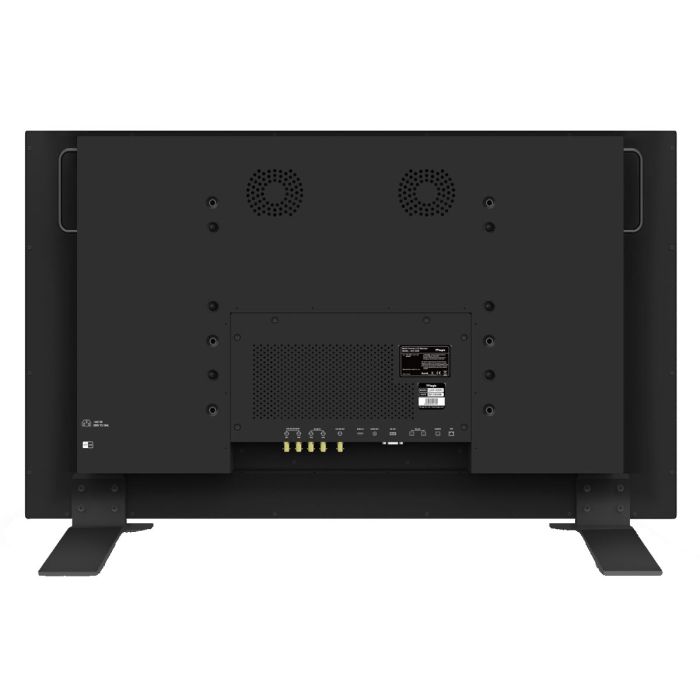

Input
- 4 x BNC: 12G/3G/HD/SD SDI Input 2Ch
- 3G/HD: SDI Input 2Ch
- 1 x HDMI: HDMI V2.0 Input 1Ch
Output
- 1 x BNC: 12G/3G/HD/SD SDI Output 1Ch
- (SDI A/B Selected channel output)
- 12G Mode : 3840x2160 60p/59.94p/50p
Input Signal
- 12G-SDI: 12Gb/s
- 6G-SDI: 6Gb/s
- 3G-SDI: 2.970Gb/s
- HD-SDI: 1.485Gb/s
- HDMI: 2160p/1080p/720p (HDMI 2.0)
SDI Input Signal Formats
- SMPTE ST2048-1: 4096x2160 (50~60p)
- SMPTE ST2082-10 Mode1: 3840x2160 60p/59.94p/50p (12G-SDI x 2Ch)
- SMPTE ST2081-10 Mode1: 3840x2160 30p/29.97p/25p/24p*/23.98p* (6G-SDI x 2Ch)
- SMPTE ST425-5: 3840x2160 60p/59.94p/50p (3G-SDI x 4Ch)
- SMPTE ST274: 3840x2160 30p/29.97p/25p/24p*/23.98p* (HD-SDI x 4Ch)
- SMPTE ST425:
- 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A)
- 1920x1080 60i/59.94i/50i (3G-SDI LEVEL A)
- 1920x1080 30p/29.97p/25p/24p*/23.98p* (3G-SDI LEVEL B)
- 1280x720 60p/59.94p/50p (3G-SDI LEVEL B)
- SMPTE ST2048-1:2110: 2048x1080 23.98p/24p/25p/29.97p/30p
- SMPTE 274M:
- 1920x1080 30p/29.97p/25p/24p*/23.98p*
- 1920x1080 60i/59.94i/50i
- SMPTE-296M: 1280x720 60p/59.94p/50p
- SMPTE-259M: 720x487 59.94i / 720x576 50i * 24P/23.97P : 60p/59.94p Frame-rate Converted Display
HDMI Input Signal Formats
- HDMI 2.0: 3840x2160 60p/59.94p/50p
- HDMI 1.4: 3840x2160 30p/29.97p/25p/24p*/23.98p*
- HDMI 1.2:
- 1920x1080 60p/59.94p/50p/30p/29.97p/ 25p/24p*/23.98p*
- 1920x1080 60i/59.94i/50i
- 1280x720 60p/59.94p/50p
- Audio In: SDI Embedded Audio (Group, Ch Selectable)
- Audio Out: External Output Port (3.5m Phone Jack)
- Power: 100~240V, 1.3~0.6A/ 50/60Hz
- Power Consumption (Approx.): 96Watts (Max.)
- Operating Temperature: 0°C to 40°C (32°F to 104°F )
- Storage Temperature: -20°C to 60°C (-4°F to 140°F )
- Basic Accessory: AC Power Cable / IR Remote / Stand
- AC Power Cable
- IR Remote
- Stand
