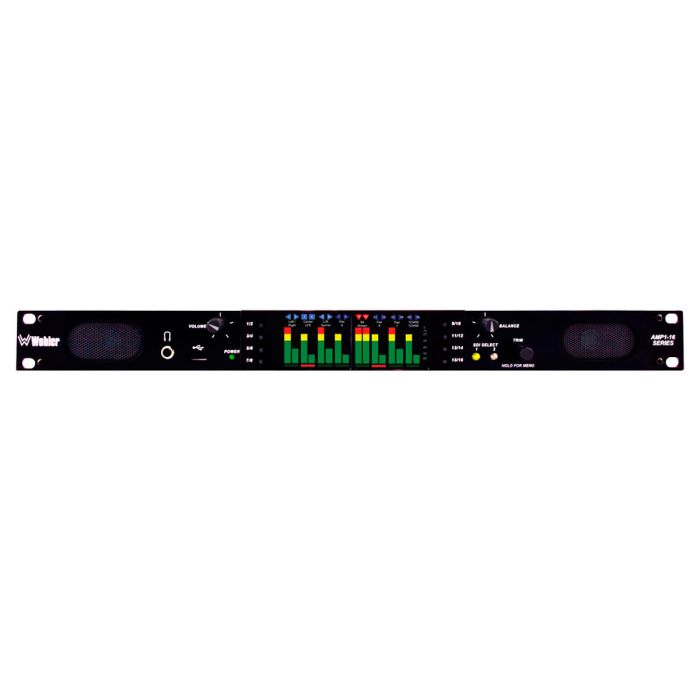

Wohler AMP1-16-M Audio Monitor

16 Channel, Dual Input 3G/HD/SD-SDI Audio Monitor

MPN: WOHLER-AMP1-16-M SKU: WOHLER-AMP1-16-M

$3,329.17

Dual input 3G/HD/SD-SDI Audio Monitor with 16 channel metering. 1RU.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Please call for lead time

The AMP1-16-M offers fast, intuitive operation for monitoring SDI audio in the most demanding production applications. Whether in the studio or on the road, the AMP1-16M provides instantaneous selection and summing of any grouping of SDI audio pairs. It features adjustable volume and balance controls, clear display of levels, and phase indications on bright 2.4″ LED-backlit LCD displays, with configurations that can be created, saved and recalled via Ethernet connection using an intuitive PC interface.

Simultaneous level metering of 16 de-embedded audio channels from SDI
High resolution metering with 166-segment displays
Quick, intuitive push-button selection of any pairs to sum to monitor
Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
Stereo or mono monitoring
Stereo phase indicators
Adjustable Volume, Balance
Adjustable Channel Trim
Easy update and management software for PCs
Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
Automatic frame rate detection and selection
Totally digital system architecture with high fidelity Class D amp
Selectable line level or front panel volume control and outputs
Shallow chassis depth for easy installation in OB vehicles and consoles

Signal I/O

3G/HD/SD-SDI Input: 2 x 3G/HD/SD-SDI inputs on BNC
3G/HD/SD-SDI Output: 2 x Looped 3G/HD/SD-SDI on BNC; 1 x Selected 3G/HD/SD-SDI on BNC
Analog Output: 2 x XLR of audio to speakers
Data Ports: 1 USB 2.0 Port for copying system configurations to another unit or to a PC; 1 Ethernet port used for updating software & firmware as well as copying/customizing/loading custom configurations

Audio Specifications

Frequency Response: 150 Hz to 16 kHz (+/- 5 dB)
Hum and Noise: Better than -68 dB below full output
Meter Dynamics: Configurable up to simultaneous VU & PPM
Meter Scale: Configurable up to simultaneous VU & PPM
Peak Acoustic Output @ 2 feet: 90 dB SPL at 2 feet
Power Output: RMS Each Side: 6W Continuous/12W Peak

Video Specifications

Diagonal Display Size: 2.4 Inch
Display Modes: LCD
Display Resolution (HxV): 320 x 240
Display Type: LCD
Number of screens: 2

Features

Level Meters: On-Screen for up to 16 Channels and 166 segments
Audio Channels (max): 16
Phase: Yes
Presets: Yes

Interfacing

Front Panel Controls: Volume Encoder; Balance Encoder; 8 Channel Pair/Menu Navigation Selection Butttons; Trim/Menu Encoder;2 SDI 1 and SDI2 Select Buttons; On Screen Meters Display/Menu Display
Headphone Jack: Yes
USB Port: Yes

Physical

Rack Height: 1RU
Dimension Width: 19.0" (483mm)
Dimension Height: 1.75" (45mm)
Dimension Depth: 4.5" (115mm)
Speakers: Yes
Net Weight: 5.0 lbs (2.3 kg)
Shipping Weight: 7.0 lbs (3.2 kg)
Power Consumption: 60 Watts
Power Supply: Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
