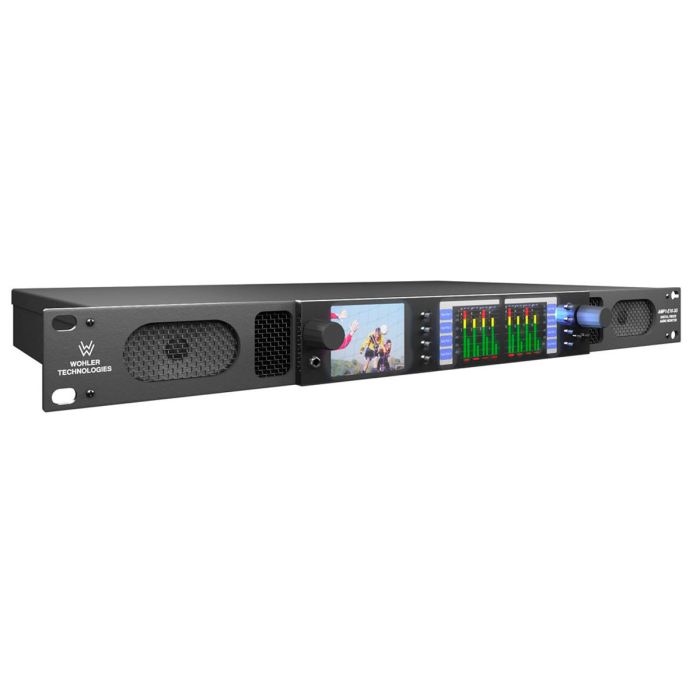

Wohler AMP1-E16V-MD Dual Input Video Monitor

16 Channel Dual Input, 3G/HD/SD-SDI, AES, Analog Audio w/Video Monitor

MPN: WOHLER-AMP1-E16V-MD SKU: WOHLER-AMP1-E16V-MD-1

$6,211.80

16 Channel Dual Input, 3G/HD/SD-SDI, AES, Analog Audio w/Video Monitor. Dolby¨ D/E/DD+. 1RU.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Please call for lead time

The AMP1-16 Series monitors represent leading edge technology and features. The audio fidelity of our most popular models have been improved with a Class-D digital amplifier system to drive the integrated midrange and low frequency speaker drivers. These units monitor 16 channels of embedded 3G/HD/SD-SDI and AES audio, while the AMP1-E16V-MD includes Dolby D and Dolby E capability. All channels can be selected for simultaneous display and concurrently monitored on an innovative OLED screen that is easily user configured for bar graph meter look, scale, and ballistics. All popular scales are available on screen, at the touch of a button. You can route any selected signal to either the left or right, or both speakers for stereo or mono applications.

BENEFITS:

The AMP1-16 Series monitors are truly flexible systems. Integrate one and benefit from the rich feature set.
Three colour LCDs not only allow you to customize colours for easy monitoring, but also display up to 16 bar graph level meters simultaneously. The third screen displays video, audio metadata or help text.
At only 1RU it gives you the power of several units with the simplicity of a single package.
Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
Each displayed meter can feature stereo phase indication, user-defined channel labeling, and selectable scales and ballistics, such as AES, BBC, and Nordic. A custom setting allows user-defined limits and colours.

All 16 channels of audio visually monitored on 16 level meters displayed in two LCD screens.
Monitoring for up to 16 channels of embedded audio in a single, multi-rate 3G/HD/SD-SDI signal.
Totally digital system architecture with high-fidelity class D amplifier
Video de-embedded from 3G/HD/SD-SDI displayed on the third screen
Stereo or mono monitoring assignment to speakers
Analog and digital surround sound system outputs, controllable from the front panel volume control
Includes demux outputs for 8AES pairs on unbalanced on 2 HD15 connectors
Create and store 8 user-defined operation configurations
Stereo phase indicator for stereo pairs
Includes ouputs for 8 analog channels on a balanced DB-25
Re-clocked output of 3G/HD/SD-SDI and 3G to HD and HD to SD signal down conversion output

Signal I/O

3G/HD/SD-SDI Input: 2
3G/HD/SD-SDI Output: 1
AES3 Input: 8
AES3 Output: 2 Groups of 4 Unbalanced AES Output from AES Inputs on 2 ea DB-15
Analog Output: 8 on DB-25
Dolby AC-3 Input: Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby D Input: Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby DD+ Input: Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby E Input: Enables decoding and monitoring of Dolby D, DD+, and E Streams
Data Ports: Ethernet & Serial Port for system software upgrades; 1 port used for metadata I/O; GPI/O on DB-25 to replicate action of the hot keys on the front panel

Audio Specifications

AES Input Sampling Rate: 32-48 kHz, Auto-Detecting
Frequency Response: 80 Hz - 20 kHz (+/-5 dB); (-10 dB @ 50 Hz, 22 kHz)
Hum and Noise: Better than -68 dB below full output
Meter Dynamics: Configurable up to simultaneous VU & PPM
Meter Scale: Configurable up to simultaneous VU & PPM
Peak Acoustic Output @ 2 feet: 98 dB SPL @ 2 ft
Power Output: RMS Each Side: 5W Continuous/10W Peak;RMS Bass: 4W Continuous/17W Peak

Video Specifications

Contrast: 10000:1
Diagonal Display Size: 2.4 Inch
Display Modes: LCD
Display Resolution (HxV): 320 x 240
Display Type: LCD
Luminance: 200 cd/m^2
Native Aspect: 4:03
Number of screens: 1
Pixel Response: <50 ms
Viewing Angle: 170 (H) x 170 (V)

Features

Level Meters: On-Screen for up to 16 Channels and 180 segments
Audio Channels (max): 16
Phase: Yes
Audio Mixing: Yes
Audio Re-Embedding: Yes
Dolby Metadata: Yes
Presets: Yes
Logging: Yes

Interfacing

Front Panel Controls: Volume/Mute Encoder; Balance/Menu Encoder; 8 Hot Key/Menu Selection Buttons, 2 Menu Navigation Buttons; On Screen Meters Display/Menu Display
Headphone Jack: Yes
USB Port: No

Physical

Rack Height: 1RU
Dimension Width: 19.0" (483mm)
Dimension Height: 1.75" (45mm)
Dimension Depth: 11.0" (280mm)
Speakers: Yes
Net Weight: 18.0 lbs (8.2 kg)
Shipping Weight: 15.0 lbs (6.8 kg)
Power Consumption: 65 Watts
Power Supply: Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
