Wohler iAM-AUDIO-1 Multi-Channel Audio Monitor

Versatile Audio Monitoring from Multiple Sources with Touch Screen Control and Graphical Metering

MPN: WOHLER-iAM-AUDIO-1 SKU: WOHLER-iAM-AUDIO-1

$4,195.80

1RU Versatile Audio Monitoring and Metering with unique touch screen. Includes OPT-ANLG only.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Please call for lead time

Flexible. Adaptable. Future Proof.

iAM-AUDIO is designed to be easy to operate, yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM.

High-quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus. Physical front panel controls provide access to main and auxiliary volume controls to supplement touch controls, balance control and a front mounting USB port for software updates. iAM-AUDIO can be software upgraded to support new and emerging technologies and is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals

All iAM Series monitors are built with an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

Touch screen front panel for easy, intuitive control
Monitor up to 16 channels of audio from multiple sources
Built-in speakers, headphone jack, USB and Ethernet ports
A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
Store and retrieve presets via USB or remote software control
Software upgradeable via USB or network, upgrade multiple units at once
APIs included for remote control

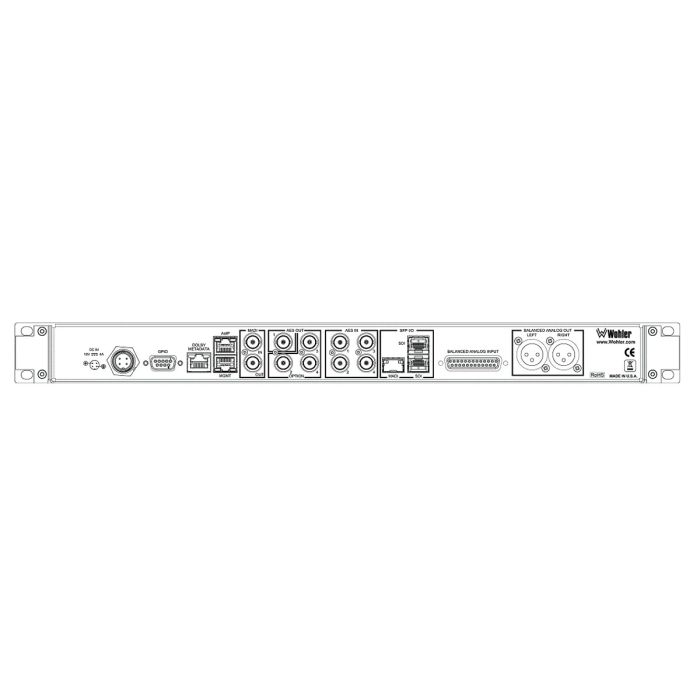

Signal I/O

3G/HD/SD-SDI Input: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
3G/HD/SD-SDI Output: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
AES3 Input: OPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC
AES3 Output: 1 AES output pair on BNC of mix to speakers
Analog Input: OPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD
Analog Output: 2 on XLR of mix to speakers
Dolby AC-3 Input: OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby D Input: OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby DD+ Input: OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby E Input: OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
MADI Input: Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI Output: Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber Input: SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
AES67 Input: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 compliant input streams.
Dante Input: OPT-DANTE (829078): Enables decoding and monitoring of Dante input streams.
Ravenna Input: OPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams.
SMPTE 2022 Input: SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key

Audio Specs

AES Input Sampling Rate: 48 kHZ
Analog Input Impedance: 40k Ohms balanced
Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise: Better than -68 dB below full output
Meter Dynamics: Simultaneous VU & PPM
Meter Scale: Simultaneous VU & PPM
Peak Acoustic Output @ 2 feet: 98 dB SPL @ 2ft
Power Output: RMS Each Side: 12W Continuous/24W Peak

Video Specifications

Diagonal Display Size: 2.4" (60 mm)
Display Resolution (HxV): 320Hx240V
Display Type: LCD Touchscreen
Number of screens: 3 Graphics

Features

Level Meters: On-Screen for up to 16 Channels
Audio Channels (max): 16
Audio Mixing: Yes
Dolby Metadata: Available with OPT-DOLBY processing option
Presets: Yes

Interfacing

Front Panel Controls: Volume Encoder; Balance Encoder; On Screen Touch Display
Remote User Interface: Yes
Touchscreen: Yes
Headphone Jack: Yes
Ethernet GbE: Yes
USB Port: Yes
SFP Cage: Yes, 2 + 1

Physical

Rack Height: 1RU
Dimension Width: 19.0" (483mm)
Dimension Height: 1.75" (45mm)
Dimension Depth: 7.25" (184mm)
Speakers: Yes
Net Weight: 4.5 lbs. (2.0 kg)
Shipping Weight: 6.5 lbs (2.9 kg)
Power Consumption: 30 Watts typical
Power Supply: External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.
Additional Options: Available API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
