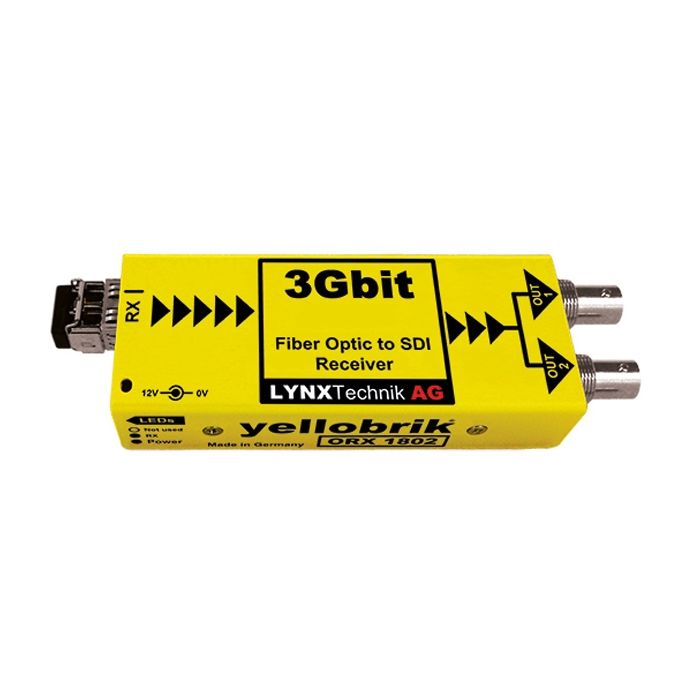

Lynx Technik yellobrik ORX-1802 ST

3Gbit Fiber Optic to SDI Receiver ST Singlemode)

MPN: ORX-1802-ST SKU: ORX-1802-ST

$474.17

The ORX 1802 is a compact fiber to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The ORX 1802 is a compact fiber to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

When paired with the fiber optic to SDI transmitters (e.g. yellobrik OTX 1812 or OTX 1842) you have a very cost effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

The OTX 1812 provides 2 SDI outputs and support for LC, ST or SC singlemode fiber connections as well as an LC version suitable for multimode fiber.

The ORX 1802 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI fiber source and convert to an electrical signal. The module is fully compatible with 3Gbit Level A and Level B formats.

  • Supports SDI video inputs up to 3Gbit/s (1080p60)
  • 3Gbit Level A and Level B support (all formats)
  • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
  • 2 x SDI outputs
  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Input range 1260nm to 1620nm (singlemode)
  • Input range 780nm to 880nm (multimode)
  • Supports hot swapping and hot plugging

Fiber Input singlemode

  • 1 x fiber optic Input
  • LC, ST or SC connection
  • SMPTE 297M - 2006
  • Input range (wavelength) 1260nm to 1620nm
  • RX sensitivity -3dBm to -18dBm
  • RX active LED on side of module


Fiber Input multimode

  • 1 x Fiber Optic Input LC Connection
  • SMPTE 297M - 2006
  • Input range (wavelength) 780nm to 880nm
  • RX sensitivity 0dBm to -15dBm
  • RX active LED on side of module


SDI Output

  • 2 x SDI video on 75 Ohm BNC connectors
  • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
  • Multi-standard operation from 270Mbit/s to 3Gbit/s
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz


Power

  • +12VDC @ 1.3W nominal - ( supports 7 - 16VDC input range )


Physical

  • Size: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”) including connectors
  • Weight: 125g (4.4oz)


Ambient

  • 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
  • Module
  • AC power supply
