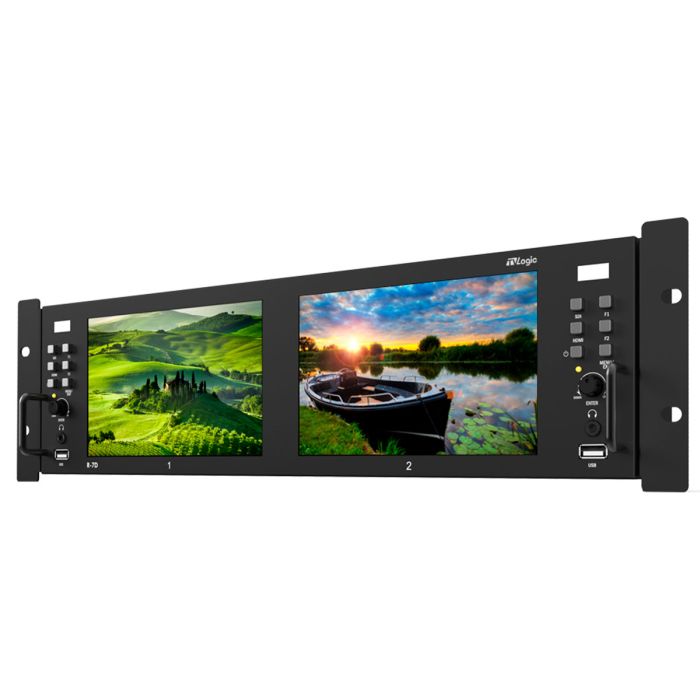

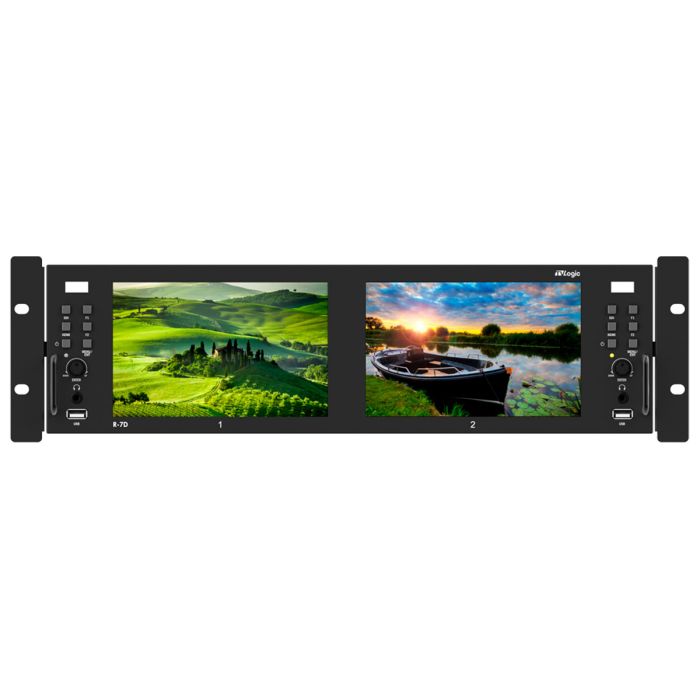

TV Logic R-7D: 12G-SDI Supported Dual 7

• 2 × 7” Full HD LCD Screen
• 12G/6G/3G-SDI Input & Output
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Marker
• Dynamic UMD
• Timecode Display
• Luma(Y’) Zone Check
• Focus Assist
• 1:1 Scan / Zoom
• Blue/Mono Only
• Luma(Y") Zone Check
• H/V Delay
• Tally

LCD

• Size: 7.02"
• Resolution: 1920x 1200 (16:10)
• Pixel Pitch: 0.07875(W) x0.07875(H) mm
• Color Depth: 16.7M (True)
• Viewing Angle (typ.): 160°(H) / 160°V)
• Luminance of white: 500 cd/m2 (Center)
• Contrast Ratio: 1200:1
• Display Area: 151.2(H) x 94.5(V) mm

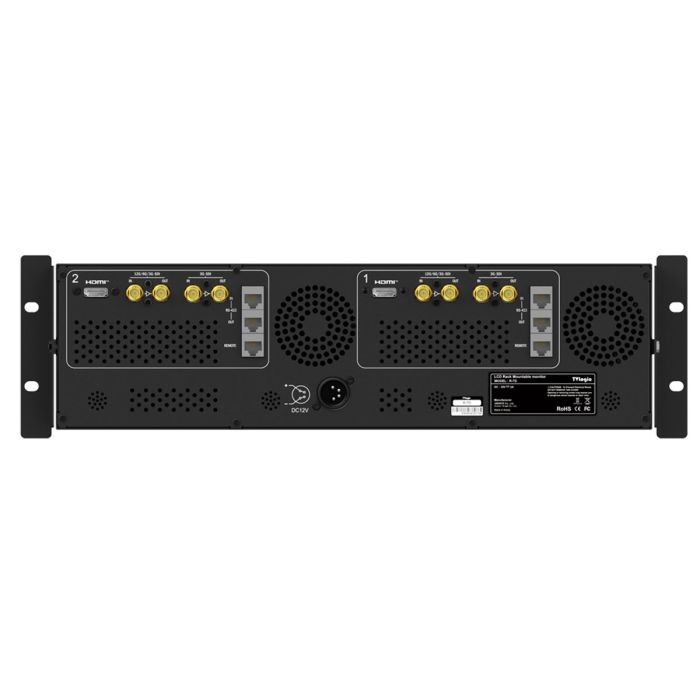

Input Connector

• 1 X HDMI: HDMI Input
• 1 X BNC: 3G-SDI
• 1 X BNC: 12G-SDI
• 2 x RJ45: RS-422

Output

• 1 x BNC: 3G-SDI OUT (Passive Through Out)
• 1 x BNC: 3G-SDI OUT (Passive Through Out)
• 1 x RJ45: RS-422

Input Signal

• 12G-SDI: 11.88Gb/s
• 6G-SDI: 5.94Gb/s
• 3G-SDI: 2.970Gbps
• HD-SDI: 1.485Gbps
• HDMI: 1080p(60/59.94/50/30/25/24/23.98)/1080i(60/59.94/50/720p(60/50)/480i (60)/480p(60)/576(50)/576p(50)

SDI Input Signal Formats

• SMPTE ST 2082: 2160p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.975F/25sF/24sF/23.985F)
  2160i (60/59.94/50)
• SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98SF)
  1080i (60/59.94/50)
• SMPTE-274M: 1080i (60/59.94/50)
  1080p (30/29.97/25/24/24SF/23.98/23.985F)
• SMPTE-296M: 720p(60/59.94.50/30/29.97/25/24/23.98)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

• Audio In: Embedded Audio
• Audio Out: Speaker
• Power: DC 12V/1.85A
• Power Consumption (Approx.): 22 Watts
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Main Body Dimensions (mm/inch): 430 X 120 X 50.5 (16.93 X 4.72 X 1.99)
• Main Body Dimensions with RMK (mm/inch): 480.8 X 132 X 73 (18.92 X 5.19 X 2.87)
• Box Dimensions: 555 X 165 X 230 (21.85 X 6.50 X 9.06)
• Weight: 2.46Kg / 5.42lbs
• Basic Accessories: DC Power adapter, Rack Mountable Kit
